android - scrollView和listview滑动冲突

问题描述

在scrollview内嵌套了一个viewpager，重写了scrollview的onInterceptTouchEvent()方法，但是我写的没有什么效果，最近刚刚接触这个滑动冲突不能很好理解。

public class ScrollViewX extends ScrollView { private static final String TAG = 'ScrollViewX'; private ViewPager mViewPager; private int mLastXIntercepted = 0; private int mLastYIntercepted = 0; public ScrollViewX(Context context) {super(context); } public ScrollViewX(Context context, AttributeSet attrs) {super(context, attrs); } public ScrollViewX(Context context, AttributeSet attrs, int defStyleAttr) {super(context, attrs, defStyleAttr); } @Override public boolean onInterceptTouchEvent(MotionEvent ev) {boolean intercepted = false;int x = (int) ev.getX();int y = (int) ev.getY();int deltaX = x - mLastXIntercepted;int deltaY = y - mLastYIntercepted;mLastXIntercepted = x;mLastYIntercepted = y;switch (ev.getAction()) { case MotionEvent.ACTION_DOWN: {//action_down不拦截intercepted = false;break; } case MotionEvent.ACTION_MOVE: {if(mViewPager != null && isTouchInView(mViewPager, ev)){ //点击事件发生在viewpager范围内 if(Math.abs(deltaY) > Math.abs(deltaX)) {//如果竖直方向的滑动距离大于横向， 那么scrollview拦截intercepted = true; } else {intercepted = false; }} else { intercepted = false;}break; } case MotionEvent.ACTION_UP: {intercepted = false;break; } default: break;}return intercepted; } //判断点击事件是否在当前view中 private boolean isTouchInView(View view, MotionEvent event) {int x = (int) event.getRawX();int y = (int) event.getRawY();int[] local = new int[2];view.getLocationOnScreen(local);int subVX = local[0];int subVY = local[1];int subWidth = view.getWidth();int subHeight = view.getHeight();if(x > subVX && x < subVX + subWidth && y > subVY && y < subVY + subHeight) { return true;}return false; } public void setViewPager(ViewPager viewPager) {mViewPager = viewPager; }}

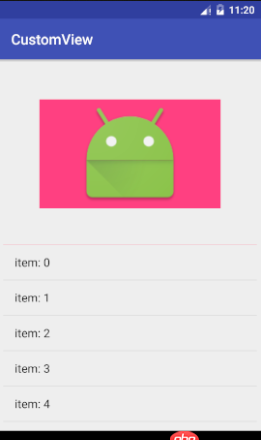

我在红色部分左右滑动viewpager能够正常，但是在viewpager中竖直滑动就不能滚动scrollview，但是我觉得我在scrollview的onInterceptTouchEvent()方法中已经判断了，但是最终却没有效果。

感谢采纳的那位，根据他的提示， 我顺便解决了listview的滑动冲突。 现在使用外部拦截法: 重写ScrollView 的 onInterceptedTouchEvent() 方法,

public class ScrollViewX extends ScrollView { private static final String TAG = 'ScrollViewX'; private ListViewX mListViewX; private ViewPager mViewPager; private int mLastX = 0; private int mLastY = 0; public ScrollViewX(Context context) {super(context); } public ScrollViewX(Context context, AttributeSet attrs) {super(context, attrs); } public ScrollViewX(Context context, AttributeSet attrs, int defStyleAttr) {super(context, attrs, defStyleAttr); } @Override public boolean onInterceptTouchEvent(MotionEvent ev) {boolean intercepted = false;int x = (int) ev.getX();int y = (int) ev.getY();int deltaX = x - mLastX;int deltaY = y - mLastY;Log.i(TAG, 'deltaY = ' + deltaY);mLastX = x;mLastY = y;switch (ev.getAction()) { case MotionEvent.ACTION_DOWN: {return super.onInterceptTouchEvent(ev); } case MotionEvent.ACTION_MOVE: {if(mViewPager != null && isTouchInView(mViewPager, ev)){ //点击事件发生在viewpager范围内 if(Math.abs(deltaY) > Math.abs(deltaX)) {//如果竖直方向的滑动距离大于横向， 那么scrollview拦截return true; } else {return super.onInterceptTouchEvent(ev); }} else if(mListViewX != null && isTouchInView(mListViewX, ev)) { if(atTopOrEnd(deltaY)) {return true; } else {return false; }} else { return super.onInterceptTouchEvent(ev);} } case MotionEvent.ACTION_UP: {return super.onInterceptTouchEvent(ev); } default:break;}return super.onInterceptTouchEvent(ev); } //如果listView滑到顶端时当前事件向上滑动，需要scrollview接管， 在底端时类似。 private boolean atTopOrEnd(int len) {int count = mListViewX.getCount();int topId = mListViewX.getFirstVisiblePosition();int endId = mListViewX.getLastVisiblePosition();if((endId == count - 1 && len < 0)) { View lastView = mListViewX.getChildAt(mListViewX.getChildCount() - 1); if(lastView.getBottom() == mListViewX.getHeight()) {return true; }}if(topId == 0 && len > 0) { View firstView = mListViewX.getChildAt(topId); if(firstView.getTop() == 0) {return true; }}return false; } //判断点击事件是否在当前view中 private boolean isTouchInView(View view, MotionEvent event) {int x = (int) event.getRawX();int y = (int) event.getRawY();int[] local = new int[2];view.getLocationOnScreen(local);int subVX = local[0];int subVY = local[1];int subWidth = view.getWidth();int subHeight = view.getHeight();if(x > subVX && x < subVX + subWidth && y > subVY && y < subVY + subHeight) { return true;}return false; } public void setListViewX(ListViewX listViewX) {mListViewX = listViewX; } public void setViewPager(ViewPager viewPager) {mViewPager = viewPager; }}

采用内部拦截法: 重写listview 的 dispatchTouchEvent() 方法

public class ListViewX extends ListView { private static final String TAG = 'ListViewX'; private int mLastX = 0; private int mLastY = 0; public ListViewX(Context context) {super(context); } public ListViewX(Context context, AttributeSet attrs) {super(context, attrs); } public ListViewX(Context context, AttributeSet attrs, int defStyleAttr) {super(context, attrs, defStyleAttr); } //ListView 在 ScrollView中显示需要处理 @Override protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {int widthMode = MeasureSpec.getMode(widthMeasureSpec);int widthSize = MeasureSpec.getSize(widthMeasureSpec);int heightMode = MeasureSpec.getMode(heightMeasureSpec);int heightSize = MeasureSpec.getSize(heightMeasureSpec);int width;int height;if(widthMode == MeasureSpec.AT_MOST && heightMode == MeasureSpec.AT_MOST) { width = MeasureSpec.makeMeasureSpec(500, MeasureSpec.AT_MOST); height = MeasureSpec.makeMeasureSpec(500, MeasureSpec.AT_MOST);} else if(widthMode == MeasureSpec.AT_MOST) { width = MeasureSpec.makeMeasureSpec(500, MeasureSpec.AT_MOST); height = heightMeasureSpec;} else if(heightMode == MeasureSpec.AT_MOST) { width = widthMeasureSpec; height = MeasureSpec.makeMeasureSpec(500, MeasureSpec.AT_MOST);} else { width = widthMeasureSpec; height = heightMeasureSpec;}super.onMeasure(width, height); } //requestDisallowInterceptTouchEvent参数为false表示父容器拦截 @Override public boolean dispatchTouchEvent(MotionEvent ev) {int x = (int) ev.getX();int y = (int) ev.getY();switch (ev.getAction()) { case MotionEvent.ACTION_DOWN: {//父容器不拦截getParent().requestDisallowInterceptTouchEvent(true);break; } case MotionEvent.ACTION_MOVE: {int deltaX = x - mLastX;int deltaY = y - mLastY;if(atTopOrEnd(deltaY)) { getParent().requestDisallowInterceptTouchEvent(false);}break; } case MotionEvent.ACTION_UP: {break; } default:break;}mLastX = x;mLastY = y;return super.dispatchTouchEvent(ev); } //如果listView滑到顶端时当前事件向上滑动，需要scrollview接管， 在底端时类似。 private boolean atTopOrEnd(int len) {int count = getCount();int topId = getFirstVisiblePosition();int endId = getLastVisiblePosition();if((endId == count - 1 && len < 0)) { View lastView = getChildAt(getChildCount() - 1); if(lastView.getBottom() == getHeight()) {return true; }}if(topId == 0 && len > 0) { View firstView = getChildAt(topId); if(firstView.getTop() == 0) {return true; }}return false; }}

问题解答

因为ViewPager的onTouch事件已经“吃掉”了手势，你可以重写ViewPager的onTouch事件，假如手势是竖直方向的移动，return false

要重写listview的测量子Item的宽高的方法，你这个网上搜一下很多的
