java+opencv实现人脸识别功能

背景：最近需要用到人脸识别，但又不花钱使用现有的第三方人脸识别接口，为此使用opencv结合java进行人脸识别（ps:opencv是开源的，使用它来做人脸识别存在一定的误差，效果一般）。

1.安装opencv官网地址：https://opencv.org/ , 由于官网下载速度是真的慢

百度网盘：

链接: https://pan.baidu.com/s/1RpsP-I7v8pP2dkqALDw7FQ

提取码: pq7v

如果是官网下载，就无脑安装就行了，安装完毕后。

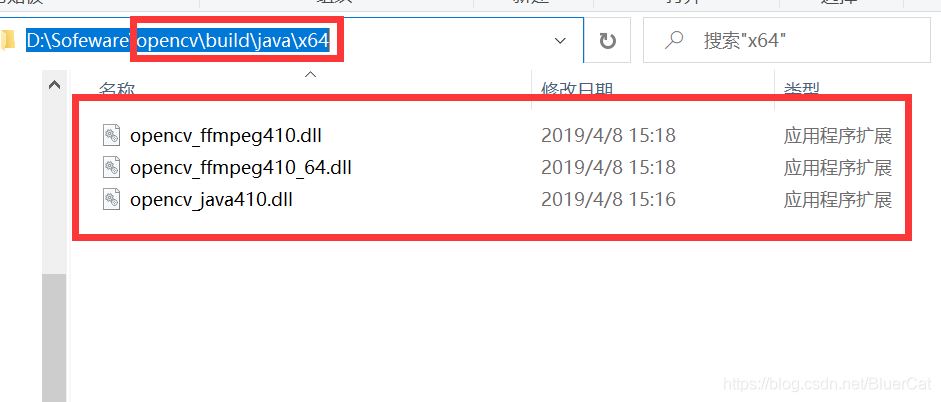

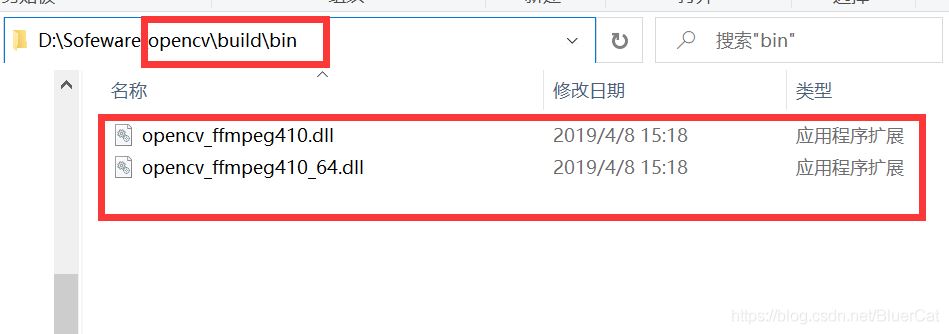

将图一的两个文件复制到图二中。

从我网盘下载的，忽略这些。

2.在项目中引入pom依赖

<!-- opencv + javacv + ffmpeg--><dependency> <groupId>org.bytedeco.javacpp-presets</groupId> <artifactId>ffmpeg</artifactId> <version>4.1-1.4.4</version></dependency><dependency> <groupId>org.bytedeco</groupId> <artifactId>javacv</artifactId> <version>1.4.4</version></dependency><!-- https://mvnrepository.com/artifact/org.bytedeco.javacpp-presets/ffmpeg-platform --><dependency> <groupId>org.bytedeco.javacpp-presets</groupId> <artifactId>ffmpeg-platform</artifactId> <version>4.1-1.4.4</version></dependency><!-- 视频摄像头 --><!-- https://mvnrepository.com/artifact/org.bytedeco/javacv-platform --><dependency> <groupId>org.bytedeco</groupId> <artifactId>javacv-platform</artifactId> <version>1.4.4</version></dependency><!-- https://mvnrepository.com/artifact/org.bytedeco.javacpp-presets/opencv-platform --><dependency> <groupId>org.bytedeco.javacpp-presets</groupId> <artifactId>opencv-platform</artifactId> <version>4.0.1-1.4.4</version></dependency>

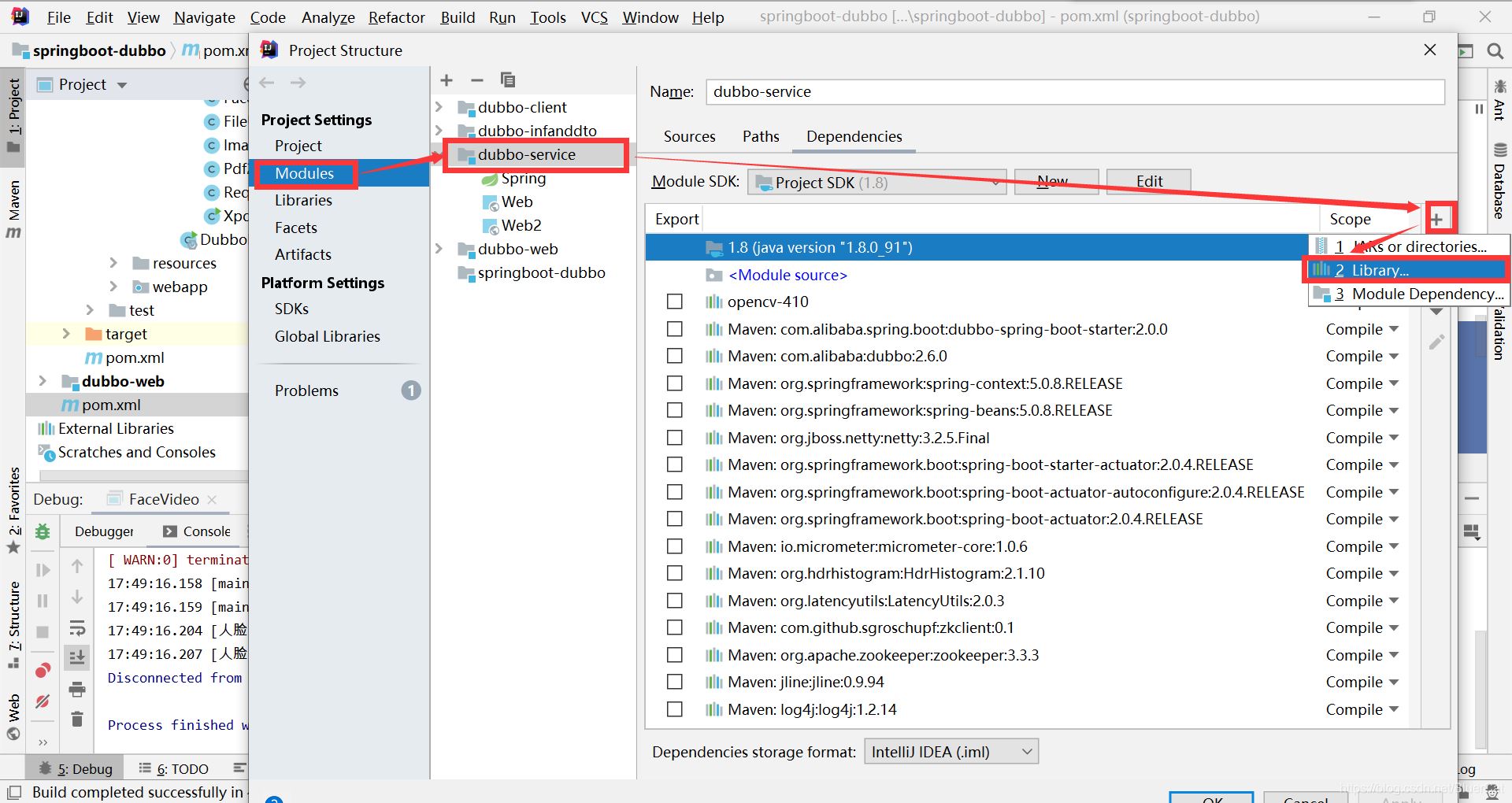

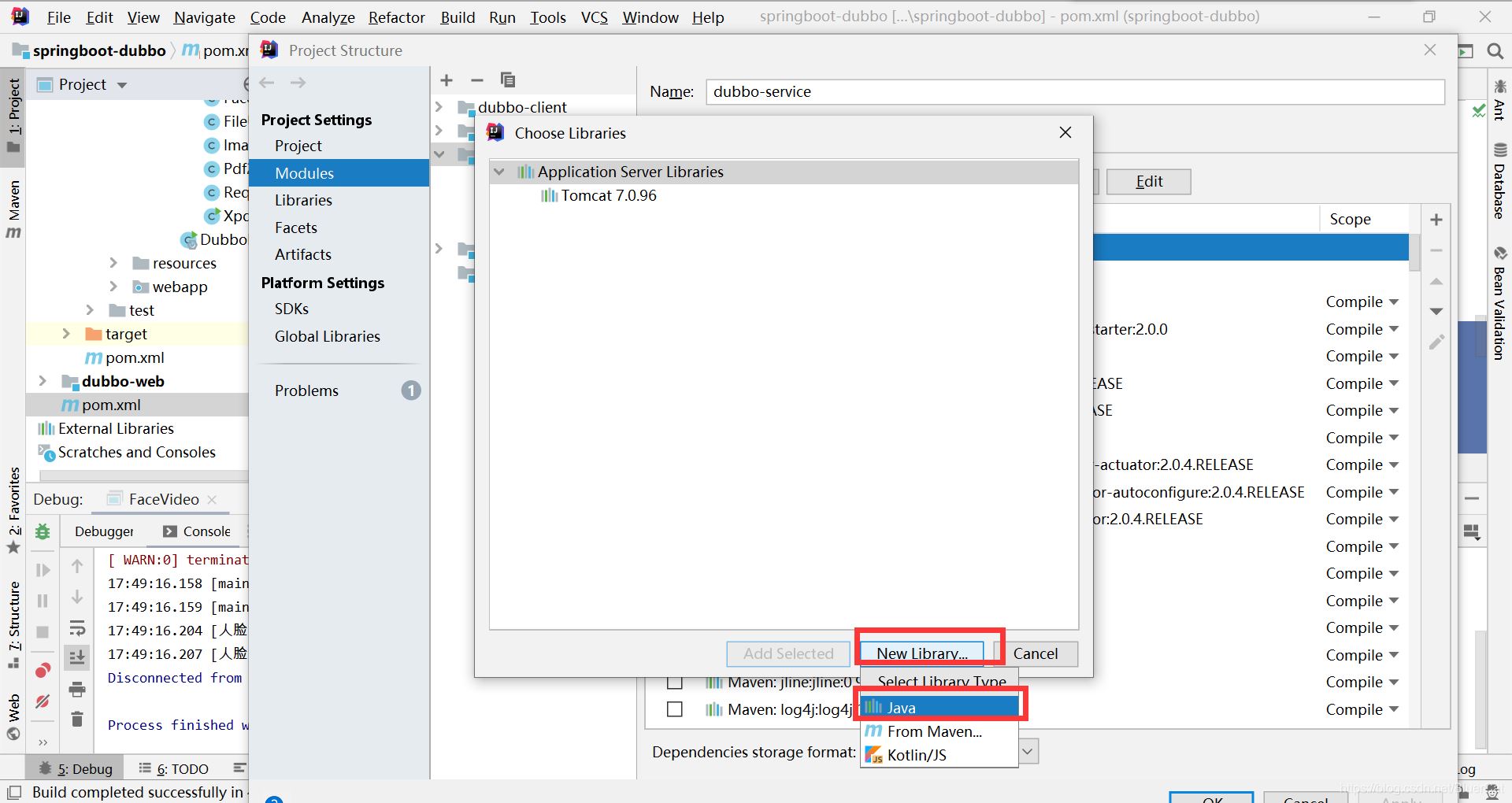

1.导入库依赖File --> Project Structure，点击Modules，选择需要使用opencv.jar的项目。

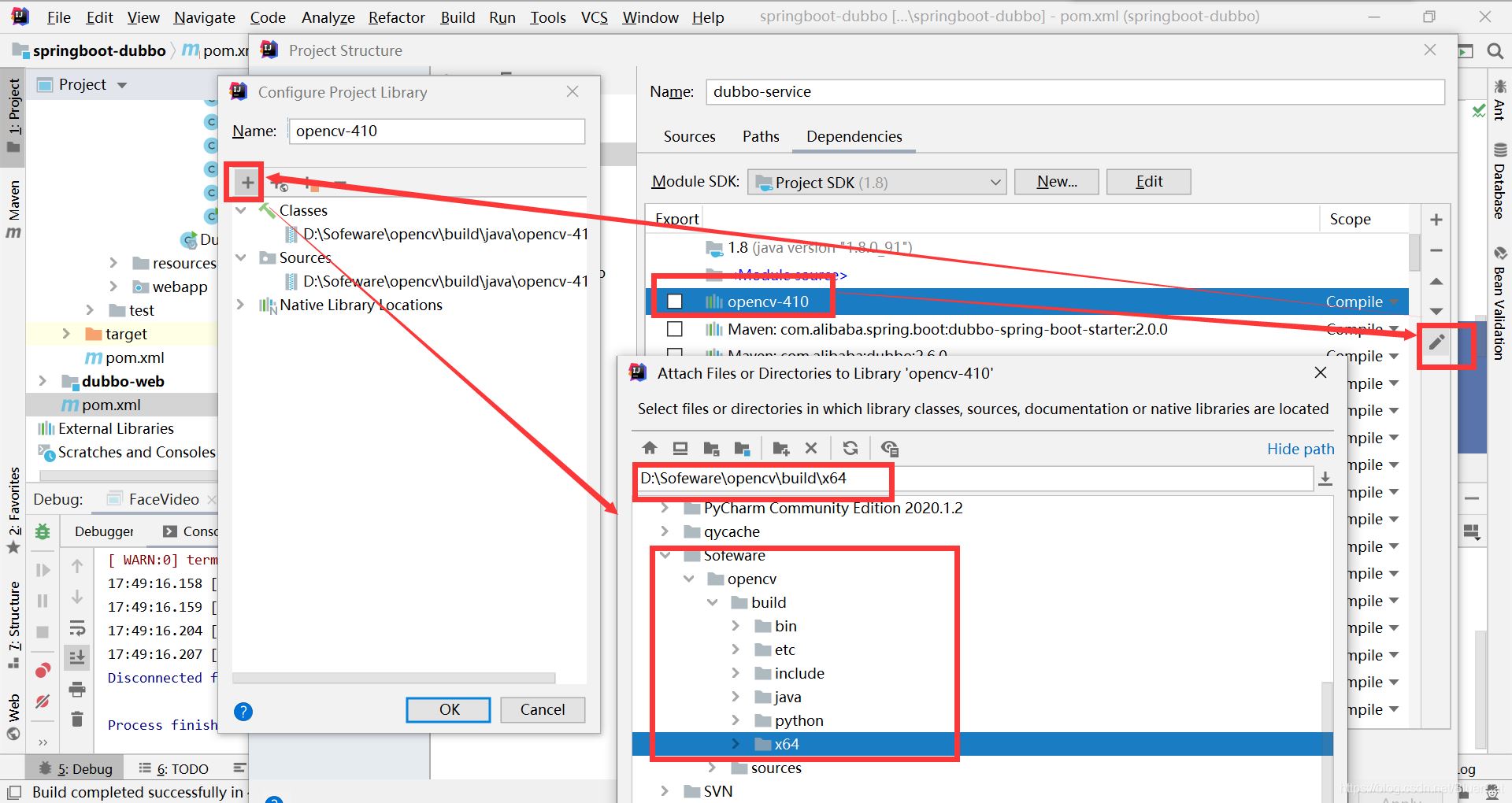

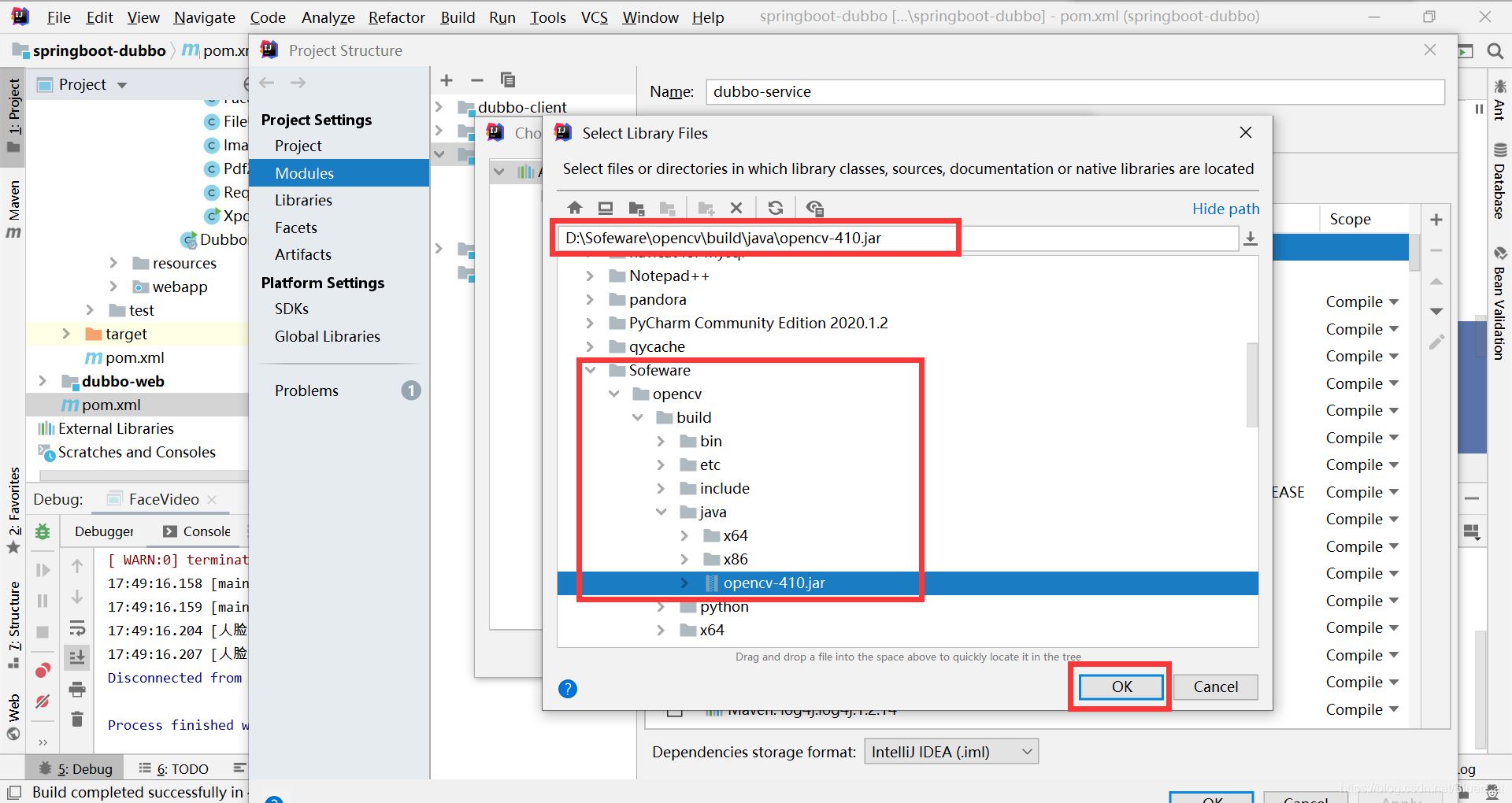

选择直接opencv安装路径

2.java代码demo

package org.Litluecat.utils;import org.apache.commons.lang.StringUtils;import org.opencv.core.*;import org.opencv.highgui.HighGui;import org.opencv.highgui.ImageWindow;import org.opencv.imgcodecs.Imgcodecs;import org.opencv.imgproc.Imgproc;import org.opencv.objdetect.CascadeClassifier;import org.opencv.videoio.VideoCapture;import org.opencv.videoio.VideoWriter;import org.opencv.videoio.Videoio;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import java.util.Arrays;/** * 人脸比对工具类 * @author Litluecat * @Title: Opencv 图片人脸识别、实时摄像头人脸识别**/public class FaceVideo { private static final Logger log = LoggerFactory.getLogger(FaceVideo.class); private static final String endImgUrl = 'C:UserslenovoDesktop'; /** * opencv的人脸识别xml文件路径 */ private static final String faceDetectorXML2URL = 'D:Sofewareopencvsourcesdatahaarcascadeshaarcascade_frontalface_alt.xml'; /** * opencv的人眼识别xml文件路径 */ private static final String eyeDetectorXML2URL = 'D:Sofewareopencvsourcesdatahaarcascadeshaarcascade_eye.xml'; /** * 直方图大小，越大精度越高，运行越慢 */ private static int Matching_Accuracy = 100000; /** * 初始化人脸探测器 */ private static CascadeClassifier faceDetector; /** * 初始化人眼探测器 */ private static CascadeClassifier eyeDetector; private static int i=0; static {System.loadLibrary(Core.NATIVE_LIBRARY_NAME);faceDetector = new CascadeClassifier(faceDetectorXML2URL);eyeDetector = new CascadeClassifier(eyeDetectorXML2URL); } public static void main(String[] args) {log.info('开始人脸匹配');long begin = System.currentTimeMillis();// 1- 从摄像头实时人脸识别，识别成功保存图片到本地try{ getVideoFromCamera(endImgUrl + '2.jpg'); //仅用于强制抛异常，从而关闭GUI界面 Thread.sleep(1000); int err = 1/0; // 2- 比对本地2张图的人脸相似度 （越接近1越相似）// double compareHist = FaceVideo.compare_image(endImgUrl + 'test1.jpg' , endImgUrl + 'face.jpg');// log.info('匹配度：{}',compareHist);// if (compareHist > 0.72) {//log.info('人脸匹配');// } else {//log.info('人脸不匹配');// }}catch (Exception e){ log.info('开始强制关闭'); log.info('人脸匹配结束，总耗时：{}ms',(System.currentTimeMillis()-begin)); System.exit(0);} } /** * OpenCV-4.1.1 从摄像头实时读取 * @param targetImgUrl 比对身份证图片 * @return: void * @date: 2019年8月19日 17:20:13 */ public static void getVideoFromCamera(String targetImgUrl) {//1 如果要从摄像头获取视频 则要在 VideoCapture 的构造方法写 0VideoCapture capture = new VideoCapture(0);Mat video = new Mat();int index = 0;if (capture.isOpened()) { while(i<3) {// 匹配成功3次退出capture.read(video);HighGui.imshow('实时人脸识别', getFace(video, targetImgUrl));//窗口延迟等待100ms，返回退出按键index = HighGui.waitKey(100);//当退出按键为Esc时，退出窗口if (index == 27) { break;} }}else{ log.info('摄像头未开启');}//该窗口销毁不生效，该方法存在问题HighGui.destroyAllWindows();capture.release();return; } /** * OpenCV-4.1.0 人脸识别 * @param image 待处理Mat图片(视频中的某一帧) * @param targetImgUrl 匹配身份证照片地址 * @return 处理后的图片 */ public static Mat getFace(Mat image, String targetImgUrl) {MatOfRect face = new MatOfRect();faceDetector.detectMultiScale(image, face);Rect[] rects=face.toArray();log.info('匹配到 '+rects.length+' 个人脸');if(rects != null && rects.length >= 1) { i++; if(i==3) {// 获取匹配成功第3次的照片Imgcodecs.imwrite(endImgUrl + 'face.jpg', image);FaceVideoThread faceVideoThread = new FaceVideoThread(targetImgUrl , endImgUrl + 'face.jpg');new Thread(faceVideoThread,'人脸比对线程').start(); }}return image; } /** * 人脸截图 * @param img * @return */ public static String face2Img(String img) {String faceImg = null;Mat image0 = Imgcodecs.imread(img);Mat image1 = new Mat();// 灰度化Imgproc.cvtColor(image0, image1, Imgproc.COLOR_BGR2GRAY);// 探测人脸MatOfRect faceDetections = new MatOfRect();faceDetector.detectMultiScale(image1, faceDetections);// rect中人脸图片的范围for (Rect rect : faceDetections.toArray()) { faceImg = img+'_.jpg'; // 进行图片裁剪 imageCut(img, faceImg, rect.x, rect.y, rect.width, rect.height);}if(null == faceImg){ log.info('face2Img未识别出该图像中的人脸，img={}',img);}return faceImg; } /** * 人脸比对 * @param img_1 * @param img_2 * @return */ public static double compare_image(String img_1, String img_2) {Mat mat_1 = conv_Mat(img_1);Mat mat_2 = conv_Mat(img_2);Mat hist_1 = new Mat();Mat hist_2 = new Mat();//颜色范围MatOfFloat ranges = new MatOfFloat(0f, 256f);//直方图大小， 越大匹配越精确 (越慢)MatOfInt histSize = new MatOfInt(Matching_Accuracy);Imgproc.calcHist(Arrays.asList(mat_1), new MatOfInt(0), new Mat(), hist_1, histSize, ranges);Imgproc.calcHist(Arrays.asList(mat_2), new MatOfInt(0), new Mat(), hist_2, histSize, ranges);// CORREL 相关系数double res = Imgproc.compareHist(hist_1, hist_2, Imgproc.CV_COMP_CORREL);return res; } /** * 灰度化人脸 * @param img * @return */ public static Mat conv_Mat(String img) {if(StringUtils.isBlank(img)){ return null;}Mat image0 = Imgcodecs.imread(img);Mat image1 = new Mat();//Mat image2 = new Mat();// 灰度化Imgproc.cvtColor(image0, image1, Imgproc.COLOR_BGR2GRAY);//直方均匀//Imgproc.equalizeHist(image1, image2);// 探测人脸MatOfRect faceDetections = new MatOfRect();faceDetector.detectMultiScale(image1, faceDetections);//探测人眼//MatOfRect eyeDetections = new MatOfRect();//eyeDetector.detectMultiScale(image1, eyeDetections);// rect中人脸图片的范围Mat face = null;for (Rect rect : faceDetections.toArray()) { //给图片上画框框 参数1是图片 参数2是矩形 参数3是颜色 参数四是画出来的线条大小 //Imgproc.rectangle(image0,rect,new Scalar(0,0,255),2); //输出图片 //Imgcodecs.imwrite(img+'_.jpg',image0); face = new Mat(image1, rect);}if(null == face){ log.info('conv_Mat未识别出该图像中的人脸，img={}',img);}return face; }}

这边的人脸识别是另外其线程进行比对，代码如下。

package org.Litluecat.utils;import org.slf4j.Logger;import org.slf4j.LoggerFactory;public class FaceVideoThread implements Runnable{ private static final Logger log = LoggerFactory.getLogger(FaceVideoThread.class); private String oneImgUrl = null; private String otherImgUrl = null; public FaceVideoThread(String oneImgUrl, String otherImgUrl){this.oneImgUrl = oneImgUrl;this.otherImgUrl = otherImgUrl; } @Override public void run() {try { double compareHist = FaceVideo.compare_image(oneImgUrl , otherImgUrl); log.info('匹配度：{}',compareHist); if (compareHist > 0.72) {log.info('人脸匹配'); } else {log.info('人脸不匹配'); }} catch (Exception e) { e.printStackTrace();} }}

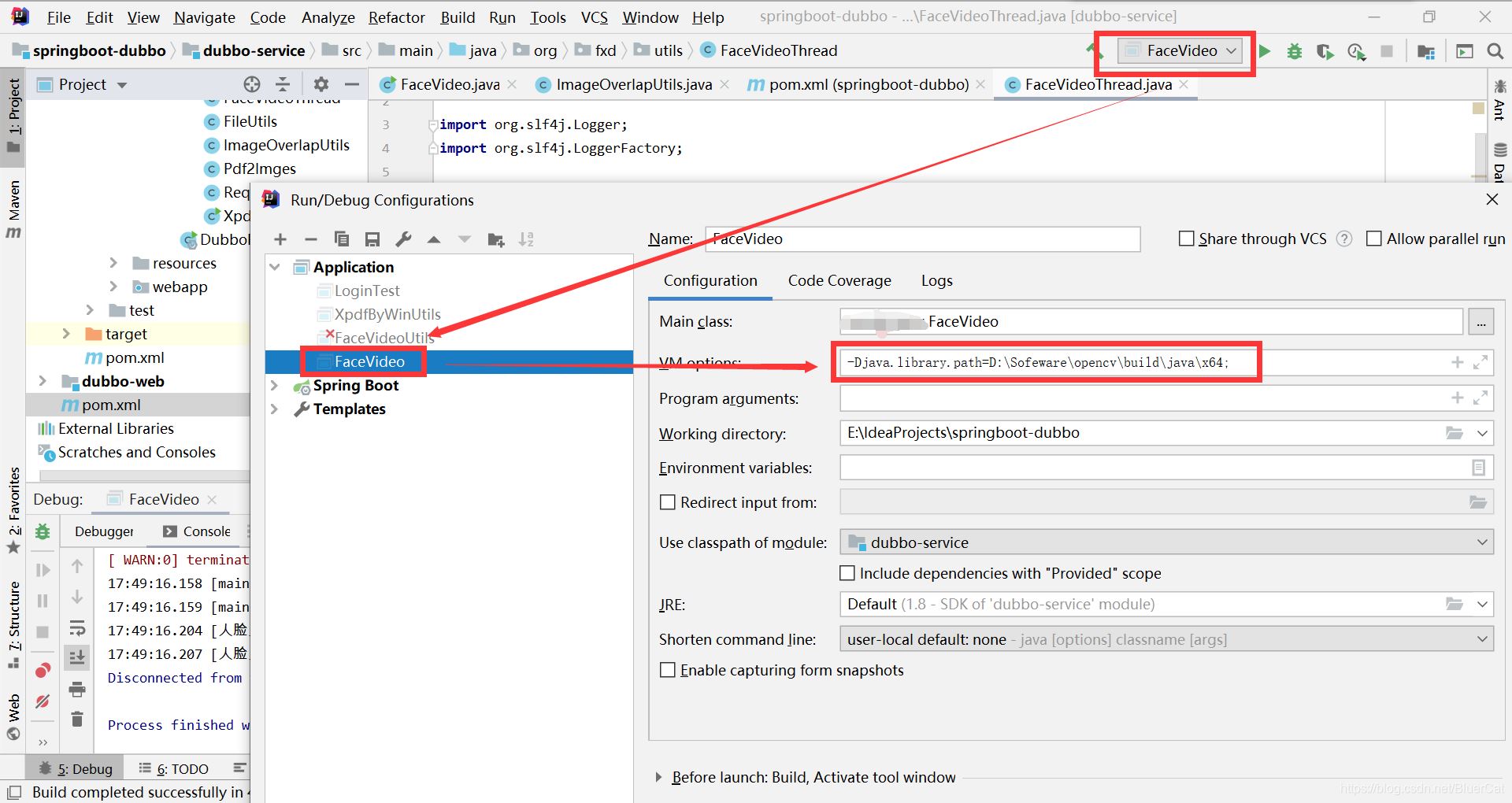

提醒：如果运行异常，请添加你opencv的安装地址-Djava.library.path=D:Sofewareopencvbuildjavax64;

总结：java+opencv做人脸识别的精度不够，我也是有待学习，如果大家有更好的方式，能将opencv更好的展现出来，并达到更精准的人脸识别，请分享给我，谢谢。
