Java规则引擎Easy Rules的使用介绍

1. Easy Rules 概述

Easy Rules是一个Java规则引擎，灵感来自一篇名为《Should I use a Rules Engine?》的文章

规则引擎就是提供一种可选的计算模型。与通常的命令式模型（由带有条件和循环的命令依次组成）不同，规则引擎基于生产规则系统。这是一组生产规则，每条规则都有一个条件（condition）和一个动作（action）———— 简单地说，可以将其看作是一组if-then语句。

精妙之处在于规则可以按任何顺序编写，引擎会决定何时使用对顺序有意义的任何方式来计算它们。考虑它的一个好方法是系统运行所有规则，选择条件成立的规则，然后执行相应的操作。这样做的好处是，很多问题都很自然地符合这个模型：

if car.owner.hasCellPhone then premium += 100;if car.model.theftRating > 4 then premium += 200;if car.owner.livesInDodgyArea && car.model.theftRating > 2 then premium += 300;

规则引擎是一种工具，它使得这种计算模型编程变得更容易。它可能是一个完整的开发环境，或者一个可以在传统平台上工作的框架。生产规则计算模型最适合仅解决一部分计算问题，因此规则引擎可以更好地嵌入到较大的系统中。

你可以自己构建一个简单的规则引擎。你所需要做的就是创建一组带有条件和动作的对象，将它们存储在一个集合中，然后遍历它们以评估条件并执行这些动作。

Easy Rules它提供Rule抽象以创建具有条件和动作的规则，并提供RuleEngine API，该API通过一组规则运行以评估条件并执行动作。

Easy Rules简单易用，只需两步：

首先，定义规则，方式有很多种

方式一：注解

@Rule(name = 'weather rule', description = 'if it rains then take an umbrella')public class WeatherRule { @Condition public boolean itRains(@Fact('rain') boolean rain) { return rain; } @Action public void takeAnUmbrella() { System.out.println('It rains, take an umbrella!'); }}

方式二：链式编程

Rule weatherRule = new RuleBuilder() .name('weather rule') .description('if it rains then take an umbrella') .when(facts -> facts.get('rain').equals(true)) .then(facts -> System.out.println('It rains, take an umbrella!')) .build();

方式三：表达式

Rule weatherRule = new MVELRule() .name('weather rule') .description('if it rains then take an umbrella') .when('rain == true') .then('System.out.println('It rains, take an umbrella!');');

方式四：yml配置文件

例如：weather-rule.yml

name: 'weather rule'description: 'if it rains then take an umbrella'condition: 'rain == true'actions: - 'System.out.println('It rains, take an umbrella!');'

MVELRuleFactory ruleFactory = new MVELRuleFactory(new YamlRuleDefinitionReader());Rule weatherRule = ruleFactory.createRule(new FileReader('weather-rule.yml'));

接下来，应用规则

public class Test { public static void main(String[] args) { // define facts Facts facts = new Facts(); facts.put('rain', true); // define rules Rule weatherRule = ... Rules rules = new Rules(); rules.register(weatherRule); // fire rules on known facts RulesEngine rulesEngine = new DefaultRulesEngine(); rulesEngine.fire(rules, facts); }}

入门案例：Hello Easy Rules

<dependency> <groupId>org.jeasy</groupId> <artifactId>easy-rules-core</artifactId> <version>4.0.0</version></dependency>

通过骨架创建maven项目：

mvn archetype:generate -DarchetypeGroupId=org.jeasy -DarchetypeArtifactId=easy-rules-archetype -DarchetypeVersion=4.0.0

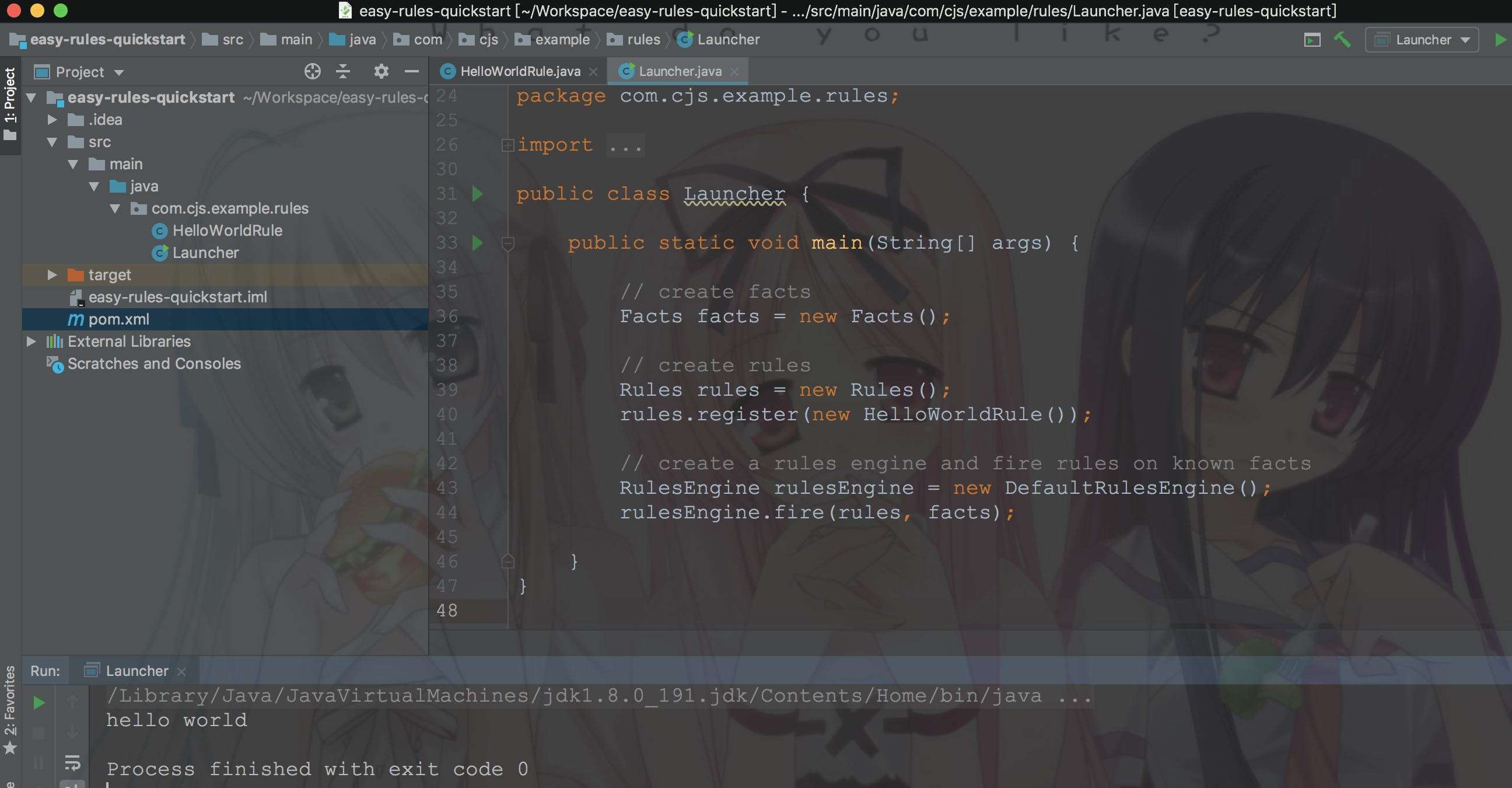

默认给我们生成了一个HelloWorldRule规则，如下：

package com.cjs.example.rules;import org.jeasy.rules.annotation.Action;import org.jeasy.rules.annotation.Condition;import org.jeasy.rules.annotation.Rule;@Rule(name = 'Hello World rule', description = 'Always say hello world')public class HelloWorldRule { @Condition public boolean when() { return true; } @Action public void then() throws Exception { System.out.println('hello world'); }}

2. 规则定义

2.1. 定义规则

大多数业务规则可以用以下定义表示：

Name : 一个命名空间下的唯一的规则名称 Description : 规则的简要描述 Priority : 相对于其他规则的优先级 Facts : 事实，可立即为要处理的数据 Conditions : 为了应用规则而必须满足的一组条件 Actions : 当条件满足时执行的一组动作

Easy Rules为每个关键点提供了一个抽象来定义业务规则。

在Easy Rules中，Rule接口代表规则

public interface Rule { /** * This method encapsulates the rule’s conditions. * @return true if the rule should be applied given the provided facts, false otherwise */ boolean evaluate(Facts facts); /** * This method encapsulates the rule’s actions. * @throws Exception if an error occurs during actions performing */ void execute(Facts facts) throws Exception; //Getters and setters for rule name, description and priority omitted.}

evaluate方法封装了必须计算结果为TRUE才能触发规则的条件。execute方法封装了在满足规则条件时应该执行的动作。条件和操作由Condition和Action接口表示。

定义规则有两种方式：

通过在POJO类上添加注解 通过RuleBuilder API编程

可以在一个POJO类上添加@Rule注解，例如：

@Rule(name = 'my rule', description = 'my rule description', priority = 1)public class MyRule { @Condition public boolean when(@Fact('fact') fact) { //my rule conditions return true; } @Action(order = 1) public void then(Facts facts) throws Exception { //my actions } @Action(order = 2) public void finally() throws Exception { //my final actions }}

@Condition注解指定规则条件@Fact注解指定参数@Action注解指定规则执行的动作

RuleBuilder支持链式风格定义规则，例如：

Rule rule = new RuleBuilder().name('myRule').description('myRuleDescription').priority(3).when(condition).then(action1).then(action2).build();

组合规则

CompositeRule由一组规则组成。这是一个典型地组合设计模式的实现。

组合规则是一个抽象概念，因为可以以不同方式触发组合规则。

Easy Rules自带三种CompositeRule实现：

UnitRuleGroup : 要么应用所有规则，要么不应用任何规则（AND逻辑） ActivationRuleGroup : 它触发第一个适用规则，并忽略组中的其他规则（XOR逻辑） ConditionalRuleGroup : 如果具有最高优先级的规则计算结果为true，则触发其余规则

复合规则可以从基本规则创建并注册为常规规则：

//Create a composite rule from two primitive rulesUnitRuleGroup myUnitRuleGroup = new UnitRuleGroup('myUnitRuleGroup', 'unit of myRule1 and myRule2');myUnitRuleGroup.addRule(myRule1);myUnitRuleGroup.addRule(myRule2);//Register the composite rule as a regular ruleRules rules = new Rules();rules.register(myUnitRuleGroup);RulesEngine rulesEngine = new DefaultRulesEngine();rulesEngine.fire(rules, someFacts);

每个规则都有优先级。它代表触发注册规则的默认顺序。默认情况下，较低的值表示较高的优先级。可以重写compareTo方法以提供自定义优先级策略。

2.2. 定义事实

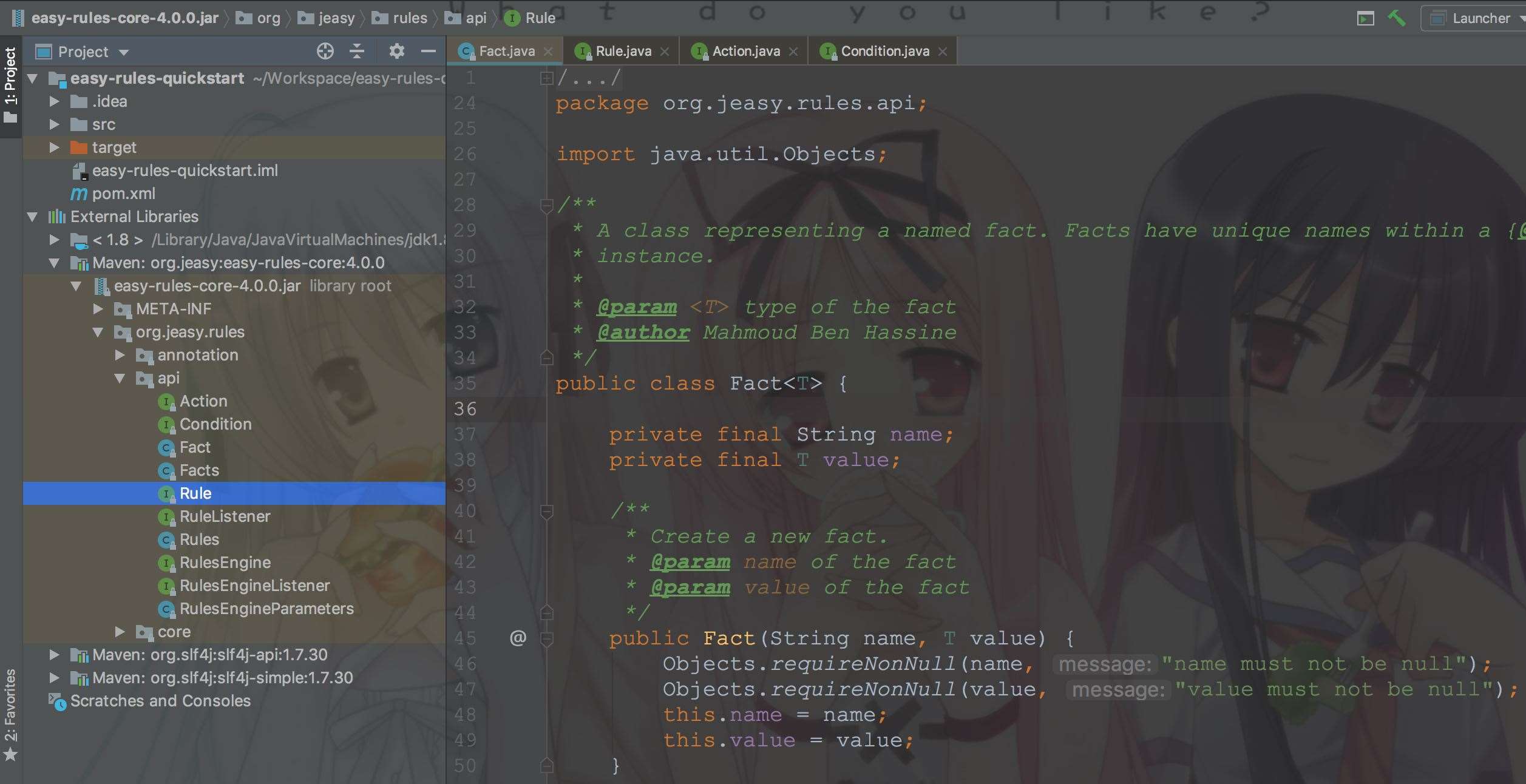

在Easy Rules中，Fact API代表事实

public class Fact<T> { private final String name; private final T value;}

举个栗子：

Fact<String> fact = new Fact('foo', 'bar');Facts facts = new Facts();facts.add(fact);

或者，也可以用这样简写形式

Facts facts = new Facts();facts.put('foo', 'bar');

用@Fact注解可以将Facts注入到condition和action方法中

@Ruleclass WeatherRule { @Condition public boolean itRains(@Fact('rain') boolean rain) { return rain; } @Action public void takeAnUmbrella(Facts facts) { System.out.println('It rains, take an umbrella!'); // can add/remove/modify facts }}

2.3. 定义规则引擎

Easy Rules提供两种RulesEngine接口实现：

DefaultRulesEngine : 根据规则的自然顺序应用规则 InferenceRulesEngine : 持续对已知事实应用规则，直到不再适用任何规则为止

创建规则引擎：

RulesEngine rulesEngine = new DefaultRulesEngine();// orRulesEngine rulesEngine = new InferenceRulesEngine();

然后，注册规则

rulesEngine.fire(rules, facts);

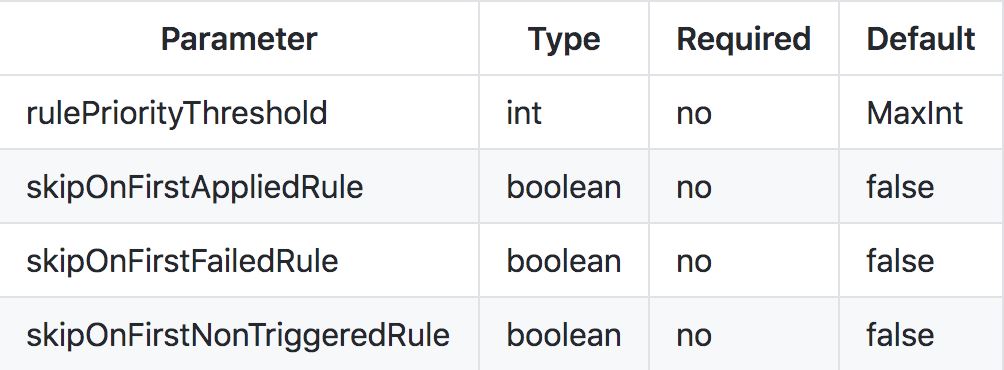

规则引擎有一些可配置的参数，如下图所示：

举个栗子：

RulesEngineParameters parameters = new RulesEngineParameters() .rulePriorityThreshold(10) .skipOnFirstAppliedRule(true) .skipOnFirstFailedRule(true) .skipOnFirstNonTriggeredRule(true);RulesEngine rulesEngine = new DefaultRulesEngine(parameters);

2.4. 定义规则监听器

通过实现RuleListener接口

public interface RuleListener { /** * Triggered before the evaluation of a rule. * * @param rule being evaluated * @param facts known before evaluating the rule * @return true if the rule should be evaluated, false otherwise */ default boolean beforeEvaluate(Rule rule, Facts facts) { return true; } /** * Triggered after the evaluation of a rule. * * @param rule that has been evaluated * @param facts known after evaluating the rule * @param evaluationResult true if the rule evaluated to true, false otherwise */ default void afterEvaluate(Rule rule, Facts facts, boolean evaluationResult) { } /** * Triggered on condition evaluation error due to any runtime exception. * * @param rule that has been evaluated * @param facts known while evaluating the rule * @param exception that happened while attempting to evaluate the condition. */ default void onEvaluationError(Rule rule, Facts facts, Exception exception) { } /** * Triggered before the execution of a rule. * * @param rule the current rule * @param facts known facts before executing the rule */ default void beforeExecute(Rule rule, Facts facts) { } /** * Triggered after a rule has been executed successfully. * * @param rule the current rule * @param facts known facts after executing the rule */ default void onSuccess(Rule rule, Facts facts) { } /** * Triggered after a rule has failed. * * @param rule the current rule * @param facts known facts after executing the rule * @param exception the exception thrown when attempting to execute the rule */ default void onFailure(Rule rule, Facts facts, Exception exception) { }}

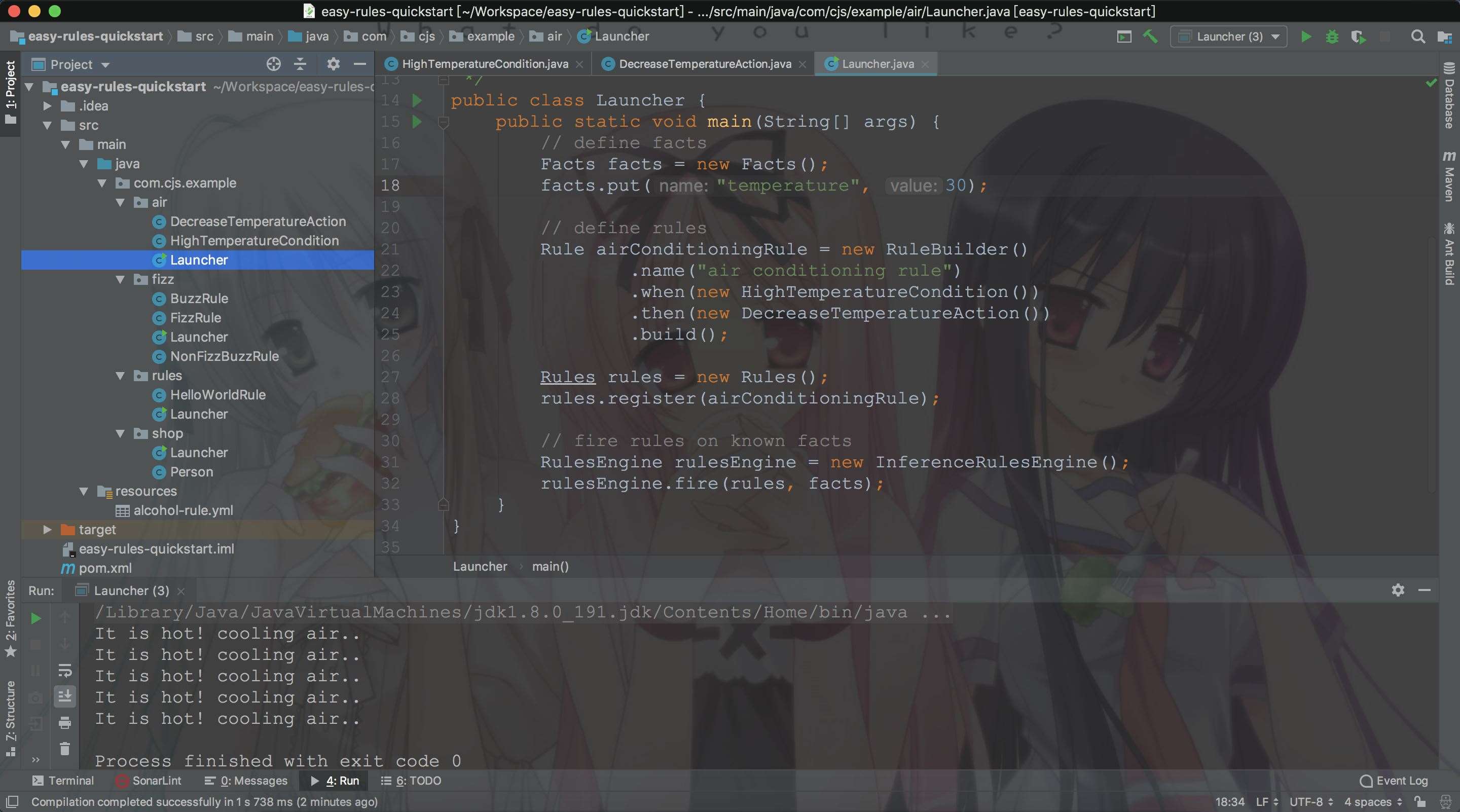

3. 示例

<project xmlns='http://maven.apache.org/POM/4.0.0' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd'> <modelVersion>4.0.0</modelVersion> <groupId>com.cjs.example</groupId> <artifactId>easy-rules-quickstart</artifactId> <version>1.0.0-SNAPSHOT</version> <packaging>jar</packaging> <dependencies> <dependency> <groupId>org.jeasy</groupId> <artifactId>easy-rules-core</artifactId> <version>4.0.0</version> </dependency> <dependency> <groupId>org.jeasy</groupId> <artifactId>easy-rules-support</artifactId> <version>4.0.0</version> </dependency> <dependency> <groupId>org.jeasy</groupId> <artifactId>easy-rules-mvel</artifactId> <version>4.0.0</version> </dependency> <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-simple</artifactId> <version>1.7.30</version> </dependency> </dependencies></project>

4. 扩展

规则本质上是一个函数，如y=f(x1,x2,..,xn)

规则引擎就是为了解决业务代码和业务规则分离的引擎，是一种嵌入在应用程序中的组件，实现了将业务决策从应用程序代码中分离。

还有一种常见的方式是Java+Groovy来实现，Java内嵌Groovy脚本引擎进行业务规则剥离。

https://github.com/j-easy/easy-rules/wiki
