Android自定义控制条效果

本文实例为大家分享了Android自定义控制条效果的具体代码，供大家参考，具体内容如下

ControlBar

自定义一个可以调节大小的控件，可以根据宽高来指定控制条方向。当width >= heigth时，为横向控制条，否则为竖向控制条

onMeasure

根据用户给定的width与height计算控制条的坐标。

1.主要的计算思路

先计算横向的的坐标点，竖向的坐标点即横向的逆时针旋转90度再向下移一个heigth的长度。

//横向坐标点mHorLArcFirstPathX = mRadius + mLArcLength;mHorLArcFirstPathY = startY + mBarHeight * (1.0f - LITTLE_ARC_PER_WIDTH) / 2.0f ;//对应竖向坐标点mLArcFirstPathX = mHorLArcFirstPathY;mLArcFirstPathY = -mHorLArcFirstPathX + longSide;

onDraw

根据计算所得坐标点，构建路径，绘图

super.onDraw(canvas); mBgPaint.setColor(Color.WHITE); canvas.drawPath(mBgPath, mBgPaint); mBgPaint.setColor(Color.GRAY); canvas.drawPath(mMaxPath, mBgPaint); canvas.drawPath(mPath, mPaint); mBgPaint.setColor(Color.WHITE); if(mDirection == HORIZONTAL){ canvas.drawCircle(mRadius + mPercent * mBarWidth, mRadius, mRadius, mBgPaint); canvas.drawCircle(mRadius + mPercent * mBarWidth, mRadius, mRadius - SPACING, mPaint); }else { canvas.drawCircle(mRadius, mHeight - (mRadius + mPercent * mBarWidth), mRadius, mBgPaint); canvas.drawCircle(mRadius, mHeight - (mRadius + mPercent * mBarWidth), mRadius - SPACING, mPaint); }

onTouchEvent

根据手指滑动，动态调整数值大小

@Override public boolean onTouchEvent(MotionEvent event) { switch (event.getAction()){ case MotionEvent.ACTION_DOWN: case MotionEvent.ACTION_MOVE: float distance = 0; float maxDist = 0; switch (mDirection){ case HORIZONTAL: distance = event.getX(); maxDist = mWidth; break; case VERTICAL: distance = mHeight - event.getY(); maxDist = mHeight; break; } if(distance <= mRadius){ updateView(MIN_VALUE); }else if(distance >= maxDist - mRadius){ updateView(MAX_VALUE); }else { updateView(calculatingValue(distance)); } return true; default: return super.onTouchEvent(event); } }

实际效果如图所示

横向控制条

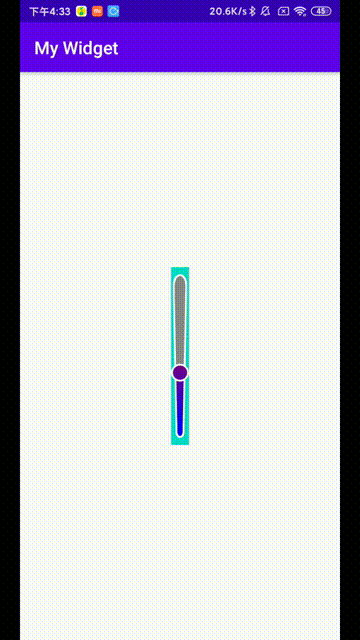

竖向控制条

项目github地址
