Android中socket通信的简单实现

Android中socket通信简单实现，供大家参考，具体内容如下

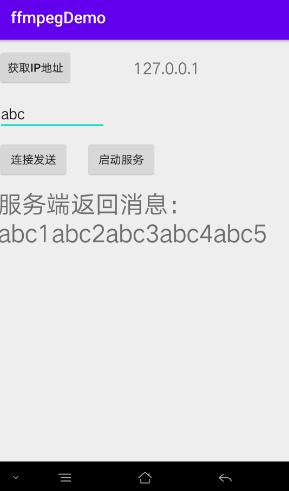

socket通信需要有一个服务器和客户端，可以把同一个APP作为服务器跟客户端，也可以分开成两个APP。先上个图：

这里以一个APP作为服务器跟客户端为示例

1、添加网络访问权限

<uses-permission android:name='android.permission.INTERNET' />

2、写服务器，在APP上启动

import java.io.DataInputStream;import java.io.DataOutputStream;import java.io.IOException;import java.net.InetAddress;import java.net.ServerSocket;import java.net.Socket;public class Server { ServerSocket serverSocket = null; public final int port = 9998; private int i = 0; public Server(){ //输出服务器的IP地址 try { InetAddress addr = InetAddress.getLocalHost(); System.out.println('local host:'+addr); serverSocket = new ServerSocket(port); System.out.println('0k'); } catch (IOException e) { // TODO Auto-generated catch block e.printStackTrace(); } } public void startService(){ try { Socket socket = null; System.out.println('waiting...'); //等待连接，每建立一个连接，就新建一个线程 while(true){ socket = serverSocket.accept();//等待一个客户端的连接，在连接之前，此方法是阻塞的 System.out.println('connect to'+socket.getInetAddress()+':'+socket.getLocalPort()); new ConnectThread(socket).start(); } } catch (IOException e) { // TODO Auto-generated catch block System.out.println('IOException'); e.printStackTrace(); } } //向客户端发送信息 class ConnectThread extends Thread{ Socket socket = null; public ConnectThread(Socket socket){ super(); this.socket = socket; } @Override public void run(){ try { DataInputStream dis = new DataInputStream(socket.getInputStream()); DataOutputStream dos = new DataOutputStream(socket.getOutputStream()); while(true){ i++; String msgRecv = dis.readUTF(); System.out.println('msg from client:'+msgRecv); dos.writeUTF(msgRecv + i); dos.flush(); } } catch (IOException e) { // TODO Auto-generated catch block e.printStackTrace(); } } }}

需要在线程中调用，调用方法：

new Thread(() -> new Server().startService()).start();

3、客户端代码

import android.os.Bundle;import android.os.Handler;import android.os.Message;import android.widget.Button;import android.widget.EditText;import android.widget.TextView;import android.widget.Toast;import java.io.DataInputStream;import java.io.DataOutputStream;import java.io.IOException;import java.net.InetAddress;import java.net.Socket;import java.net.UnknownHostException;import androidx.appcompat.app.AppCompatActivity;/** * @author fenghaitao * @time 2020年4月2日14:34:33 * scoket客户端连接测试 */public class SocketActivity extends AppCompatActivity { //IP地址和端口号 public static String IP_ADDRESS = ''; public static int PORT = 9998; //三个控件 EditText et_message = null; //需要发送的内容 Button bt_getAdress = null; //获取本机IP地址 Button bt_connect = null; //连接并发送 Button bt_startServer = null; //启动服务端 TextView tv_adress = null; //ip地址 TextView tv_reply = null; //服务器回复的消息 //handler Handler handler = null; Socket soc = null; DataOutputStream dos = null; DataInputStream dis = null; String messageRecv = null; @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_socket); et_message = findViewById(R.id.et_message); bt_getAdress = findViewById(R.id.bt_getAdress); bt_connect = findViewById(R.id.bt_connect); bt_startServer = findViewById(R.id.bt_startServer); tv_adress = findViewById(R.id.tv_adress); tv_reply = findViewById(R.id.tv_reply); bt_getAdress.setOnClickListener(v -> { new Thread(() -> { try { InetAddress addr = InetAddress.getLocalHost(); System.out.println('local host:'+addr); runOnUiThread(() -> tv_adress.setText(addr.toString().split('/')[1])); } catch (UnknownHostException e) { e.printStackTrace(); } }).start(); }); bt_startServer.setOnClickListener(v -> { new Thread(() -> new Server().startService()).start(); Toast.makeText(SocketActivity.this,'服务已启动',Toast.LENGTH_SHORT).show(); }); bt_connect.setOnClickListener(v -> { IP_ADDRESS = tv_adress.getText().toString(); new ConnectionThread(et_message.getText().toString()).start(); }); handler = new Handler(msg -> { Bundle b = msg.getData(); //获取消息中的Bundle对象 String str = b.getString('data'); //获取键为data的字符串的值 tv_reply.append(str); return false; }); } //新建一个子线程，实现socket通信 class ConnectionThread extends Thread { String message = null; public ConnectionThread(String msg) { message = msg; } @Override public void run() { if (soc == null) { try { //Log.d('socket','new socket'); if (''.equals(IP_ADDRESS)) { return; } soc = new Socket(IP_ADDRESS, PORT); //获取socket的输入输出流 dis = new DataInputStream(soc.getInputStream()); dos = new DataOutputStream(soc.getOutputStream()); } catch (IOException e) { // TODO Auto-generated catch block e.printStackTrace(); } } try { dos.writeUTF(message); dos.flush(); messageRecv = dis.readUTF();//如果没有收到数据，会阻塞 Message msg = new Message(); Bundle b = new Bundle(); b.putString('data', messageRecv); msg.setData(b); handler.sendMessage(msg); } catch (IOException e) { // TODO Auto-generated catch block e.printStackTrace(); } } }}

下面是xml页面代码

<?xml version='1.0' encoding='utf-8'?><LinearLayout xmlns:android='http://schemas.android.com/apk/res/android' xmlns:app='http://schemas.android.com/apk/res-auto' xmlns:tools='http://schemas.android.com/tools' android:layout_width='match_parent' android:layout_height='match_parent' tools:context='.SocketActivity'> <LinearLayout android:layout_width='match_parent' android:layout_height='match_parent' android:orientation='vertical'> <LinearLayout android:layout_width='match_parent' android:layout_height='wrap_content' android:layout_marginTop='10dp'> <Button android: android:layout_width='wrap_content' android:layout_height='wrap_content' android:text='获取IP地址'/> <TextView android: android:layout_width='200dp' android:layout_height='match_parent' android:layout_marginLeft='15dp' android:textSize='20dp' android:gravity='center'/> </LinearLayout> <Button android: android:text='启动服务' android:layout_marginTop='10dp' android:layout_width='wrap_content' android:layout_height='wrap_content'/> <EditText android: android:layout_marginTop='10dp' android:hint='请输入发送信息' android:layout_width='wrap_content' android:layout_height='wrap_content'/> <Button android: android:text='连接发送' android:layout_marginTop='10dp' android:layout_width='wrap_content' android:layout_height='wrap_content'/> <TextView android: android:layout_width='wrap_content' android:layout_height='wrap_content' android:layout_marginTop='10dp' android:text='服务端返回消息：' android:textSize='30sp'/> </LinearLayout></LinearLayout>

客户端跟服务器进行通信之前记得先启动服务器，如果端口被占用需要换个端口。
