android尺子的自定义view——RulerView详解

项目中用到自定义尺子的样式：

原代码在github上找的，地址：https://github.com/QQabby/HorizontalRuler

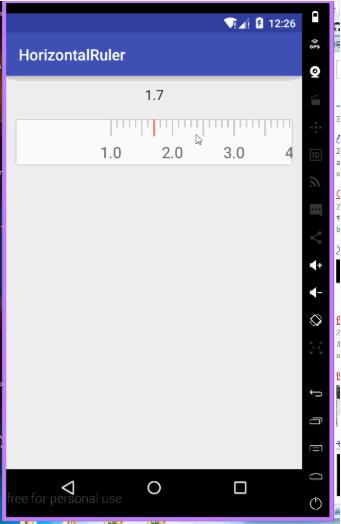

原效果为

因为跟自己要使用的view稍有不同 所以做了一些修改，修改的注释都放在代码中了，特此记录一下。

首先是一个自定义View：

public class RuleView extends View { private Paint paint; private Context context; private int maxValue = 500; /** * 起点x的坐标 */ private float startX ; private float startY ; /** * 刻度线的长度 */ private float yLenght ; /** * 刻度的间隙 */// private float gap = 8f; private float gap = 10; /** * 文本的间隙 */ private float textGap = 10f; /** * 短竖线的高度 */ private float smallHeight = 10f; /** * 长竖线的高度 */ private float largeHeight = 22f; /** * 文本显示格式化 */ private DecimalFormat format; private DisplayMetrics metrics = null; /** * 文本的字体大小 */ private float mFontSize; private Handler mScrollHandler = null; private MyHorizontalScrollView horizontalScrollView; private int mCurrentX = -999999999; /** * 刻度进制 */// private float unit = 10f; private int unit = 10;//隔unit个刻度写一个数字 //每个大刻度代表值iValue private int iValue = 10; boolean isDraw = true; public RuleView(Context context) { super(context); this.context = context; init(); } public void setHorizontalScrollView( MyHorizontalScrollView horizontalScrollView) { this.horizontalScrollView = horizontalScrollView; this.horizontalScrollView.setOnTouchListener(new OnTouchListener() { @Override public boolean onTouch(View v, MotionEvent event) {final int action = event.getAction();switch (action) {case MotionEvent.ACTION_DOWN: break;case MotionEvent.ACTION_MOVE: mScrollHandler.removeCallbacks(mScrollRunnable); break;case MotionEvent.ACTION_UP: mScrollHandler.post(mScrollRunnable); break;}return false; } }); } public RuleView(Context context, AttributeSet attrs) { super(context, attrs); this.context = context; init(); } public void init() {// format = new DecimalFormat('0.0'); format = new DecimalFormat('0');//不使用浮点数格式 metrics = new DisplayMetrics(); WindowManager wmg = (WindowManager) context.getSystemService(Context.WINDOW_SERVICE); wmg.getDefaultDisplay().getMetrics(metrics); paint = new Paint(Paint.ANTI_ALIAS_FLAG); paint.setStyle(Paint.Style.FILL); paint.setStrokeWidth(getResources().getDimension(R.dimen.ui_1_dip));// paint.setStrokeWidth(2); paint.setColor(Color.parseColor('#999999')); mFontSize = ScreenUtil.dip2px(context, 16);// startY = ScreenUtil.dip2px(context, 20f); startY = ScreenUtil.dip2px(context, 0);//Y轴由0开始，即最顶端，不用设置适配布局文件RuleView的android:layout_marginTop='-20dp' yLenght = ScreenUtil.dip2px(context, 10);// gap = ScreenUtil.dip2px(context, 8f); gap = ScreenUtil.dip2px(context, 10);// startX = ScreenUtil.getScreenWidth(context)/ 2.0f- getResources().getDimension(R.dimen.ui_10_dip) ; startX = ScreenUtil.getScreenWidth(context)/ 2.0f;//X轴不减去10dp，则三角形顶点可以刚好最准0位置 // + getResources().getDimension(R.dimen.text_h2)/2.0f // Util.dip2px(context, 13f) + mScrollHandler = new Handler(context.getMainLooper()); } @Override protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) { float width = maxValue * gap + ScreenUtil.getScreenWidth(context) - getResources().getDimension(R.dimen.ui_10_dip)*2.0f ; // int widthMode = MeasureSpec.getMode(heightMeasureSpec); // if(widthMode == MeasureSpec.AT_MOST){ // Log.d('TAG', 'mode::AT_MOST'); // }else if(widthMode == MeasureSpec.EXACTLY){ // Log.d('TAG', 'mode::EXACTLY'); // }else if(widthMode == MeasureSpec.UNSPECIFIED){ // Log.d('TAG', 'mode::UNSPECIFIED'); // } setMeasuredDimension((int) width, heightMeasureSpec); } @Override protected void onDraw(final Canvas canvas) { super.onDraw(canvas); // 画刻度线 paint.setColor(getResources().getColor(R.color.gray_bg_high));// 刻度颜色 for (int i = 0; i <= maxValue; i++) { if (i % 5 == 0) {yLenght = ScreenUtil.dip2px(context, largeHeight); } else {yLenght = ScreenUtil.dip2px(context, smallHeight); } canvas.drawLine(i * gap + startX, startY, i * gap + startX, yLenght + startY, paint); } paint.setTextSize(mFontSize); // 每10个刻度写一个数字 textGap = gap * unit; // 画刻度文字30 paint.setColor(getResources().getColor(R.color.textGray));// 文字颜色 for (int i = 0; i <= maxValue / unit; i++) {// String text = format.format(i + 1) + '';//从0开始计数时不用加1 String text = format.format(i * iValue) + '';//乘以每刻度的值iValue // 获取文本的宽度 float width = ScreenUtil.px2dip(context, calculateTextWidth(text)) / 2f; canvas.drawText( text, startX - width + i * textGap, (startY + ScreenUtil.dip2px(context, largeHeight)) + ScreenUtil.dip2px(context, 24), paint);//字体大小 } } /** * 获取TextView中文本的宽度 */ private float calculateTextWidth(String text) { if (TextUtils.isEmpty(text)) { return 0; } TextPaint textPaint = new TextPaint(); textPaint.setTextSize(mFontSize * metrics.scaledDensity); final float textWidth = textPaint.measureText(text); return textWidth; } DecimalFormat df = new DecimalFormat('0.0'); /** * 当滑动尺子的时候 */ int scrollWidth = 0; public void setScrollerChanaged(int l, int t, int oldl, int oldt) { // 滑动的距离 scrollWidth = l; float number = scrollWidth / gap; float result = number / unit; listener.onSlide(result); } public onChangedListener listener; public interface onChangedListener { void onSlide(float number); } public void onChangedListener(onChangedListener listener) { this.listener = listener; } /** * 滚动监听线程 */ private Runnable mScrollRunnable = new Runnable() { @Override public void run() { if (mCurrentX == horizontalScrollView.getScrollX()) {// 滚动停止了try { float x = horizontalScrollView.getScrollX(); float value = (x / (gap * unit));// 当前的值 String s = df.format(value); // 滑动到11.0 ok int scrollX = (int) (Double.parseDouble(s) * gap * unit); horizontalScrollView.smoothScrollTo(scrollX, 0);} catch (NumberFormatException numExp) { numExp.printStackTrace();}mScrollHandler.removeCallbacks(this); } else {mCurrentX = horizontalScrollView.getScrollX();mScrollHandler.postDelayed(this, 50); } } }; /** * 设置默认刻度尺的刻度值,不会滚动到相应的位置 * * @param scaleValue */ public void setDefaultScaleValue(float scaleValue) {// final int scrollX = (int) ((scaleValue - 1.0f) * gap * unit);//从0开始计数时不用减去1 final int scrollX = (int) (scaleValue * gap * unit / 10);//每个值在设置刻度时会乘以10，所以除去 new Handler().postDelayed(new Runnable() { @Override public void run() {horizontalScrollView.smoothScrollTo(scrollX, 0); } }, 100); } /** * 设置刻度值 */ public void setScaleValue(int iValue) { this.iValue = iValue; } /** * 设置刻度最小值 */ public void setMinScaleValue(Float minScaleValue) { // this.minScaleValue = minScaleValue; } /** * 获取刻度最大值 */ public Float getMaxScaleValue() { // return maxScaleValue; return 33.0f; } /** * 设置刻度最大值 */ public void setMaxScaleValue(Float maxScaleValue) { // this.maxScaleValue = maxScaleValue; } /** * 设置当前刻度尺的刻度值,并滚动到相应的位置 * * @param scaleValue */ public void setScaleScroll(float scaleValue) { int scrollX = (int) ((scaleValue - 1.0f) * gap * unit); horizontalScrollView.smoothScrollTo(scrollX, 0); }}

另外用到一个自定义的scrollView：

public class MyHorizontalScrollView extends HorizontalScrollView { private OnScrollListener onScrollListener = null; public MyHorizontalScrollView(Context context) { this(context, null); } public MyHorizontalScrollView(Context context, AttributeSet attrs) { this(context, attrs, 0); } public MyHorizontalScrollView(Context context, AttributeSet attrs, int defStyleAttr) { super(context, attrs, defStyleAttr); } @Override protected void onScrollChanged(int l, int t, int oldl, int oldt) { super.onScrollChanged(l, t, oldl, oldt); if(onScrollListener != null){ onScrollListener.onScrollChanged(l, t, oldl, oldt); } } public interface OnScrollListener { public void onScrollChanged(int l, int t, int oldl, int oldt); } public void setOnScrollListener(OnScrollListener onScrollListener) { this.onScrollListener = onScrollListener; }}

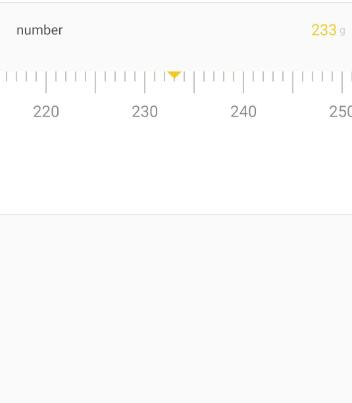

直尺上的黄色三角标其实是嵌在布局上的，在drawble文件中实现

<?xml version='1.0' encoding='utf-8'?><layer-list xmlns:android='http://schemas.android.com/apk/res/android'> <item android:id='@+id/shape_id'> <!--&lt;!&ndash; 正三角 &ndash;&gt;--> <!--<rotate--> <!--android:fromDegrees='45'--> <!--android:toDegrees='45'--> <!--android:pivotX='-40%'--> <!--android:pivotY='80%'>--> <!-- 倒三角 --> <rotate android:fromDegrees='45' android:toDegrees='45' android:pivotX='135%' android:pivotY='15%' > <shape android:shape='rectangle'><solid android:color='@color/main_yellow'/> </shape> </rotate> </item></layer-list>

下面是布局文件,注意RuleView是嵌在ScrollView中的：

<RelativeLayout android:layout_width='match_parent' android:layout_height='300px' android:layout_marginTop='30px' android:background='#fff'> <MyHorizontalScrollView android: android:layout_width='match_parent' android:layout_height='300px' android:scrollbars='none' > <RuleViewandroid: android:background='@color/main_white'android:layout_width='match_parent'android:layout_height='match_parent'android:layout_gravity='top'/> </MyHorizontalScrollView> <Viewandroid:layout_width='match_parent'android:layout_height='1px'android:background='@color/gray_bg'android:layout_centerHorizontal='true'android:layout_alignParentBottom='true' /> <Viewandroid:layout_width='30px'android:layout_height='30px'android:layout_centerHorizontal='true'android:layout_alignParentTop='true'android:background='@drawable/shape_triangle' /> </RelativeLayout>

最后在界面中的使用：

ruleView = (RuleView) findViewById(R.id.rule_view); horizontalScrollView = (MyHorizontalScrollView) findViewById(R.id.hor_scrollview); horizontalScrollView.setOverScrollMode(View.OVER_SCROLL_NEVER);// 去掉超出滑动后出现的阴影效果 // 设置水平滑动 ruleView.setHorizontalScrollView(horizontalScrollView); ruleView.setDefaultScaleValue(num); // 当滑动尺子的时候 horizontalScrollView.setOnScrollListener(new MyHorizontalScrollView.OnScrollListener() { @Override public void onScrollChanged(int l, int t, int oldl, int oldt) {ruleView.setScrollerChanaged(l, t, oldl, oldt); } }); ruleView.onChangedListener(new RuleView.onChangedListener() { @Override public void onSlide(float number) {int num = (int) (number * 10);tvNum.setText(num+''); } });
