Android Studio设置颜色拾色器工具Color Picker教程

你可能下载过一些获取颜色值的一些小工具，

这种方式获取颜色，需要先切换窗口转跳到桌面，然后打开拾色器小工具程序，然后去拾取颜色；

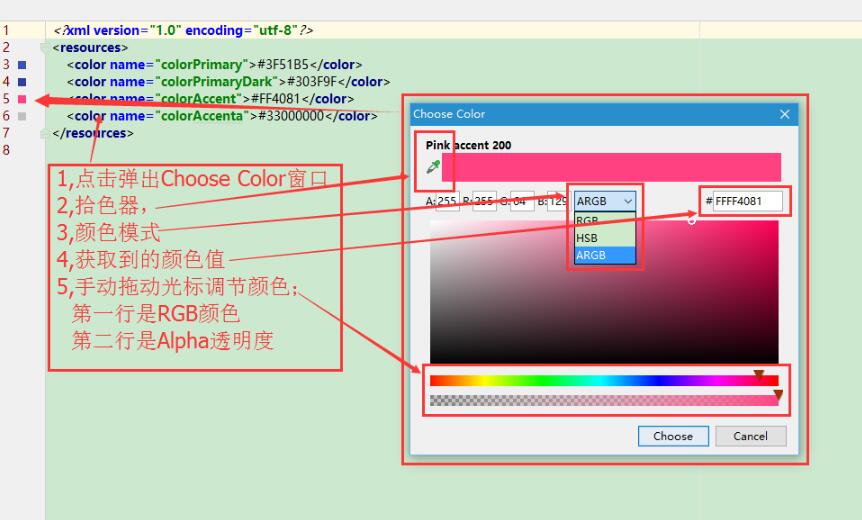

你可能也知道Android Studio自带一个颜色拾色器，通过下面这种方式才能找到

这种方式获取颜色值限制性很强，需要特定的窗口，需要点击那么一小块颜色才能弹出窗口，才能使用

那有没有更好的方式？ 答案是肯定的，不然这些个干嘛~~

不用向上面那样去打开拾色器小工具程序，不用在特定的窗口点击特定的位置弹出拾色器工具，是用我们最喜欢的快捷键的方式打开

Android Studio自带了颜色拾色器工具，但是它没有设置快捷键，也没有告诉我们， 这才是问题，

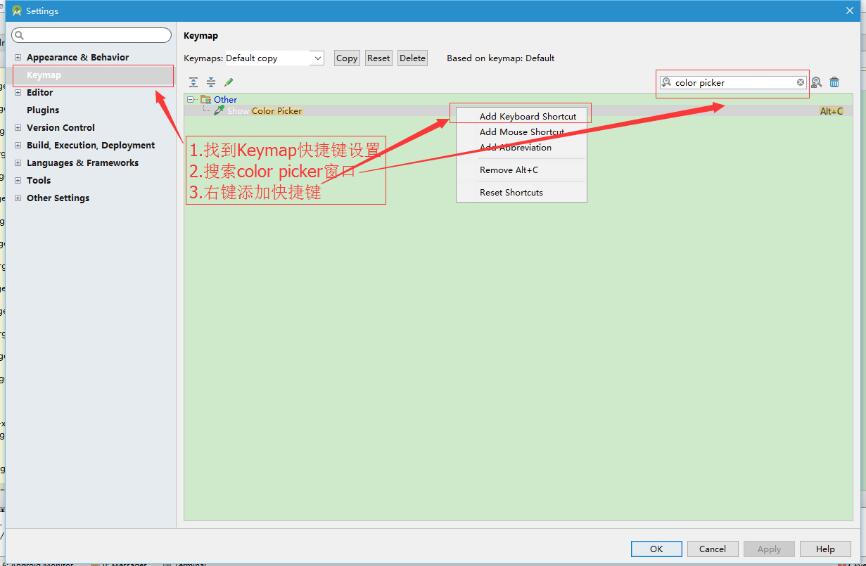

不罗嗦了，跟着下面的设置去设置快捷键吧

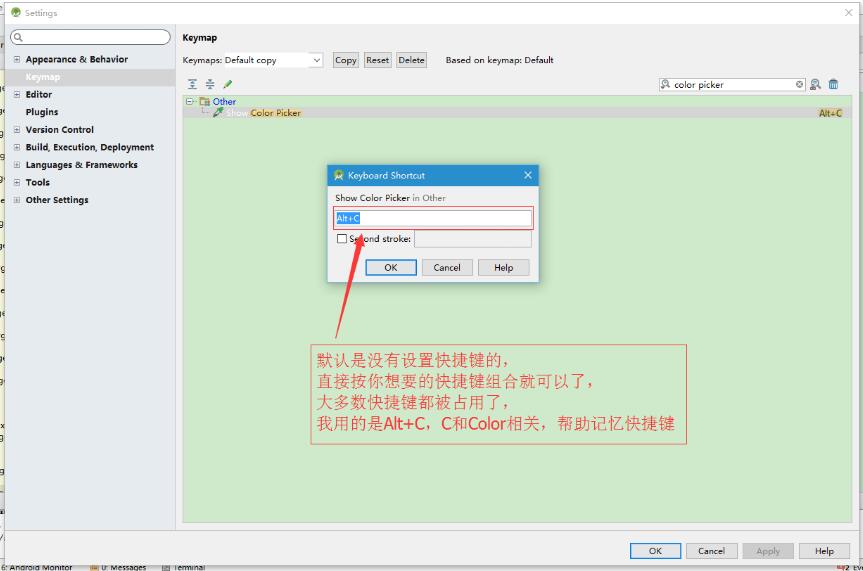

设置好之后Apply应用 + OK确认下就好了

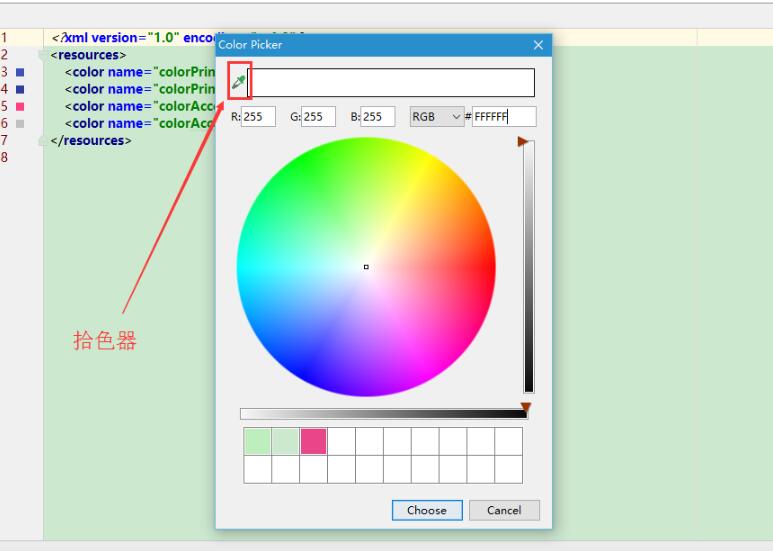

下面就能愉快的玩耍了，Alt+C~~

补充知识：Android 自定义一个简版的取色器ColorPicker

最近在一个项目中要用到修改颜色功能，于是搜索了一波android自定义取色器，虽然搜索结果很多，但是都不是令人十分满意（可能是用久了AndroidStudio自带取色器的原因，真的是太好用了有没有？）。

既然这么喜欢AS的调色板，何不自己撸一个？心动不如行动，马上动手！

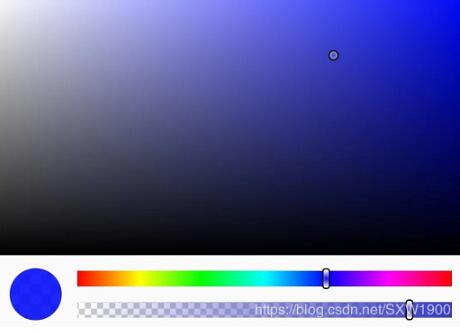

常规操作，先上效果图，简版取色器效果如下：

项目地址：

https://github.com/shixiuwen/colorpicker

布局单位使用的是dp，没有做其他过多适配操作，程序的源码很简单，可以直接clone下来修改成自己想要的效果或者做其他定制操作，直接使用的话，集成参考如下：

Step 1. Add the JitPack repository to your build file

//在根 build.gradle 中添加allprojects { repositories { ... maven { url ’https://jitpack.io’ } } }

Step 2. Add the dependency

//在模块 build.gradle 中添加dependencies { //v1.0.3是版本号，博客不会经常更新，最新版本见github implementation ’com.github.shixiuwen:colorpicker:v1.0.3’ }

调用示例：

// .xml文件中<com.shixia.colorpickerview.ColorPickerView android: android:layout_width='match_parent' android:layout_height='wrap_content' />

// Activity中final TextView tvTest = findViewById(R.id.tv_test);ColorPickerView colorPicker = findViewById(R.id.cpv_color_picker);//对控件进行回调监听，获取颜色值colorcolorPicker.setOnColorChangeListener(new OnColorChangeListener() { @Override public void colorChanged(int color) { tvTest.setBackgroundColor(color); }});

该控件的颜色变化过程是通过观察AndroidStudio取色板颜色变化规律而得到的，因为项目没有其他要求，所以目前没有提供其他公开方法可以供外部调用，有这方面需求的可以自己把库下载下来自动修改，有修改困难的可以邮件联系。另外，如果后面该库会收到几个start的话会考虑加一些其他功能，比如 布局适配、颜色初始化功能、常用颜色记录功能…… 等等。

以下是关键类代码：

package com.shixia.colorpickerview;import android.content.Context;import android.graphics.Color;import android.graphics.drawable.GradientDrawable;import android.util.AttributeSet;import android.view.LayoutInflater;import android.view.MotionEvent;import android.view.View;import android.widget.ImageView;import android.widget.LinearLayout;import android.widget.RelativeLayout;public class ColorPickerView extends LinearLayout { private final View llColorProgress; private final View vColorBar; private final View rlTransBar; private final View vTransBar; private final RelativeLayout.LayoutParams transBarLayoutParams; private int red = 255, green = 0, blue = 0; private int index = 0; private ColorPreviewView cpvColorPreview; private View vLocation; private View vBgColor; private final RelativeLayout.LayoutParams colorBarLayoutParams; private int transValue = 255; //透明度 private final ImageView vTransPreview; private OnColorChangeListener onColorChangeListener; private RelativeLayout.LayoutParams vLocationLayoutParams; public ColorPickerView(Context context, AttributeSet attrs) { super(context, attrs); View view = LayoutInflater.from(context).inflate(R.layout.view_color_picker, this); vBgColor = view.findViewById(R.id.fl_color); vLocation = view.findViewById(R.id.view_location); vLocationLayoutParams = (RelativeLayout.LayoutParams) vLocation.getLayoutParams(); llColorProgress = findViewById(R.id.ll_color_progress); cpvColorPreview = view.findViewById(R.id.cpv_color_preview); vColorBar = view.findViewById(R.id.view_color_bar); colorBarLayoutParams = (RelativeLayout.LayoutParams) vColorBar.getLayoutParams(); rlTransBar = view.findViewById(R.id.rl_trans_bar); vTransBar = view.findViewById(R.id.view_trans_bar); transBarLayoutParams = (RelativeLayout.LayoutParams) vTransBar.getLayoutParams(); vTransPreview = view.findViewById(R.id.view_trans_preview); /*调整颜色*/ llColorProgress.setOnTouchListener(new OnTouchListener() { @Override public boolean onTouch(View v, MotionEvent event) { int action = event.getAction(); int width = llColorProgress.getWidth(); switch (action) { case MotionEvent.ACTION_DOWN: break; case MotionEvent.ACTION_MOVE: break; case MotionEvent.ACTION_UP: break; } float leftMargin = event.getX(); float x = 0; if (leftMargin < vColorBar.getWidth() / 2) { colorBarLayoutParams.leftMargin = 0; } else if (leftMargin > width - vColorBar.getWidth() / 2) { x = 100; colorBarLayoutParams.leftMargin = width - vColorBar.getWidth(); } else { x = event.getX() / width * 100; colorBarLayoutParams.leftMargin = (int) (leftMargin - vColorBar.getWidth() / 2); } vColorBar.setLayoutParams(colorBarLayoutParams); onProgressChanged((int) x); return true; } }); /*调整透明度*/ rlTransBar.setOnTouchListener(new OnTouchListener() { @Override public boolean onTouch(View v, MotionEvent event) { int action = event.getAction(); int width = rlTransBar.getWidth(); switch (action) { case MotionEvent.ACTION_DOWN: break; case MotionEvent.ACTION_MOVE: break; case MotionEvent.ACTION_UP: break; } float leftMargin = event.getX(); float x = 0; if (leftMargin < vTransBar.getWidth() / 2) { transBarLayoutParams.leftMargin = 0; } else if (leftMargin > width - vTransBar.getWidth() / 2) { x = 100; transBarLayoutParams.leftMargin = width - vTransBar.getWidth(); } else { x = event.getX() / width * 100; transBarLayoutParams.leftMargin = (int) (leftMargin - vTransBar.getWidth() / 2); } vTransBar.setLayoutParams(transBarLayoutParams); changeTransparency((int) x); return true; } }); /*调整颜色明暗*/ vBgColor.setOnTouchListener(new OnTouchListener() { @Override public boolean onTouch(View v, MotionEvent event) { int width = vBgColor.getWidth(); int height = vBgColor.getHeight(); int action = event.getAction(); int leftMargin; int topMargin; switch (action) { case MotionEvent.ACTION_DOWN: break; case MotionEvent.ACTION_MOVE: //防止越界处理 if (event.getX() > width - vLocation.getWidth() / 2F) { leftMargin = width - vLocation.getWidth(); } else if (event.getX() < vLocation.getWidth() / 2F) { leftMargin = 0; } else { leftMargin = (int) (event.getX() - vLocation.getWidth() / 2F); } if (event.getY() > height - vLocation.getHeight() / 2F) { topMargin = height - vLocation.getHeight(); } else if (event.getY() <= vLocation.getHeight() / 2F) { topMargin = 0; } else { topMargin = (int) (event.getY() - vLocation.getHeight() / 2F); } vLocationLayoutParams.leftMargin = leftMargin; vLocationLayoutParams.topMargin = topMargin; vLocation.setLayoutParams(vLocationLayoutParams); changeColor(); break; case MotionEvent.ACTION_UP: break; } return true; } }); } /** * 颜色值调整 * * @param progressColor */ private void onProgressChanged(int progressColor) { red = 0; green = 0; blue = 0; index = (int) (progressColor / (100 / 6F)); float v = progressColor % (100 / 6F) / (100 / 6F); switch (index) { case 0: //红<-->中--绿 red = 255; green = (int) (255 * v); break; case 1://红--中<-->绿 red = (int) (255 * (1 - v)); green = 255; break; case 2: //绿<-->中--蓝 green = 255; blue = (int) (255 * v); break; case 3://绿--中<-->蓝 green = (int) (255 * (1 - v)); blue = 255; break; case 4: //蓝<-->中--红 blue = 255; red = (int) (255 * v); break; case 5://蓝--中<-->红 blue = (int) (255 * (1 - v)); red = 255; break; default: red = 255; break; } vBgColor.setBackgroundColor(Color.rgb(red, green, blue)); changeColor(); } /** * 颜色明暗度调整 */ private void changeColor() { int tempRed = red; int tempGreen = green; int tempBlue = blue; float hPercent = 1 - (vLocation.getX() / (vBgColor.getWidth() - vLocation.getWidth())); float vPercent = vLocation.getY() / (vBgColor.getHeight() - vLocation.getHeight()); switch (index) { case 0: tempGreen = (int) (green + hPercent * (255 - green)); tempBlue = (int) (blue + hPercent * (255 - blue)); break; case 1: tempRed = (int) (red + hPercent * (255 - red)); tempBlue = (int) (blue + hPercent * (255 - blue)); break; case 2: tempRed = (int) (red + hPercent * (255 - red)); tempBlue = (int) (blue + hPercent * (255 - blue)); break; case 3: tempRed = (int) (red + hPercent * (255 - red)); tempGreen = (int) (green + hPercent * (255 - green)); break; case 4: tempRed = (int) (red + hPercent * (255 - red)); tempGreen = (int) (green + hPercent * (255 - green)); break; case 5: case 6: tempGreen = (int) (green + hPercent * (255 - green)); tempBlue = (int) (blue + hPercent * (255 - blue)); break; } tempRed = (int) (tempRed - tempRed * vPercent); tempGreen = (int) (tempGreen - tempGreen * vPercent); tempBlue = (int) (tempBlue - tempBlue * vPercent); int color = Color.argb(transValue, tempRed, tempGreen, tempBlue); cpvColorPreview.setColor(color); if (onColorChangeListener != null) { onColorChangeListener.colorChanged(color); } int[] gradientColor = {Color.argb(0, 0, 0, 0), Color.rgb(tempRed, tempGreen, tempBlue)}; GradientDrawable drawable = new GradientDrawable(GradientDrawable.Orientation.LEFT_RIGHT, gradientColor); vTransPreview.setBackground(drawable); } /** * 改变透明度 * * @param progress */ private void changeTransparency(int progress) { transValue = (int) (progress / 100F * 255); int color = Color.argb(transValue, red, green, blue); cpvColorPreview.setColor(color); if (onColorChangeListener != null) { onColorChangeListener.colorChanged(color); } } @Override public void onWindowFocusChanged(boolean hasWindowFocus) { super.onWindowFocusChanged(hasWindowFocus); RelativeLayout.LayoutParams layoutParams = (RelativeLayout.LayoutParams) vLocation.getLayoutParams(); layoutParams.leftMargin = vBgColor.getWidth() - vLocation.getWidth(); vLocation.setLayoutParams(layoutParams); colorBarLayoutParams.leftMargin = llColorProgress.getWidth() - vColorBar.getWidth(); vColorBar.setLayoutParams(colorBarLayoutParams); transBarLayoutParams.leftMargin = rlTransBar.getWidth() - vTransBar.getWidth(); vTransBar.setLayoutParams(transBarLayoutParams); int[] color = {Color.argb(0, 0, 0, 0), Color.rgb(255, 0, 0)}; GradientDrawable drawable = new GradientDrawable(GradientDrawable.Orientation.LEFT_RIGHT, color); vTransPreview.setBackground(drawable); } /** * 设置该方法，颜色改变的时候会回调颜色值 * * @param onColorChangeListener */ public void setOnColorChangeListener(OnColorChangeListener onColorChangeListener) { this.onColorChangeListener = onColorChangeListener; }}

以上这篇Android Studio设置颜色拾色器工具Color Picker教程就是小编分享给大家的全部内容了，希望能给大家一个参考，也希望大家多多支持好吧啦网。
