SpringBoot MyBatis简单快速入门例子

MyBatis 是一款优秀的持久层框架，它支持自定义 SQL、存储过程以及高级映射。MyBatis 免除了几乎所有的 JDBC 代码以及设置参数和获取结果集的工作。MyBatis 可以通过简单的 XML 或注解来配置和映射原始类型、接口和 Java POJO（Plain Old Java Objects，普通老式 Java 对象）为数据库中的记录。

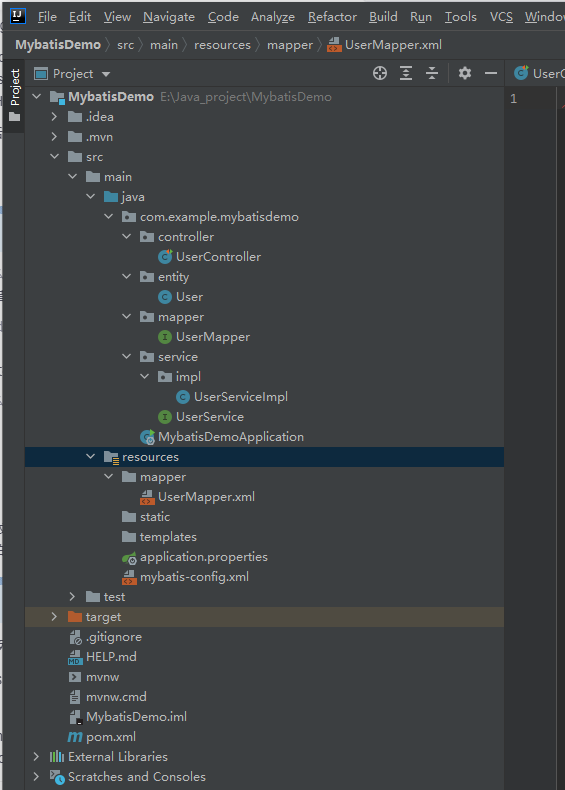

1、MyBatis工程总体目录结构

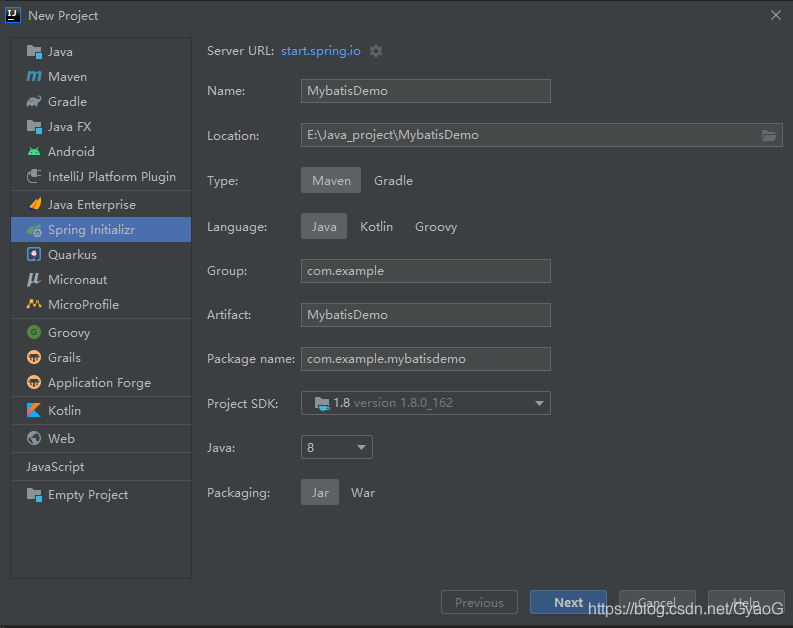

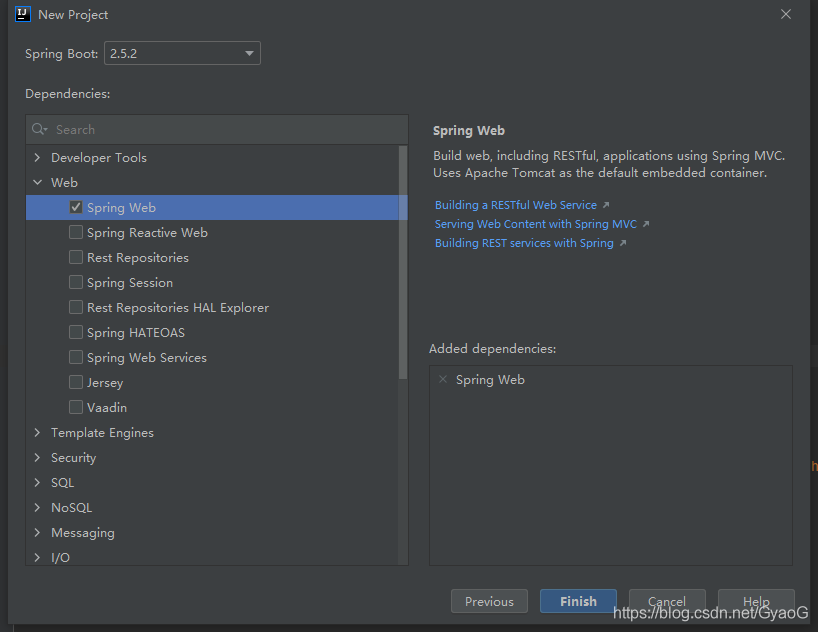

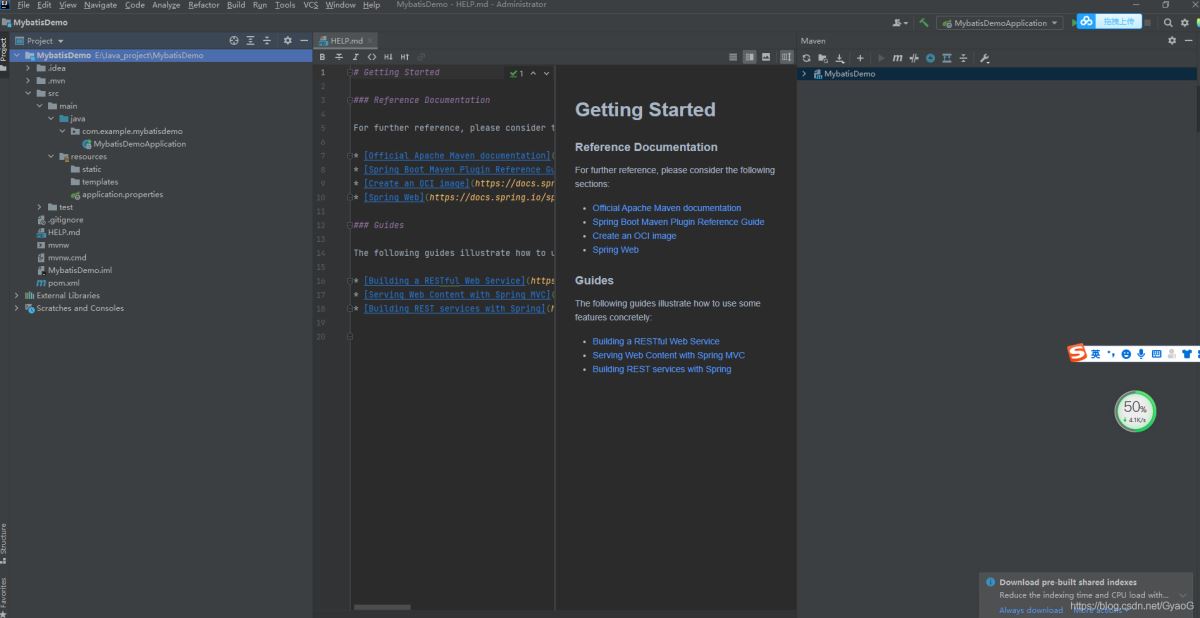

2、创建简单的SpringBoot工程

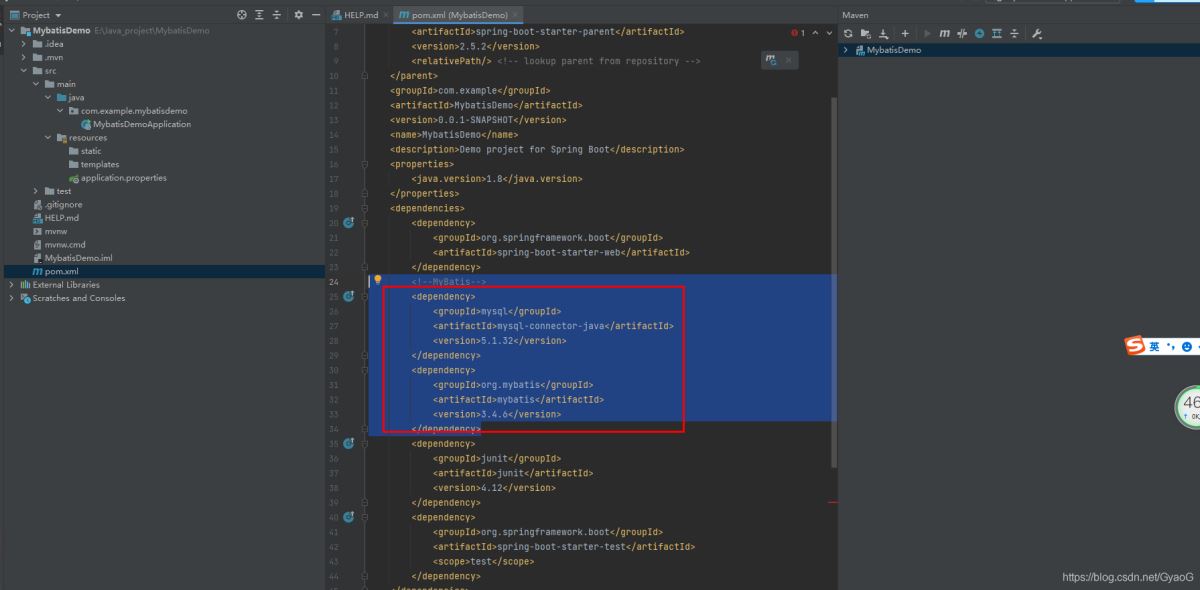

3、添加MyBatis依赖

<!--MyBatis--><dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>5.1.32</version></dependency><dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis</artifactId> <version>3.4.6</version></dependency>

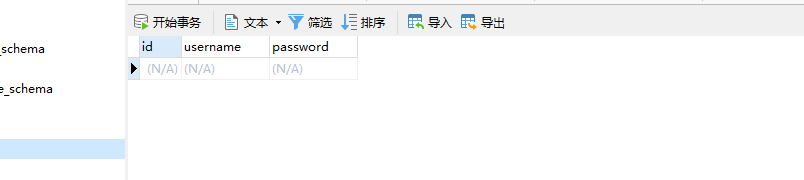

4、在数据库创建USER表

CREATE TABLE `user` ( `id` int(11) NOT NULL AUTO_INCREMENT, `username` varchar(20) NOT NULL DEFAULT ’’ COMMENT ’用户名’, `password` varchar(50) NOT NULL DEFAULT ’’ COMMENT ’密码’, PRIMARY KEY (`id`) USING BTREE) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 ROW_FORMAT=DYNAMIC;

5、在application.properties配置数据库连接信息

#数据库相关配置spring.datasource.driver-class-name=com.mysql.jdbc.Driverspring.datasource.url=jdbc:mysql://127.0.0.1:3306/test?useSSL=false&characterEncoding=utf8&allowMultiQueries=true&serverTimezone=Asia/Shanghai&useAffectedRows=truespring.datasource.username=rootspring.datasource.password=QQ796413#mybaits配置#mapper加载路径mybatis.mapper-locations= classpath:mapper/*.xml#实体包位置mybatis.type-aliases-package= com.example.mybatisdemo.entity#myatbis配置文件mybatis.config-location= classpath:mybatis-config.xml

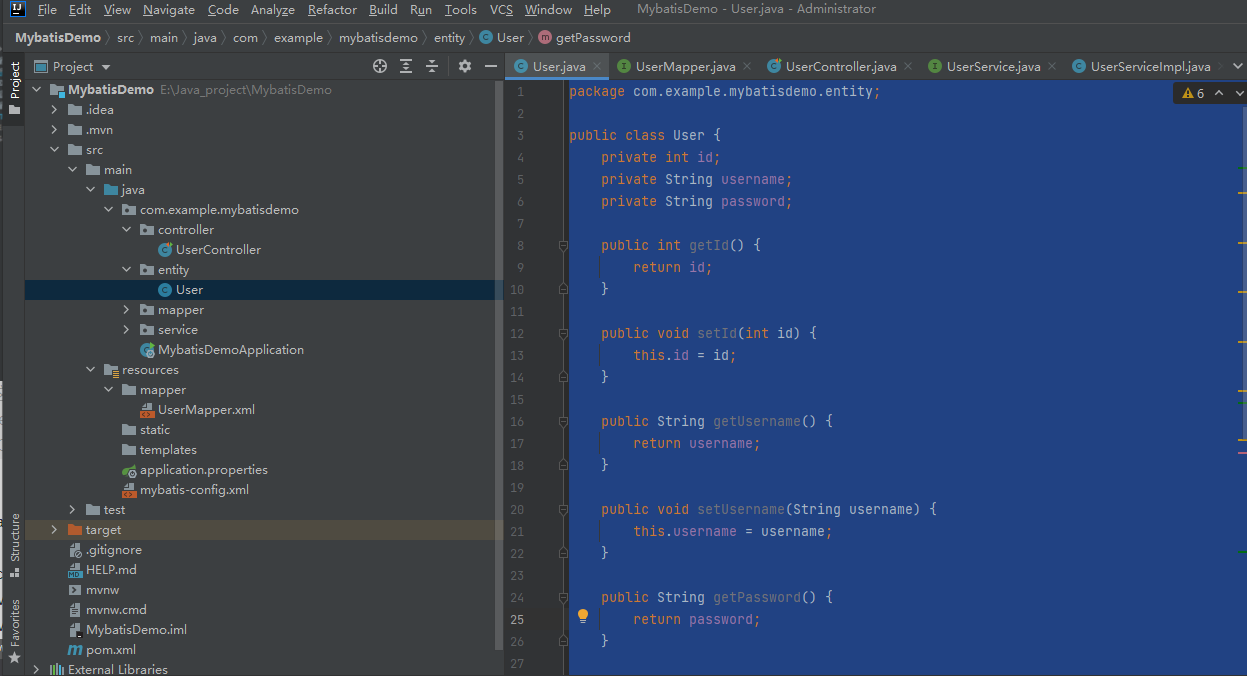

6、创建USER表对应的实体类

package com.example.mybatisdemo.entity;public class User { private int id; private String username; private String password; public int getId() {return id; } public void setId(int id) {this.id = id; } public String getUsername() {return username; } public void setUsername(String username) {this.username = username; } public String getPassword() {return password; } public void setPassword(String password) {this.password = password; } @Override public String toString() {return 'User{' +'id=' + id +', username=’' + username + ’’’ +', password=’' + password + ’’’ +’}’; }

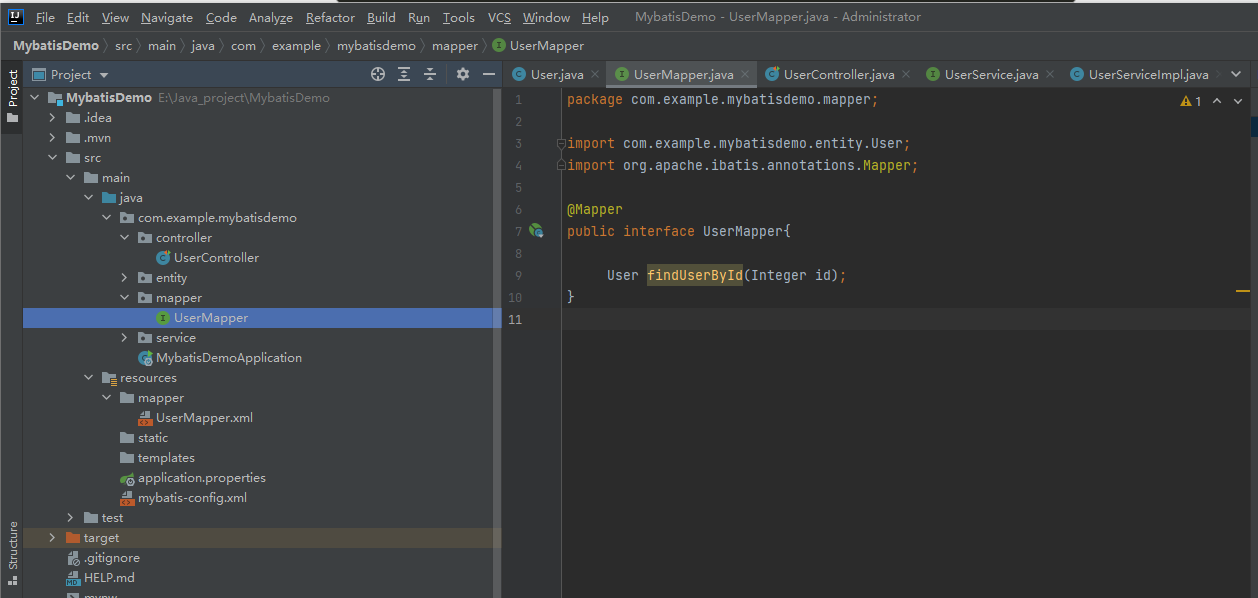

7、在mapper/UserMapper创建UserMapper.java

package com.example.mybatisdemo.mapper;import com.example.mybatisdemo.entity.User;import org.apache.ibatis.annotations.Mapper;@Mapperpublic interface UserMapper{ User findUserById(Integer id);}

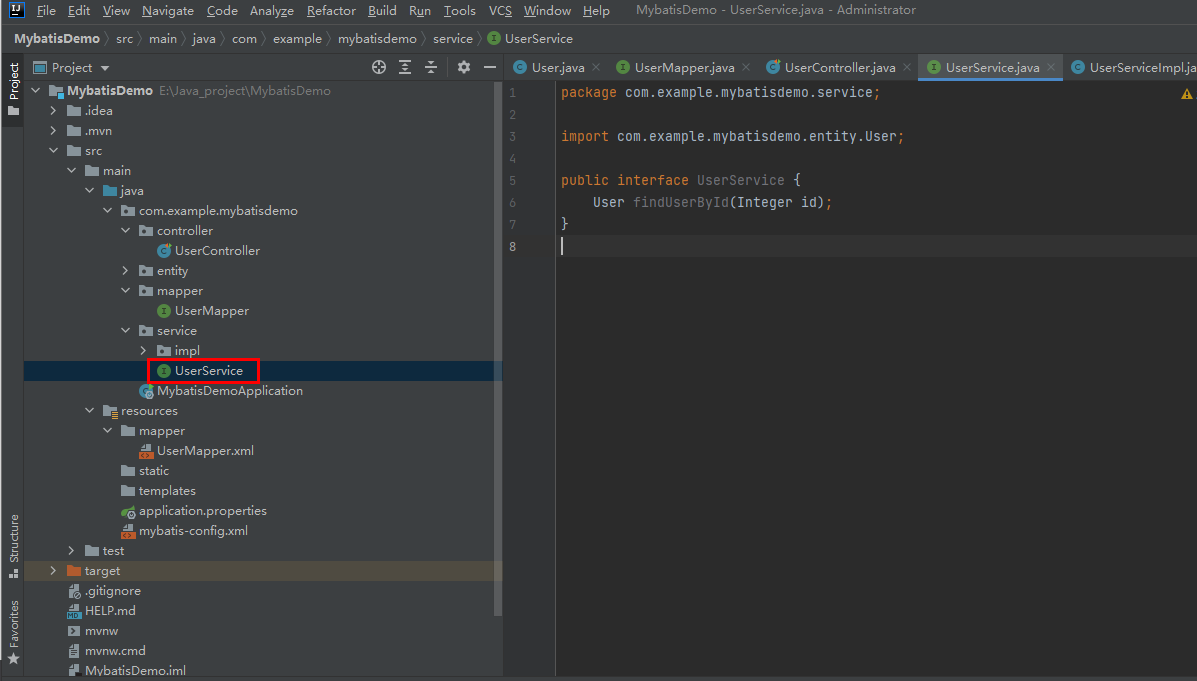

8、在service/UserService新建UserService.java

package com.example.mybatisdemo.service;import com.example.mybatisdemo.entity.User;public interface UserService { User findUserById(Integer id);}

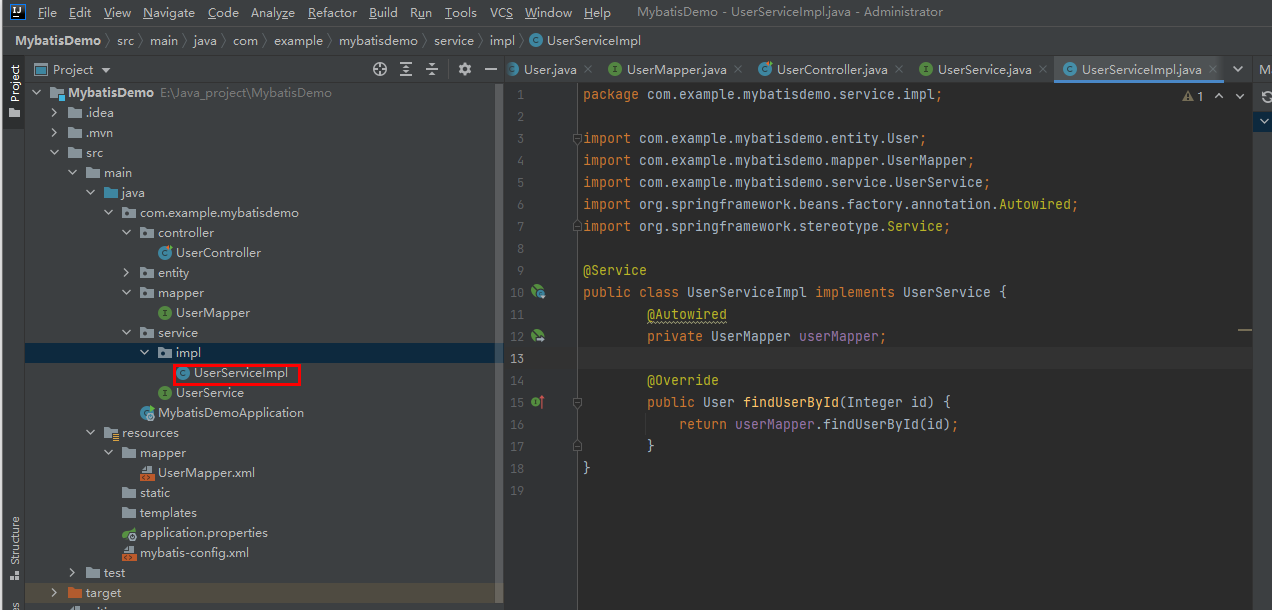

9、在service/impl/UserServiceImpl 创建UserServiceImpl.java

package com.example.mybatisdemo.service.impl;import com.example.mybatisdemo.entity.User;import com.example.mybatisdemo.mapper.UserMapper;import com.example.mybatisdemo.service.UserService;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Service;@Servicepublic class UserServiceImpl implements UserService {@Autowiredprivate UserMapper userMapper;@Overridepublic User findUserById(Integer id) { return userMapper.findUserById(id);}}

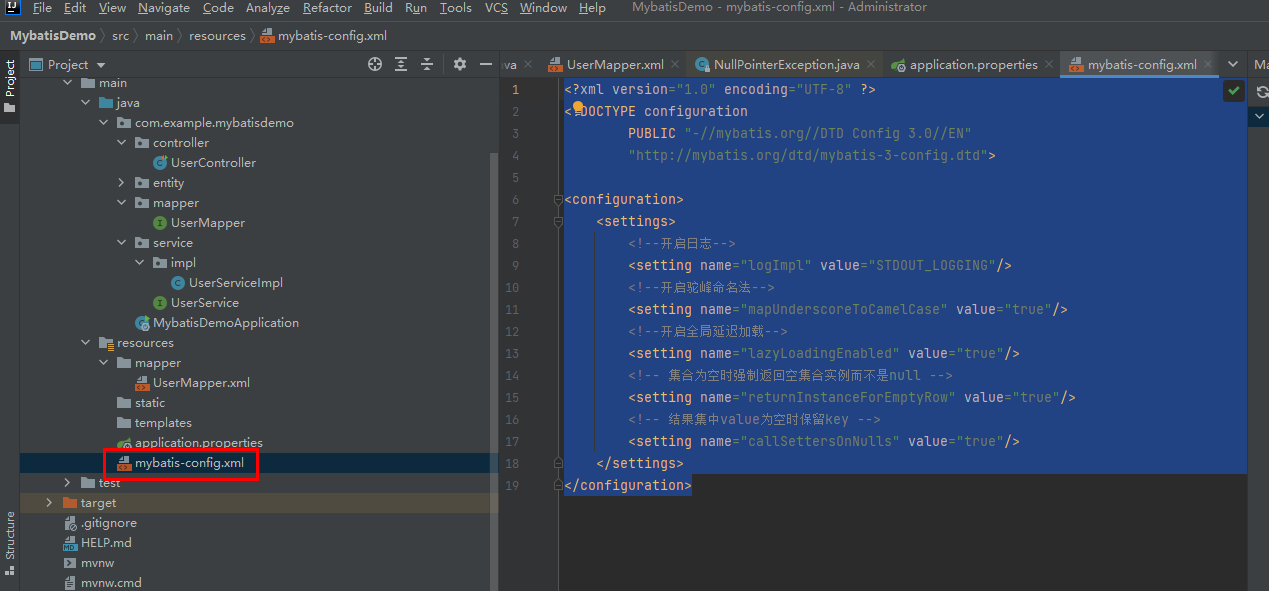

10、在resources下新建mybatis-conf.xml

<?xml version='1.0' encoding='UTF-8' ?><!DOCTYPE configurationPUBLIC '-//mybatis.org//DTD Config 3.0//EN''http://mybatis.org/dtd/mybatis-3-config.dtd'><configuration> <settings><!--开启日志--><setting name='logImpl' value='STDOUT_LOGGING'/><!--开启驼峰命名法--><setting name='mapUnderscoreToCamelCase' value='true'/><!--开启全局延迟加载--><setting name='lazyLoadingEnabled' value='true'/><!-- 集合为空时强制返回空集合实例而不是null --><setting name='returnInstanceForEmptyRow' value='true'/><!-- 结果集中value为空时保留key --><setting name='callSettersOnNulls' value='true'/> </settings></configuration>

11、在resources下mapper文件下创建UserMapper.xml

<?xml version='1.0' encoding='UTF-8'?><!DOCTYPE mapper PUBLIC '-//mybatis.org//DTD Mapper 3.0//EN' 'http://mybatis.org/dtd/mybatis-3-mapper.dtd'><!--注意：1.这里的namespace要是你usermapper的位置--><mapper namespace='com.example.mybatisdemo.mapper.UserMapper'> <!--注意这里的返回类型--> <resultMap type='com.example.mybatisdemo.entity.User'><result column='id' property='id'/><result column='username' property='username'/><result column='password' property='password'/> </resultMap> <!--2.id和你的方法名一样，resultMap为上面的id名一致--> <select resultMap='BaseResultMap'>select id, username, passwordfrom userwhere id= #{id,jdbcType=INTEGER} </select></mapper>

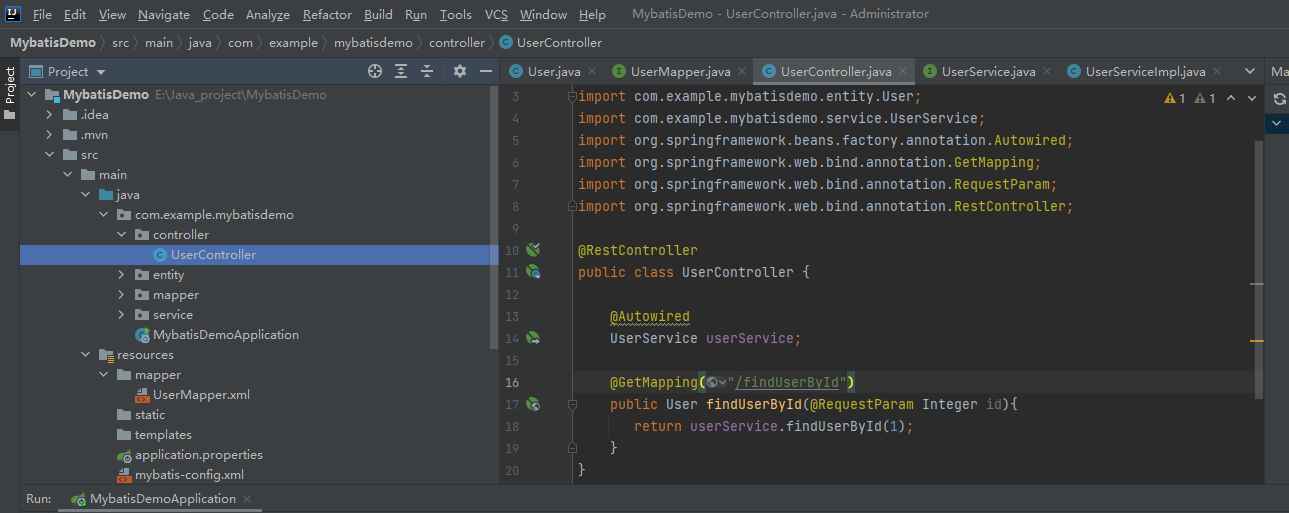

12、创建UserController.java

package com.example.mybatisdemo.controller;import com.example.mybatisdemo.entity.User;import com.example.mybatisdemo.service.UserService;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.GetMapping;import org.springframework.web.bind.annotation.RequestParam;import org.springframework.web.bind.annotation.RestController;@RestControllerpublic class UserController { @Autowired UserService userService; @GetMapping('/findUserById') public User findUserById(@RequestParam Integer id){ return userService.findUserById(1); }}

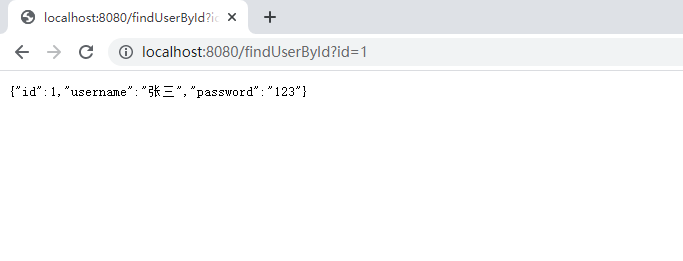

13、测试

工程可以去我的资源下载
