springboot+springsecurity如何实现动态url细粒度权限认证

谨记：Url表只储存受保护的资源，不在表里的资源说明不受保护，任何人都可以访问

1、MyFilterInvocationSecurityMetadataSource 类判断该访问路径是否被保护

@Component//用于设置受保护资源的权限信息的数据源public class MyFilterInvocationSecurityMetadataSource implementsFilterInvocationSecurityMetadataSource { @Bean public AntPathMatcher getAntPathMatcher(){return new AntPathMatcher(); }@Autowired //获取数据库中的保存的url Url表只储存受保护的资源，不在表里的资源说明不受保护，任何人都可以访问 private RightsMapper rightsMapper; @Autowired private AntPathMatcher antPathMatcher; @Override /* * @param 被调用的保护资源 * @return 返回能够访问该保护资源的角色集合，如果没有，则应返回空集合。 */ public Collection<ConfigAttribute> getAttributes(Object object) throws IllegalArgumentException {FilterInvocation fi = (FilterInvocation) object;//获取用户请求的UrlString url = fi.getRequestUrl();//先到数据库获取受权限控制的UrlList<Rights> us = rightsMapper.queryAll();//用于储存用户请求的Url能够访问的角色Collection<ConfigAttribute> rs=new ArrayList<ConfigAttribute>();for(Rights u:us){ if (u.getUrl() != null) {//逐一判断用户请求的Url是否和数据库中受权限控制的Url有匹配的if (antPathMatcher.match(u.getUrl(), url)) { //如果有则将可以访问该Url的角色储存到Collection<ConfigAttribute> rs.add(rightsMapper.queryById(u.getId()));} }}if(rs.size()>0) { return rs;}//没有匹配到,就说明此资源没有被控制，所有人都可以访问，返回null即可，返回null则不会进入之后的decide方法return null; } @Override public Collection<ConfigAttribute> getAllConfigAttributes() {// TODO 自动生成的方法存根return null; } @Override public boolean supports(Class<?> clazz) {// TODO 自动生成的方法存根return FilterInvocation.class.isAssignableFrom(clazz); }}

rights表中的部分内容：

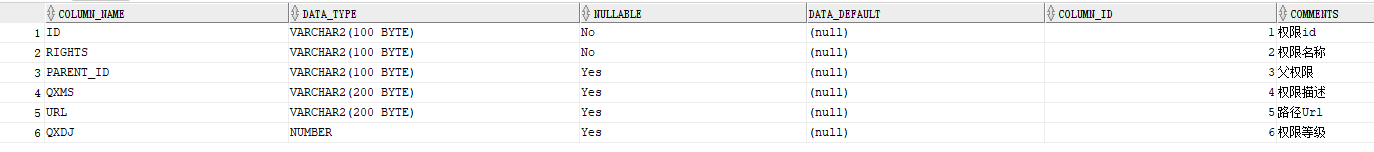

表结构

内容：

2、MyAccessDecisionManager 类判断该用户是否有权限访问

@Component//用于设置判断当前用户是否可以访问被保护资源的逻辑public class MyAccessDecisionManager implements AccessDecisionManager { @Override /* * @param 请求该保护资源的用户对象 * @param 被调用的保护资源 * @param 有权限调用该资源的集合 */ public void decide(Authentication authentication, Object object, Collection<ConfigAttribute> configAttributes) throws AccessDeniedException, InsufficientAuthenticationException {Iterator<ConfigAttribute> ite = configAttributes.iterator();//遍历configAttributes，查看当前用户是否有对应的权限访问该保护资源while (ite.hasNext()) { ConfigAttribute ca = ite.next(); String needRole = ca.getAttribute(); for (GrantedAuthority ga : authentication.getAuthorities()) {if (ga.getAuthority().equals(needRole)) { // 匹配到有对应角色,则允许通过 return;} }}// 该url有配置权限,但是当前登录用户没有匹配到对应权限,则禁止访问throw new AccessDeniedException('not allow'); } @Override public boolean supports(ConfigAttribute attribute) {return true; } @Override public boolean supports(Class<?> clazz) {return true; }}3、在SecurityConfig 类中配置说明

@EnableWebSecurity@EnableGlobalMethodSecurity(prePostEnabled = true)public class SecurityConfig extends WebSecurityConfigurerAdapter { @Autowired MyUserDetailsService myUserDetailsService; @Autowired private SendSmsSecurityConfig sendSmsSecurityConfig; @Autowired private MyAccessDecisionManager myAccessDecisionManager; @Autowired private MyFilterInvocationSecurityMetadataSource myFilterInvocationSecurityMetadataSource; //加密机制 @Bean public PasswordEncoder passwordEncoder() {return NoOpPasswordEncoder.getInstance(); // 不加密 } //认证 @Override protected void configure(AuthenticationManagerBuilder auth) throws Exception {auth.userDetailsService(myUserDetailsService).passwordEncoder(passwordEncoder()); } @Override protected void configure(HttpSecurity http) throws Exception {http.authorizeRequests()//对请求授权.antMatchers('/**').permitAll().anyRequest()//任何请求.authenticated()//登录后访问.withObjectPostProcessor(new ObjectPostProcessor<FilterSecurityInterceptor>() { @Override public <O extends FilterSecurityInterceptor> O postProcess( O fsi) {fsi.setSecurityMetadataSource(myFilterInvocationSecurityMetadataSource);fsi.setAccessDecisionManager(myAccessDecisionManager);return fsi; }}).and().csrf().disable(); }}

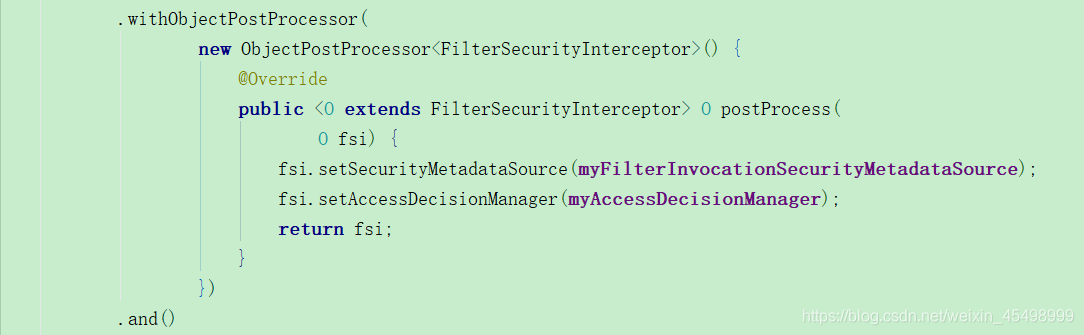

配置如下代码：

至此完成所有配置！！！

SpringSecurity解决公共接口自定义权限验证失效问题，和源码分析背景：

自定义权限认证，一部分接口必须要有相应的角色权限，一部分接口面向所有访问者，一部分接口任何人都不能访问。但是在使用 SpringSecurity的过程中发现，框架会将没有指定角色列表的URL资源直接放行，不做拦截。

用户登录认证成功后，携带Token访问URL资源，spring security 根据Token（请求头Authorization中）来分辨不同用户。

用户权限数据源是一个Map：以 URL资源为Key，以有权访问的Key的角色列表为Value。

使用时发现当一个接口有Key，但是Value为空或null时，spring security 框架自动放行，导致了权限失效问题。

解决方法有两种：

第一种方法：

默认rejectPublicInvocations为false。

对需要控制权限的URL资源添加标志，以防止roleList为空，跳过了权限验证.

公共权限设置为null，不进行权限验证

第二种方法：

配置rejectPublicInvocations为true

此后roleList为空，或者没有找到URL资源时，都为拒绝访问

需要控制权限的URL资源，即使对应角色为空，也会进行权限验证

公共权限设置为所有角色和匿名角色，不进行权限验证

package org.springframework.security.access.intercept;/** * 对安全对象(访问请求+用户主体)拦截的抽象类源码 */public abstract class AbstractSecurityInterceptor implements InitializingBean, ApplicationEventPublisherAware, MessageSourceAware {// ... 其他方法省略protected InterceptorStatusToken beforeInvocation(Object object) {Assert.notNull(object, 'Object was null');final boolean debug = logger.isDebugEnabled();if (!getSecureObjectClass().isAssignableFrom(object.getClass())) {throw new IllegalArgumentException('Security invocation attempted for object '+ object.getClass().getName()+ ' but AbstractSecurityInterceptor only configured to support secure objects of type: '+ getSecureObjectClass());}// 从权限数据源获取了当前 <URL资源> 对应的 <角色列表>Collection<ConfigAttribute> attributes = this.obtainSecurityMetadataSource().getAttributes(object);// 框架在此处判断URL资源对应的角色列表是否为空if (attributes == null || attributes.isEmpty()) {// rejectPublicInvocations默认为false // 可以配置为true，即角色列表为空的时候不进行放行if (rejectPublicInvocations) {throw new IllegalArgumentException('Secure object invocation '+ object+ ' was denied as public invocations are not allowed via this interceptor. '+ 'This indicates a configuration error because the '+ 'rejectPublicInvocations property is set to ’true’');}if (debug) {logger.debug('Public object - authentication not attempted');}publishEvent(new PublicInvocationEvent(object));return null; // no further work post-invocation}if (debug) {logger.debug('Secure object: ' + object + '; Attributes: ' + attributes);}// 如果当前用户权限对象为nullif (SecurityContextHolder.getContext().getAuthentication() == null) {credentialsNotFound(messages.getMessage('AbstractSecurityInterceptor.authenticationNotFound','An Authentication object was not found in the SecurityContext'),object, attributes);}Authentication authenticated = authenticateIfRequired();// Attempt authorization，此处调用accessDecisionManager 进行鉴权try {this.accessDecisionManager.decide(authenticated, object, attributes);}catch (AccessDeniedException accessDeniedException) {publishEvent(new AuthorizationFailureEvent(object, attributes, authenticated,accessDeniedException));throw accessDeniedException;}if (debug) {logger.debug('Authorization successful');}if (publishAuthorizationSuccess) {publishEvent(new AuthorizedEvent(object, attributes, authenticated));}// Attempt to run as a different user，这里可以另外配置或修改用户的权限对象，特殊场景使用Authentication runAs = this.runAsManager.buildRunAs(authenticated, object,attributes);if (runAs == null) {if (debug) {logger.debug('RunAsManager did not change Authentication object');}// no further work post-invocationreturn new InterceptorStatusToken(SecurityContextHolder.getContext(), false,attributes, object);}else {if (debug) {logger.debug('Switching to RunAs Authentication: ' + runAs);}SecurityContext origCtx = SecurityContextHolder.getContext();SecurityContextHolder.setContext(SecurityContextHolder.createEmptyContext());SecurityContextHolder.getContext().setAuthentication(runAs);// need to revert to token.Authenticated post-invocationreturn new InterceptorStatusToken(origCtx, true, attributes, object);}}// ... 其他方法略}

以上为个人经验，希望能给大家一个参考，也希望大家多多支持好吧啦网。
