springboot整合freemarker代码自动生成器
实现功能：MyBatis 逆向工程
技术架构页面是用 Vue ，element-ui开发；网络请求是 Axios。服务端是 Spring Boot页面模版是 Freemarker：

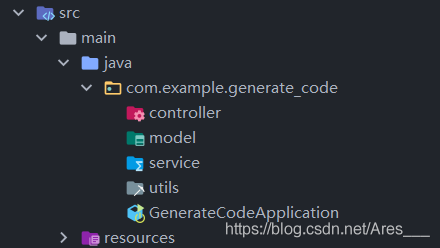

1.所需包结构
2.在model包中创建Db类
作用：用于接受前端传来数据库连接相关的值(username，password,url)
package com.example.generate_code.model;/** * @author: 王泽 */public class Db { private String username; private String password; private String url; public String getUsername() {return username; } public void setUsername(String username) {this.username = username; } public String getPassword() {return password; } public void setPassword(String password) {this.password = password; } public String getUrl() {return url; } public void setUrl(String url) {this.url = url; }}
3.在model中创建RespBean类
自定义响应类，返回数据更方便
package com.example.generate_code.model;/** * @author: 王泽 */public class RespBean { private Integer status; private String msg; private Object obj; public static RespBean ok(String msg,Object obj) {return new RespBean(200, msg, obj); } public static RespBean ok(String msg) {return new RespBean(200, msg, null); } public static RespBean error(String msg,Object obj) {return new RespBean(500, msg, obj); } public static RespBean error(String msg) {return new RespBean(500, msg, null); } private RespBean() { } private RespBean(Integer status, String msg, Object obj) {this.status = status;this.msg = msg;this.obj = obj; } public Integer getStatus() {return status; } public void setStatus(Integer status) {this.status = status; } public String getMsg() {return msg; } public void setMsg(String msg) {this.msg = msg; } public Object getObj() {return obj; } public void setObj(Object obj) {this.obj = obj; }}
4.在Utils中创建DBUtils
JDBC连接工具类
public class DbUtils { private static Connection connection; public static Connection getConnection() {return connection; } public static Connection initDb(Db db) {if (connection == null) { try {Class.forName('com.mysql.cj.jdbc.Driver');connection = DriverManager.getConnection(db.getUrl(), db.getUsername(), db.getPassword()); } catch (ClassNotFoundException | SQLException e) {e.printStackTrace(); }}return connection; }}
5.写一个连接接口DbController
连接数据库
@RestControllerpublic class DbController { @PostMapping('/connect') public RespBean connect(@RequestBody Db db) {Connection con = DBUtils.initDb(db);if (con != null) { return RespBean.ok('数据库连接成功');}return RespBean.error('数据库连接失败'); }}

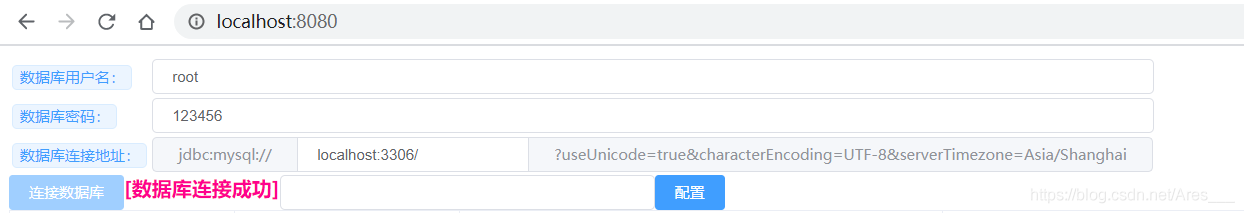

6.创建index页面
<!DOCTYPE html><html lang='en'><head> <meta charset='UTF-8'> <title>代码生成工具</title> <script src='https://cdn.jsdelivr.net/npm/vue/dist/vue.js'></script> <!-- 引入样式 --> <link rel='stylesheet' href='https://unpkg.com/element-ui/lib/theme-chalk/index.css'> <!-- 引入组件库 --> <script src='https://unpkg.com/element-ui/lib/index.js'></script> <script src='https://cdn.jsdelivr.net/npm/axios/dist/axios.min.js'></script></head><body><div id='app'> <table><tr> <td><el-tag size='mini'>数据库用户名：</el-tag> </td> <td><el-input size='mini' v-model='db.username'></el-input> </td></tr><tr> <td><el-tag size='mini'>数据库密码：</el-tag> </td> <td><el-input size='mini' v-model='db.password'></el-input> </td></tr><tr> <td><el-tag size='mini'>数据库连接地址：</el-tag> </td> <td><el-input size='mini' v-model='db.url'> <template slot='prepend'>jdbc:mysql://</template> <template slot='append'>?useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai </template></el-input> </td></tr> </table> <div style='display: flex'><el-button type='primary' size='mini' @click='connect' :disabled='!connectBtnEnabled'>连接数据库</el-button><div style='color: #ff018d;font-weight: bold'>[{{msg}}]</div><el-input v-model='packageName' size='mini' style='width: 300px'></el-input><el-button type='primary' size='mini' @click='config'>配置</el-button> </div></div><script> new Vue({el: '#app',data: function () { return {packageName: ’’,msg: ’数据库未连接’,connectBtnEnabled: true,db: { username: 'root', password: '123456', url: 'localhost:3306/'} }},methods: { connect() {let _this = this;this.db.url = 'jdbc:mysql://' + this.db.url + '?useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai';axios.post(’/connect’, this.db) .then(function (response) {_this.msg = response.data.msg;_this.db = { username: 'root', password: '123456', url: 'localhost:3306/'}_this.connectBtnEnabled = false; }) .catch(function (error) {console.log(error); }); }} })</script></body></html>
1.服务器端编写
ColumnClass 用来描述表中的每一列
package com.example.generate_code.model;/** * @author: 王泽 */public class ColumnClass { private String propertyName; //对应java属性的名字 private String columnName; //数据库中的名字 private String type;//字段类型 private String remark; //备注 private Boolean isPrimary; //字段是不是一个主键 @Override public String toString() {return 'ColumnClass{' +'propertyName=’' + propertyName + ’’’ +', columnName=’' + columnName + ’’’ +', type=’' + type + ’’’ +', remark=’' + remark + ’’’ +', isPrimary=' + isPrimary +’}’; } public String getPropertyName() {return propertyName; } public void setPropertyName(String propertyName) {this.propertyName = propertyName; } public String getColumnName() {return columnName; } public void setColumnName(String columnName) {this.columnName = columnName; } public String getType() {return type; } public void setType(String type) {this.type = type; } public String getRemark() {return remark; } public void setRemark(String remark) {this.remark = remark; } public Boolean getPrimary() {return isPrimary; } public void setPrimary(Boolean primary) {isPrimary = primary; }}
描述一个具体的表的信息 TableClass
package com.example.generate_code.model;import java.util.List;/** * @author: 王泽 */public class TableClass { private String tableName; //表名 ，以下是生成的名字 private String modelName; private String serviceName; private String mapperName; private String controllerName; private String packageName; private List<ColumnClass> columns; // 字段 @Override public String toString() {return 'TableClass{' +'tableName=’' + tableName + ’’’ +', modelName=’' + modelName + ’’’ +', serviceName=’' + serviceName + ’’’ +', mapperName=’' + mapperName + ’’’ +', controllerName=’' + controllerName + ’’’ +', packageName=’' + packageName + ’’’ +', columns=' + columns +’}’; } public String getTableName() {return tableName; } public void setTableName(String tableName) {this.tableName = tableName; } public String getModelName() {return modelName; } public void setModelName(String modelName) {this.modelName = modelName; } public String getServiceName() {return serviceName; } public void setServiceName(String serviceName) {this.serviceName = serviceName; } public String getMapperName() {return mapperName; } public void setMapperName(String mapperName) {this.mapperName = mapperName; } public String getControllerName() {return controllerName; } public void setControllerName(String controllerName) {this.controllerName = controllerName; } public String getPackageName() {return packageName; } public void setPackageName(String packageName) {this.packageName = packageName; } public List<ColumnClass> getColumns() {return columns; } public void setColumns(List<ColumnClass> columns) {this.columns = columns; }}创建配置接口Controller
用map来接受前端传来的数据
用到了谷歌提供的工具包guava，需要导入依赖
@PostMapping('/config') public RespBean config(@RequestBody Map<String, String> map) {String packageName = map.get('packageName');try { Connection connection = DBUtils.getConnection(); DatabaseMetaData metaData = connection.getMetaData(); ResultSet tables = metaData.getTables(connection.getCatalog(), null, null, null); List<TableClass> tableClassList = new ArrayList<>(); while (tables.next()) {TableClass tableClass = new TableClass();tableClass.setPackageName(packageName);String table_name = tables.getString('TABLE_NAME');String modelName = CaseFormat.LOWER_UNDERSCORE.to(CaseFormat.UPPER_CAMEL, table_name);tableClass.setTableName(table_name);tableClass.setModelName(modelName);tableClass.setControllerName(modelName + 'Controller');tableClass.setMapperName(modelName + 'Mapper');tableClass.setServiceName(modelName+'Service');tableClassList.add(tableClass); } return RespBean.ok('数据库信息读取成功', tableClassList);} catch (Exception e) { e.printStackTrace();}return RespBean.error('数据库信息读取失败'); }
<dependency> <groupId>com.google.guava</groupId> <artifactId>guava</artifactId> <version>30.1-jre</version></dependency>

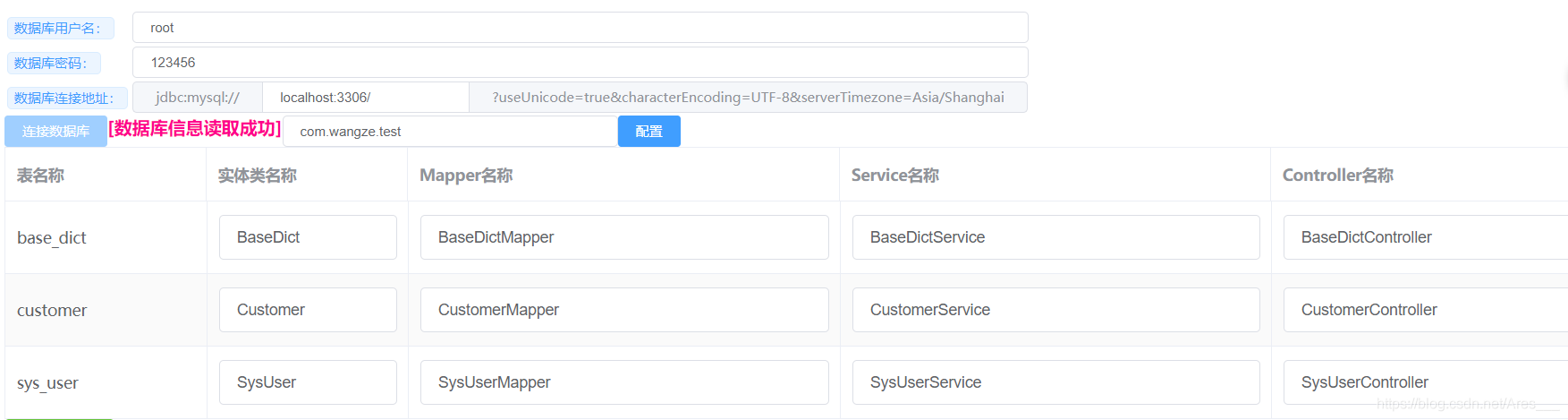

2.完善index页面
<!DOCTYPE html><html lang='en'><head> <meta charset='UTF-8'> <title>代码生成工具</title> <script src='https://cdn.jsdelivr.net/npm/vue/dist/vue.js'></script> <!-- 引入样式 --> <link rel='stylesheet' href='https://unpkg.com/element-ui/lib/theme-chalk/index.css'> <!-- 引入组件库 --> <script src='https://unpkg.com/element-ui/lib/index.js'></script> <script src='https://cdn.jsdelivr.net/npm/axios/dist/axios.min.js'></script></head><body><div id='app'> <table><tr> <td><el-tag size='mini'>数据库用户名：</el-tag> </td> <td><el-input size='mini' v-model='db.username'></el-input> </td></tr><tr> <td><el-tag size='mini'>数据库密码：</el-tag> </td> <td><el-input size='mini' v-model='db.password'></el-input> </td></tr><tr> <td><el-tag size='mini'>数据库连接地址：</el-tag> </td> <td><el-input size='mini' v-model='db.url'> <template slot='prepend'>jdbc:mysql://</template> <template slot='append'>?useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai </template></el-input> </td></tr> </table> <div style='display: flex'><el-button type='primary' size='mini' @click='connect' :disabled='!connectBtnEnabled'>连接数据库</el-button><div style='color: #ff018d;font-weight: bold'>[{{msg}}]</div><el-input v-model='packageName' size='mini' style='width: 300px'></el-input><el-button type='primary' size='mini' @click='config'>配置</el-button> </div> <el-table :data='tableData' stripe border style='width: 100%'><el-table-columnprop='tableName'label='表名称'width='180'></el-table-column><el-table-columnlabel='实体类名称'width='180'> <template slot-scope='scope'><el-input v-model='scope.row.modelName'></el-input> </template></el-table-column><el-table-columnlabel='Mapper名称'> <template slot-scope='scope'><el-input v-model='scope.row.mapperName'></el-input> </template></el-table-column><el-table-columnlabel='Service名称'> <template slot-scope='scope'><el-input v-model='scope.row.serviceName'></el-input> </template></el-table-column><el-table-columnlabel='Controller名称'> <template slot-scope='scope'><el-input v-model='scope.row.controllerName'></el-input> </template></el-table-column> </el-table> <div><el-button @click='generateCode' type='success'>生成代码</el-button><div style='color: #ff0114;font-weight: bold'>*{{result}}*</div><div>{{codePath}}</div> </div></div><script> new Vue({el: '#app',data: function () { return {tableData: [],packageName: ’com.wangze.test’,msg: ’数据库未连接’,connectBtnEnabled: true,db: { username: 'root', password: '123456', url: 'localhost:3306/'} }},methods: { generateCode() {let _this = this;axios.post(’/generateCode’, this.tableData) .then(function (response) {_this.result = response.data.msg;_this.codePath = response.data.obj; }) .catch(function (error) { }); }, config() {let _this = this;axios.post(’/config’, {packageName: this.packageName}) .then(function (response) {_this.msg = response.data.msg;_this.tableData = response.data.obj; }) .catch(function (error) {console.log(error); }); }, connect() {let _this = this;this.db.url = 'jdbc:mysql://' + this.db.url + '?useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai';axios.post(’/connect’, this.db) .then(function (response) {_this.msg = response.data.msg;_this.db = { username: 'root', password: '123456', url: 'localhost:3306/'}_this.connectBtnEnabled = false; }) .catch(function (error) {console.log(error); }); }} })</script></body></html>
1.创建模板 Model.java.ftl
package ${packageName}.model;import java.util.Date;public class ${modelName}{ <#if columns??><#list columns as column> <#if column.type=’VARCHAR’||column.type=’TEXT’||column.type=’CHAR’>/*** ${column.remark}*/private String ${column.propertyName?uncap_first}; </#if> <#if column.type=’INT’>/*** ${column.remark}*/private Integer ${column.propertyName?uncap_first}; </#if> <#if column.type=’DATETIME’>/*** ${column.remark}*/private Date ${column.propertyName?uncap_first}; </#if> <#if column.type=’BIGINT’>/*** ${column.remark}*/private Long ${column.propertyName?uncap_first}; </#if> <#if column.type=’DOUBLE’>/*** ${column.remark}*/private Double ${column.propertyName?uncap_first}; </#if> <#if column.type=’BIT’>/*** ${column.remark}*/private Boolean ${column.propertyName?uncap_first}; </#if></#list> </#if> <#if columns??><#list columns as column> <#if column.type=’VARCHAR’||column.type=’TEXT’||column.type=’CHAR’>public String get${column.propertyName}(){ return ${column.propertyName?uncap_first};}public void set${column.propertyName}(String ${column.propertyName?uncap_first}){ this.${column.propertyName?uncap_first}=${column.propertyName?uncap_first};} </#if> <#if column.type=’INT’>public Integer get${column.propertyName}(){return ${column.propertyName?uncap_first};}public void set${column.propertyName}(Integer ${column.propertyName?uncap_first}){this.${column.propertyName?uncap_first}=${column.propertyName?uncap_first};} </#if> <#if column.type=’DATETIME’>public Date get${column.propertyName}(){return ${column.propertyName?uncap_first};}public void set${column.propertyName}(Date ${column.propertyName?uncap_first}){this.${column.propertyName?uncap_first}=${column.propertyName?uncap_first};} </#if> <#if column.type=’BIGINT’>public Long get${column.propertyName}(){return ${column.propertyName?uncap_first};}public void set${column.propertyName}(Long ${column.propertyName?uncap_first}){this.${column.propertyName?uncap_first}=${column.propertyName?uncap_first};} </#if> <#if column.type=’DOUBLE’>public Double get${column.propertyName}(){return ${column.propertyName?uncap_first};}public void set${column.propertyName}(Double ${column.propertyName?uncap_first}){this.${column.propertyName?uncap_first}=${column.propertyName?uncap_first};} </#if> <#if column.type=’BIT’>public Boolean get${column.propertyName}(){return ${column.propertyName?uncap_first};}public void set${column.propertyName}(Boolean ${column.propertyName?uncap_first}){this.${column.propertyName?uncap_first}=${column.propertyName?uncap_first};} </#if></#list> </#if>}
Service.java.ftl
package ${packageName}.service;import ${packageName}.model.${modelName};import ${packageName}.mapper.${mapperName};import org.springframework.stereotype.Service;import org.springframework.beans.factory.annotation.Autowired;import java.util.List;@Servicepublic class ${serviceName}{ @Autowired ${mapperName} ${mapperName?uncap_first}; public List<${modelName}> getAll${modelName}s(){return ${mapperName?uncap_first}.getAll${modelName}s(); }}
Controller.java.ftl
package ${packageName}.controller;import ${packageName}.model.${modelName};import ${packageName}.service.${serviceName};import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.RestController;import org.springframework.web.bind.annotation.GetMapping;import java.util.List;@RestControllerpublic class ${controllerName}{ @Autowired ${serviceName} ${serviceName?uncap_first}; @GetMapping('/${modelName?lower_case}s') public List<${modelName}> getAll${modelName}s(){return ${serviceName?uncap_first}.getAll${modelName}s(); }}
Mapper.java.ftl
package ${packageName}.mapper;import ${packageName}.model.${modelName};import org.apache.ibatis.annotations.Mapper;import java.util.List;@Mapperpublic interface ${mapperName}{ List<${modelName}> getAll${modelName}s();}
Mapper.xml.ftl
<!DOCTYPE mapperPUBLIC '-//mybatis.org//DTD Mapper 3.0//EN''http://mybatis.org/dtd/mybatis-3-mapper.dtd'><mapper namespace='${packageName}.mapper.${mapperName}'> <resultMap type='${packageName}.model.${modelName}'><#list columns as column> <<#if column.primary??>id<#else>result</#if> column='${column.columnName}' property='${column.propertyName?uncap_first}' jdbcType='<#if column.type=’INT’>INTEGER<#elseif column.type=’DATETIME’>TIMESTAMP<#elseif column.type=’TEXT’>VARCHAR<#else>${column.type}</#if>' /></#list> </resultMap> <select resultMap='BaseResultMap'>select * from ${tableName}; </select></mapper>
2.代码生成Controller
package com.example.generate_code.controller;import com.example.generate_code.model.RespBean;import com.example.generate_code.model.TableClass;import com.example.generate_code.service.GenerateCodeService;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.PostMapping;import org.springframework.web.bind.annotation.RequestBody;import org.springframework.web.bind.annotation.RestController;import javax.servlet.http.HttpServletRequest;import java.util.List;@RestControllerpublic class GenerateCodeController { @Autowired GenerateCodeService generateCodeService; @PostMapping('/generateCode') public RespBean generateCode(@RequestBody List<TableClass> tableClassList, HttpServletRequest req) {return generateCodeService.generateCode(tableClassList, req.getServletContext().getRealPath('/')); }}
3.编写service
package com.example.generate_code.service;import com.example.generate_code.model.ColumnClass;import com.example.generate_code.model.RespBean;import com.example.generate_code.model.TableClass;import com.example.generate_code.utils.DBUtils;import com.google.common.base.CaseFormat;import freemarker.cache.ClassTemplateLoader;import freemarker.template.Configuration;import freemarker.template.Template;import freemarker.template.TemplateException;import org.springframework.stereotype.Service;import java.io.File;import java.io.FileOutputStream;import java.io.IOException;import java.io.OutputStreamWriter;import java.sql.Connection;import java.sql.DatabaseMetaData;import java.sql.ResultSet;import java.util.ArrayList;import java.util.List;@Servicepublic class GenerateCodeService { Configuration cfg = null; {cfg = new Configuration(Configuration.VERSION_2_3_30);cfg.setTemplateLoader(new ClassTemplateLoader(GenerateCodeService.class, '/templates'));cfg.setDefaultEncoding('UTF-8'); } public RespBean generateCode(List<TableClass> tableClassList, String realPath) {try { Template modelTemplate = cfg.getTemplate('Model.java.ftl'); Template mapperJavaTemplate = cfg.getTemplate('Mapper.java.ftl'); Template mapperXmlTemplate = cfg.getTemplate('Mapper.xml.ftl'); Template serviceTemplate = cfg.getTemplate('Service.java.ftl'); Template controllerTemplate = cfg.getTemplate('Controller.java.ftl'); Connection connection = DBUtils.getConnection(); DatabaseMetaData metaData = connection.getMetaData(); for (TableClass tableClass : tableClassList) {ResultSet columns = metaData.getColumns(connection.getCatalog(), null, tableClass.getTableName(), null);ResultSet primaryKeys = metaData.getPrimaryKeys(connection.getCatalog(), null, tableClass.getTableName());List<ColumnClass> columnClassList = new ArrayList<>();while (columns.next()) { String column_name = columns.getString('COLUMN_NAME'); String type_name = columns.getString('TYPE_NAME'); String remarks = columns.getString('REMARKS'); ColumnClass columnClass = new ColumnClass(); columnClass.setRemark(remarks); columnClass.setColumnName(column_name); columnClass.setType(type_name); columnClass.setPropertyName(CaseFormat.LOWER_UNDERSCORE.to(CaseFormat.UPPER_CAMEL, column_name)); primaryKeys.first(); while (primaryKeys.next()) {String pkName = primaryKeys.getString('COLUMN_NAME');if (column_name.equals(pkName)) { columnClass.setPrimary(true);} } columnClassList.add(columnClass);}tableClass.setColumns(columnClassList);String path = realPath + '/' + tableClass.getPackageName().replace('.', '/');generate(modelTemplate, tableClass, path + '/model/');generate(mapperJavaTemplate, tableClass, path + '/mapper/');generate(mapperXmlTemplate, tableClass, path + '/mapper/');generate(serviceTemplate, tableClass, path + '/service/');generate(controllerTemplate, tableClass, path + '/controller/'); } return RespBean.ok('代码已生成', realPath);} catch (Exception e) { e.printStackTrace();}return RespBean.error('代码生成失败'); } private void generate(Template template, TableClass tableClass, String path) throws IOException, TemplateException {File folder = new File(path);if (!folder.exists()) { folder.mkdirs();}String fileName = path + '/' + tableClass.getModelName() + template.getName().replace('.ftl', '').replace('Model', '');FileOutputStream fos = new FileOutputStream(fileName);OutputStreamWriter out = new OutputStreamWriter(fos);template.process(tableClass,out);fos.close();out.close(); }}五、测试

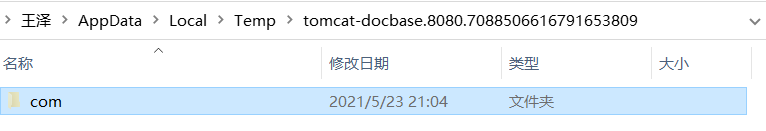

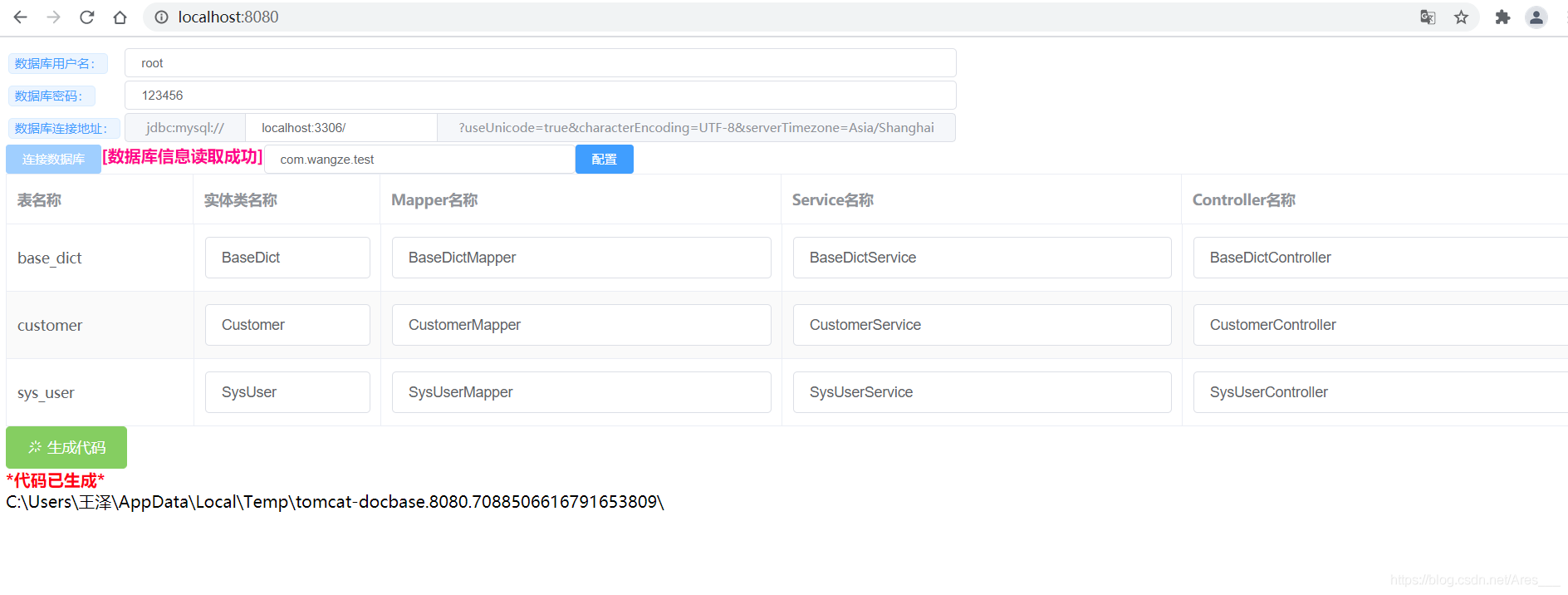

这时候已经找到了，我们来验证一下效果！
修改写配置
spring.datasource.name=rootspring.datasource.password=123456spring.datasource.url=jdbc:mysql://localhost:3306/boot_crm?useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai
pom.xml
<resources> <resource><directory>src/main/java</directory><includes> <include>**/*.xml</include></includes> </resource> <resource><directory>src/main/resources</directory> </resource></resources>

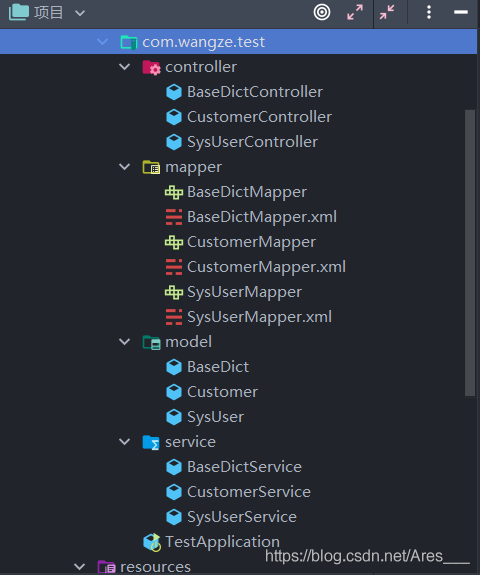

导入生成的代码
运行测试
一个基本的mybatis逆向工程就完成了!
最后附上项目源代码:Gitee
