springboot 实现mqtt物联网的示例代码

【字号：大中小】日期：2023-03-19 16:36:52浏览：46作者：猪猪

Springboot整合mybatisPlus+mysql+druid+swaggerUI+ mqtt 整合mqtt整合druid整合mybatis-plus完整pom完整yml整合swaggerUi整合log4j MQTT 物联网系统基本架构本物联网系列 mqtt)

整合mqtt

<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-integration</artifactId> </dependency> <dependency> <groupId>org.springframework.integration</groupId> <artifactId>spring-integration-stream</artifactId> </dependency> <dependency> <groupId>org.springframework.integration</groupId> <artifactId>spring-integration-mqtt</artifactId> </dependency>

yml

iot: mqtt: clientId: ${random.value} defaultTopic: topic shbykjTopic: shbykj_topic url: tcp://127.0.0.1:1883 username: admin password: admin completionTimeout: 3000

package com.shbykj.handle.mqtt;import lombok.Getter;import lombok.Setter;import org.springframework.boot.context.properties.ConfigurationProperties;import org.springframework.integration.annotation.IntegrationComponentScan;import org.springframework.stereotype.Component;/** * @Author: wxm * @Description: mqtt基础配置类 */@Getter@Setter@Component@IntegrationComponentScan@ConfigurationProperties(prefix = 'iot.mqtt')public class BykjMqttConfig { /* * * 服务地址 */ private String url; /** * 客户端id */ private String clientId; /* * * 默认主题 */ private String defaultTopic; /* * * 用户名和密码*/ private String username; private String password; /** * 超时时间 */ private int completionTimeout; /** * shbykj自定义主题 */ private String shbykjTopic;}

package com.shbykj.handle.mqtt.producer;import org.springframework.integration.annotation.MessagingGateway;import org.springframework.integration.mqtt.support.MqttHeaders;import org.springframework.messaging.handler.annotation.Header;/** * @description rabbitmq mqtt协议网关接口 * @date 2020/6/8 18:26 */@MessagingGateway(defaultRequestChannel = 'iotMqttInputChannel')public interface IotMqttGateway { void sendMessage2Mqtt(String data); void sendMessage2Mqtt(String data, @Header(MqttHeaders.TOPIC) String topic); void sendMessage2Mqtt(@Header(MqttHeaders.TOPIC) String topic, @Header(MqttHeaders.QOS) int qos, String payload);}

package com.shbykj.handle.mqtt;import org.eclipse.paho.client.mqttv3.MqttConnectOptions;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import org.springframework.integration.annotation.ServiceActivator;import org.springframework.integration.channel.DirectChannel;import org.springframework.integration.mqtt.core.DefaultMqttPahoClientFactory;import org.springframework.integration.mqtt.core.MqttPahoClientFactory;import org.springframework.messaging.MessageChannel;import org.springframework.messaging.MessageHandler;import org.springframework.messaging.MessagingException;@Configurationpublic class IotMqttProducerConfig { public final Logger logger = LoggerFactory.getLogger(this.getClass()); @Autowired private BykjMqttConfig mqttConfig; /* * * MQTT连接器选项 * * */ @Bean(value = 'getMqttConnectOptions') public MqttConnectOptions getMqttConnectOptions1() { MqttConnectOptions mqttConnectOptions = new MqttConnectOptions(); // 设置是否清空session,这里如果设置为false表示服务器会保留客户端的连接记录，这里设置为true表示每次连接到服务器都以新的身份连接 mqttConnectOptions.setCleanSession(true); // 设置超时时间单位为秒 mqttConnectOptions.setConnectionTimeout(mqttConfig.getCompletionTimeout()); mqttConnectOptions.setAutomaticReconnect(true); mqttConnectOptions.setUserName(mqttConfig.getUsername()); mqttConnectOptions.setPassword(mqttConfig.getPassword().toCharArray()); mqttConnectOptions.setServerURIs(new String[]{mqttConfig.getUrl()}); // 设置会话心跳时间单位为秒服务器会每隔1.5*20秒的时间向客户端发送心跳判断客户端是否在线，但这个方法并没有重连的机制 mqttConnectOptions.setKeepAliveInterval(10); // 设置“遗嘱”消息的话题，若客户端与服务器之间的连接意外中断，服务器将发布客户端的“遗嘱”消息。 //mqttConnectOptions.setWill('willTopic', WILL_DATA, 2, false); return mqttConnectOptions; } /** * mqtt工厂 * * @return */ @Bean public MqttPahoClientFactory mqttClientFactory() { DefaultMqttPahoClientFactory factory = new DefaultMqttPahoClientFactory();// factory.setServerURIs(mqttConfig.getServers()); factory.setConnectionOptions(getMqttConnectOptions1()); return factory; } @Bean public MessageChannel iotMqttInputChannel() { return new DirectChannel(); } // @Bean// @ServiceActivator(inputChannel = 'iotMqttInputChannel')// public MessageHandler mqttOutbound() {// MqttPahoMessageHandler messageHandler = new MqttPahoMessageHandler(mqttConfig.getClientId(), mqttClientFactory());// messageHandler.setAsync(false);// messageHandler.setDefaultQos(2);// messageHandler.setDefaultTopic(mqttConfig.getDefaultTopic());// return messageHandler;// } @Bean @ServiceActivator(inputChannel = 'iotMqttInputChannel') public MessageHandler handlerTest() { return message -> { try { String string = message.getPayload().toString(); System.out.println(string); } catch (MessagingException ex) { ex.printStackTrace(); logger.info(ex.getMessage()); } }; }}

package com.shbykj.handle.mqtt;import org.eclipse.paho.client.mqttv3.MqttConnectOptions;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import org.springframework.integration.annotation.ServiceActivator;import org.springframework.integration.channel.DirectChannel;import org.springframework.integration.core.MessageProducer;import org.springframework.integration.mqtt.core.DefaultMqttPahoClientFactory;import org.springframework.integration.mqtt.core.MqttPahoClientFactory;import org.springframework.integration.mqtt.inbound.MqttPahoMessageDrivenChannelAdapter;import org.springframework.integration.mqtt.outbound.MqttPahoMessageHandler;import org.springframework.integration.mqtt.support.DefaultPahoMessageConverter;import org.springframework.messaging.Message;import org.springframework.messaging.MessageChannel;import org.springframework.messaging.MessageHandler;import org.springframework.messaging.MessagingException;/** * @Author: xiaofu * @Description: 消息订阅配置 * @date 2020/6/8 18:24 */@Configurationpublic class IotMqttSubscriberConfig { public final Logger logger = LoggerFactory.getLogger(this.getClass()); @Autowired private MqttReceiveHandle mqttReceiveHandle; @Autowired private BykjMqttConfig mqttConfig; /* * * MQTT连接器选项 * * */ @Bean(value = 'getMqttConnectOptions') public MqttConnectOptions getMqttConnectOptions1() { MqttConnectOptions mqttConnectOptions = new MqttConnectOptions(); // 设置是否清空session,这里如果设置为false表示服务器会保留客户端的连接记录，这里设置为true表示每次连接到服务器都以新的身份连接 mqttConnectOptions.setCleanSession(true); // 设置超时时间单位为秒 mqttConnectOptions.setConnectionTimeout(10); mqttConnectOptions.setAutomaticReconnect(true);// mqttConnectOptions.setUserName(mqttConfig.getUsername());// mqttConnectOptions.setPassword(mqttConfig.getPassword().toCharArray()); mqttConnectOptions.setServerURIs(new String[]{mqttConfig.getUrl()}); // 设置会话心跳时间单位为秒服务器会每隔1.5*20秒的时间向客户端发送心跳判断客户端是否在线，但这个方法并没有重连的机制 mqttConnectOptions.setKeepAliveInterval(10); // 设置“遗嘱”消息的话题，若客户端与服务器之间的连接意外中断，服务器将发布客户端的“遗嘱”消息。 //mqttConnectOptions.setWill('willTopic', WILL_DATA, 2, false); return mqttConnectOptions; } /* * *MQTT信息通道（生产者） ** */ @Bean public MessageChannel iotMqttOutboundChannel() { return new DirectChannel(); } /* * *MQTT消息处理器（生产者） ** */ @Bean @ServiceActivator(inputChannel = 'iotMqttOutboundChannel') public MessageHandler mqttOutbound() { MqttPahoMessageHandler messageHandler = new MqttPahoMessageHandler(mqttConfig.getClientId(), mqttClientFactory()); messageHandler.setAsync(true); messageHandler.setDefaultTopic(mqttConfig.getDefaultTopic()); return messageHandler; } /* * *MQTT工厂 ** */ @Bean public MqttPahoClientFactory mqttClientFactory() { DefaultMqttPahoClientFactory factory = new DefaultMqttPahoClientFactory();// factory.setServerURIs(mqttConfig.getServers()); factory.setConnectionOptions(getMqttConnectOptions1()); return factory; } /* * *MQTT信息通道（消费者） ** */ @Bean public MessageChannel iotMqttInputChannel() { return new DirectChannel(); } /** * 配置client,监听的topic * MQTT消息订阅绑定（消费者） ***/ @Bean public MessageProducer inbound() { MqttPahoMessageDrivenChannelAdapter adapter = new MqttPahoMessageDrivenChannelAdapter(mqttConfig.getClientId(), mqttClientFactory(), mqttConfig.getDefaultTopic(), mqttConfig.getShbykjTopic()); adapter.setCompletionTimeout(mqttConfig.getCompletionTimeout()); adapter.setConverter(new DefaultPahoMessageConverter()); adapter.setQos(2); adapter.setOutputChannel(iotMqttInputChannel()); return adapter; } /** * @author wxm * @description 消息订阅 * @date 2020/6/8 18:20 */ @Bean @ServiceActivator(inputChannel = 'iotMqttInputChannel') public MessageHandler handler() { return new MessageHandler() { @Override public void handleMessage(Message<?> message) throws MessagingException { //处理接收消息 try { mqttReceiveHandle.handle(message); } catch (Exception e) { logger.warn('消息处理异常'+e.getMessage()); e.printStackTrace(); } } }; }}

package com.shbykj.handle.mqtt;import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;import com.shbykj.handle.common.DataCheck;import com.shbykj.handle.common.RedisKey;import com.shbykj.handle.common.RedisUtils;import com.shbykj.handle.common.constants.Constants;import com.shbykj.handle.common.model.ShbyCSDeviceEntity;import com.shbykj.handle.common.model.sys.SysInstrument;import com.shbykj.handle.resolve.mapper.SysInstrumentMapper;import com.shbykj.handle.resolve.util.DateUtils;import com.shbykj.handle.resolve.util.ShbyCSDeviceUtils;import lombok.extern.slf4j.Slf4j;import org.apache.commons.collections.BidiMap;import org.apache.commons.collections.bidimap.DualHashBidiMap;import org.apache.commons.lang3.StringUtils;import org.eclipse.paho.client.mqttv3.IMqttDeliveryToken;import org.eclipse.paho.client.mqttv3.MqttCallback;import org.eclipse.paho.client.mqttv3.MqttMessage;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.beans.factory.annotation.Value;import org.springframework.integration.mqtt.support.MqttHeaders;import org.springframework.messaging.Message;import org.springframework.stereotype.Component;import org.springframework.transaction.annotation.Transactional;import java.text.SimpleDateFormat;import java.util.Date;import java.util.HashMap;import java.util.Map;/* * * mqtt客户端消息处理类 * **/@Component@Slf4j@Transactionalpublic class MqttReceiveHandle implements MqttCallback { private static final Logger logger = LoggerFactory.getLogger(MqttReceiveHandle.class); @Value('${shbykj.checkCrc}') private boolean checkcrc; @Autowired private SysInstrumentMapper sysInstrumentMapper; @Autowired private RedisUtils redisUtils; public static BidiMap bidiMap = new DualHashBidiMap(); //记录bykj协议内容 public static Map<String, Map<String, Object>> devMap = new HashMap(); //记录上限数量// public static Map<String, ChannelHandlerContext> ctxMap = new HashMap(); public void handle(Message<?> message) { try { logger.info('{},客户端号：{},主题：{}，QOS:{}，消息接收到的数据：{}', new SimpleDateFormat('yyyy-MM-dd HH:mm:ss').format(new Date()), message.getHeaders().get(MqttHeaders.ID), message.getHeaders().get(MqttHeaders.RECEIVED_TOPIC), message.getHeaders().get(MqttHeaders.RECEIVED_QOS), message.getPayload()); //处理mqtt数据 this.handle(message.getPayload().toString()); } catch (Exception e) { e.printStackTrace(); log.error('处理错误' + e.getMessage()); } } private void handle(String str) throws Exception { boolean flag = this.dataCheck(str); if (flag) { ShbyCSDeviceEntity shbyCSDeviceEntity = ShbyCSDeviceUtils.convertToSysInstrumentEntity(str); String deviceNumber = shbyCSDeviceEntity.getPN(); String smpId = shbyCSDeviceEntity.getSMP_ID(); String smpName = shbyCSDeviceEntity.getSMP_NAME(); String smpWt = shbyCSDeviceEntity.getSMP_WT(); if (StringUtils.isEmpty(smpId) || StringUtils.isEmpty(smpName) || StringUtils.isEmpty(smpWt)) { log.error('过滤无实际作用报文信息', str); logger.error('过滤无实际作用报文信息', str); return; } //判断设备id是否存在数据库中，存在才进行数据部分处理 //不存在就提醒需要添加设备： QueryWrapper<SysInstrument> wrapper = new QueryWrapper(); wrapper.eq('number', deviceNumber); wrapper.eq('is_deleted', Constants.NO); SysInstrument sysInstrument = sysInstrumentMapper.selectOne(wrapper); if (null == sysInstrument) { log.error('碳氧仪不存在或已删除，设备号：{}', deviceNumber); logger.error('碳氧仪不存在或已删除，设备号：{}', deviceNumber); return; } try { //增加实时数据 String instrumentId = sysInstrument.getId().toString(); String realDataKey = RedisKey.CSdevice_DATA_KEY + instrumentId; this.redisUtils.set(realDataKey, shbyCSDeviceEntity); System.out.println(shbyCSDeviceEntity); //通讯时间 String onlineTime = 'shbykj_mqtt:onlines:' + instrumentId; this.redisUtils.set(onlineTime, shbyCSDeviceEntity.getDataTime(), (long) Constants.RedisTimeOut.REAL_TIME_OUT); log.info('实时数据已经更新：设备主键id' + instrumentId); logger.info('{} 实时数据已经更新：设备主键id:{}',new SimpleDateFormat('yyyy-MM-dd HH:mm:ss').format(new Date()),instrumentId); } catch (Exception var1) { log.error('redis处理实时报文数据逻辑异常：' + var1.getMessage()); logger.error('redis处理实时报文数据逻辑异常：' + var1.getMessage()); } } } private boolean dataCheck(String message) { boolean flag = DataCheck.receiverCheck(message); if (!flag) { return false; } else { int i = message.indexOf('QN='); if (i < 0) { log.warn('数据包中没有QN号码: ' + message); logger.warn('数据包中没有QN号码: ' + message); return false; } else { i = message.indexOf('PN='); if (i < 0) { log.warn('数据包中没有PN号码: ' + message); logger.warn('数据包中没有PN号码: ' + message); return false; } else { if (this.checkcrc) { flag = DataCheck.checkCrc(message); if (!flag) { log.warn('crc校验失败: ' + message); logger.warn('数据包中没有PN号码: ' + message); return false; } } return true; } } } } /** * 连接丢失 * * @param throwable */ @Override public void connectionLost(Throwable throwable) { logger.warn('连接丢失-客户端:｛｝,原因：{}', throwable.getMessage()); } /** * 消息已到达 * * @param s * @param mqttMessage * @throws Exception */ @Override public void messageArrived(String s, MqttMessage mqttMessage) throws Exception { } /** * 完成消息回调 * * @param iMqttDeliveryToken */ @Override public void deliveryComplete(IMqttDeliveryToken iMqttDeliveryToken) { }}整合druid

pom

<dependency> <groupId>com.alibaba</groupId> <artifactId>druid-spring-boot-starter</artifactId> <version>1.1.10</version> </dependency>

druid-bean.xml

<?xml version='1.0' encoding='UTF-8'?><beans xmlns='http://www.springframework.org/schema/beans' xmlns:aop='http://www.springframework.org/schema/aop' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation=' http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd'>  <bean class='com.alibaba.druid.support.spring.stat.DruidStatInterceptor'></bean>  <bean scope='prototype'> <property name='patterns'> <list> <value>com.shbykj.*.service.*.impl.*</value> </list> </property> </bean> <aop:config proxy-target-class='true'> <aop:advisor advice-ref='druid-stat-interceptor' pointcut-ref='druid-stat-pointcut' /> </aop:config></beans>

yml

#springspring: main: allow-bean-definition-overriding: true # mysql DATABASE CONFIG datasource: druid: filters: stat,wall,log4j2 continueOnError: true type: com.alibaba.druid.pool.DruidDataSource url: jdbc:mysql://localhost:3306/mqttdb?useSSL=false&useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC&allowPublicKeyRetrieval=true username: root password: 123456 driver-class-name: com.mysql.jdbc.Driver # see https://github.com/alibaba/druid initialSize: 15 minIdle: 10 maxActive: 200 maxWait: 60000 timeBetweenEvictionRunsMillis: 60000 validationQuery: SELECT 1 testWhileIdle: true testOnBorrow: false testOnReturn: false poolPreparedStatements: true keepAlive: true maxPoolPreparedStatementPerConnectionSize: 50 connectionProperties: druid.stat.mergeSql: true druid.stat.slowSqlMillis: 5000

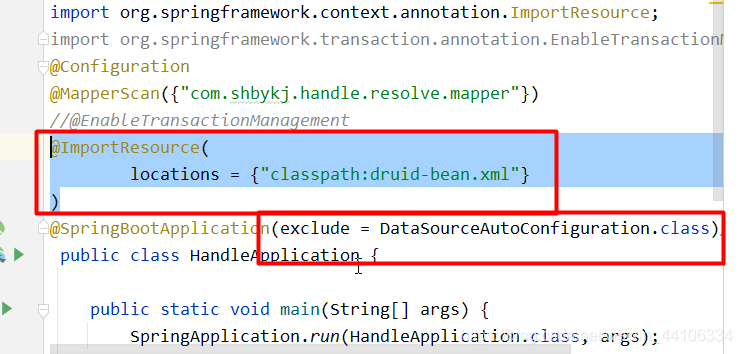

启动类加上注解@ImportResource( locations = {'classpath:druid-bean.xml'} )

springboot 实现mqtt物联网的示例代码

整合mybatis-plus

pom

<dependency> <groupId>com.baomidou</groupId> <artifactId>spring-wind</artifactId> <version>1.1.5</version> <exclusions> <exclusion> <groupId>com.baomidou</groupId> <artifactId>mybatis-plus</artifactId> </exclusion> </exclusions> </dependency> <dependency> <groupId>com.baomidou</groupId> <version>3.1.2</version> <artifactId>mybatis-plus-boot-starter</artifactId> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>5.1.44</version> </dependency>  <dependency> <groupId>com.github.pagehelper</groupId> <artifactId>pagehelper-spring-boot-starter</artifactId> <version>1.2.12</version> </dependency>

yml

#mybatismybatis-plus: mapper-locations: classpath:/mapper/*.xml typeAliasesPackage: org.spring.springboot.entity global-config: #主键类型 0:'数据库ID自增', 1:'用户输入ID',2:'全局唯一ID (数字类型唯一ID)', 3:'全局唯一ID UUID'; id-type: 3 #字段策略 0:'忽略判断',1:'非 NULL 判断'),2:'非空判断' field-strategy: 2 #驼峰下划线转换 db-column-underline: true #刷新mapper 调试神器 refresh-mapper: true configuration: map-underscore-to-camel-case: true cache-enabled: false

启动类注解@MapperScan({'com.shbykj.handle.resolve.mapper'})

完整pom

<?xml version='1.0' encoding='UTF-8'?><project xmlns='http://maven.apache.org/POM/4.0.0' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd'> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.4.1</version> <relativePath/>  </parent> <groupId>com.shbykj</groupId> <artifactId>handle</artifactId> <version>0.0.1-SNAPSHOT</version> <name>handle</name> <description>Demo project for Spring Boot</description> <properties> <java.version>1.8</java.version> </properties> <dependencies>    <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-simple</artifactId> <version>1.7.25</version> <scope>compile</scope> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-log4j2</artifactId> </dependency>  <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter</artifactId> <exclusions> <exclusion> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-logging</artifactId> </exclusion> </exclusions> </dependency>  <dependency> <groupId>io.springfox</groupId> <artifactId>springfox-swagger-ui</artifactId> <version>2.9.2</version> </dependency>  <dependency> <groupId>io.springfox</groupId> <artifactId>springfox-swagger2</artifactId> <version>2.9.2</version> <exclusions> <exclusion> <groupId>com.google.guava</groupId> <artifactId>guava</artifactId> </exclusion> </exclusions> </dependency>  <dependency> <groupId>com.baomidou</groupId> <artifactId>spring-wind</artifactId> <version>1.1.5</version> <exclusions> <exclusion> <groupId>com.baomidou</groupId> <artifactId>mybatis-plus</artifactId> </exclusion> </exclusions> </dependency> <dependency> <groupId>com.baomidou</groupId> <version>3.1.2</version> <artifactId>mybatis-plus-boot-starter</artifactId> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>5.1.44</version> </dependency> <dependency> <groupId>com.alibaba</groupId> <artifactId>druid-spring-boot-starter</artifactId> <version>1.1.10</version> </dependency>  <dependency> <groupId>com.github.pagehelper</groupId> <artifactId>pagehelper-spring-boot-starter</artifactId> <version>1.2.12</version> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-devtools</artifactId> <optional>true</optional> <scope>runtime</scope> </dependency>  <dependency> <groupId>com.google.code.gson</groupId> <artifactId>gson</artifactId> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-redis</artifactId> </dependency>  <dependency> <groupId>org.apache.commons</groupId> <artifactId>commons-lang3</artifactId> <version>3.8.1</version> </dependency>   <dependency> <groupId>com.google.guava</groupId> <artifactId>guava</artifactId> <version>30.0-jre</version> </dependency>  <dependency> <groupId>cn.hutool</groupId> <artifactId>hutool-core</artifactId> <version>5.5.0</version> </dependency>  <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build></project>完整yml

server: port: 8082#springspring: devtools: restart: enabled: true main: allow-bean-definition-overriding: true # mysql DATABASE CONFIG datasource: druid: filters: stat,wall,log4j2 continueOnError: true type: com.alibaba.druid.pool.DruidDataSource url: jdbc:mysql://localhost:3306/mqttdb?useSSL=false&useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC&allowPublicKeyRetrieval=true username: root password: 123456 driver-class-name: com.mysql.jdbc.Driver # see https://github.com/alibaba/druid initialSize: 15 minIdle: 10 maxActive: 200 maxWait: 60000 timeBetweenEvictionRunsMillis: 60000 validationQuery: SELECT 1 testWhileIdle: true testOnBorrow: false testOnReturn: false poolPreparedStatements: true keepAlive: true maxPoolPreparedStatementPerConnectionSize: 50 connectionProperties: druid.stat.mergeSql: true druid.stat.slowSqlMillis: 5000shbykj: checkCrc: false#mybatismybatis-plus: mapper-locations: classpath:/mapper/*.xml typeAliasesPackage: org.spring.springboot.entity global-config: #主键类型 0:'数据库ID自增', 1:'用户输入ID',2:'全局唯一ID (数字类型唯一ID)', 3:'全局唯一ID UUID'; id-type: 3 #字段策略 0:'忽略判断',1:'非 NULL 判断'),2:'非空判断' field-strategy: 2 #驼峰下划线转换 db-column-underline: true #刷新mapper 调试神器 refresh-mapper: true configuration: map-underscore-to-camel-case: true cache-enabled: false#logginglogging: config: classpath:log4j2-demo.xml整合swaggerUi

pom

<dependency> <groupId>io.springfox</groupId> <artifactId>springfox-swagger-ui</artifactId> <version>2.9.2</version> </dependency>   <dependency> <groupId>io.swagger</groupId> <artifactId>swagger-models</artifactId> <version>1.5.21</version> </dependency>  <dependency> <groupId>io.springfox</groupId> <artifactId>springfox-swagger2</artifactId> <version>2.9.2</version> <exclusions> <exclusion> <groupId>com.google.guava</groupId> <artifactId>guava</artifactId> </exclusion> </exclusions> </dependency>

使用

package com.shbykj.handle.web.wx;import com.baomidou.mybatisplus.core.metadata.IPage;import com.shbykj.handle.common.RetMsgData;import com.shbykj.handle.common.State;import com.shbykj.handle.common.model.sys.SysInstrument;import com.shbykj.handle.h.service.ISysInstrumentService;import io.swagger.annotations.Api;import io.swagger.annotations.ApiImplicitParam;import io.swagger.annotations.ApiImplicitParams;import io.swagger.annotations.ApiOperation;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.GetMapping;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RequestParam;import org.springframework.web.bind.annotation.RestController;/** * 监测点接口 * * @author * @date 2021-01-15 16:49 */@RestController@RequestMapping({'/api/wxapoint'})@Api( tags = {'小程序监测点接口'})public class CSDevicesController extends BaseController { @Autowired private ISysInstrumentService sysInstrumentService; public CSDevicesController() { } @ApiOperation( value = '分页查询', notes = '分页查询站点信息' ) @ApiImplicitParams({@ApiImplicitParam( name = 'number', value = '设备编号', paramType = 'query', dataType = 'String' ), @ApiImplicitParam( name = 'page', value = '页码从1开始', required = false, dataType = 'long', paramType = 'query' ), @ApiImplicitParam( name = 'size', value = '页数', required = false, dataType = 'long', paramType = 'query' )}) @GetMapping({'/pageByNumber'}) public RetMsgData<IPage<SysInstrument>> pageByNumber(@RequestParam(required = false) String number) { RetMsgData msg = new RetMsgData(); try { IPage<SysInstrument> page1 = this.getPage(); page1 = sysInstrumentService.pageByNumber(number, page1); msg.setData(page1); } catch (Exception var5) { msg.setState(State.RET_STATE_SYSTEM_ERROR); this.logger.error(var5.getMessage()); } return msg; }}

package com.shbykj.handle.common.model.sys;import com.baomidou.mybatisplus.annotation.IdType;import com.baomidou.mybatisplus.annotation.TableField;import com.baomidou.mybatisplus.annotation.TableId;import com.baomidou.mybatisplus.annotation.TableName;import io.swagger.annotations.ApiModel;import io.swagger.annotations.ApiModelProperty;import java.io.Serializable;import java.util.Date;@TableName('instrument')@ApiModel('仪器配置表字段信息')public class SysInstrument implements Serializable { private static final long serialVersionUID = 1L; @TableId( value = 'id', type = IdType.AUTO ) @ApiModelProperty( value = 'id', name = 'id', required = true ) private Long id; @TableField('name') @ApiModelProperty( value = '名称仪器名称', name = 'name' ) private String name; @TableField('number') @ApiModelProperty( value = '编号仪器编号(PN)', name = 'number' ) private String number; @TableField('manufacturer') @ApiModelProperty( value = '生产厂商生产厂商', name = 'manufacturer' ) private String manufacturer; @TableField('gmt_create') @ApiModelProperty( value = '创建时间', name = 'gmt_create' ) private Date gmtCreate; @TableField('gmt_modified') @ApiModelProperty( value = '更新时间', name = 'gmt_modified' ) private Date gmtModified; @TableField('is_deleted') @ApiModelProperty( value = '表示删除，0 表示未删除默认0', name = 'is_deleted' ) private Integer isDeleted; @TableField('device_type') @ApiModelProperty( value = '设备类型(PT)', name = 'device_type' ) private String deviceType; public SysInstrument() { } public Long getId() { return this.id; } public String getName() { return this.name; } public String getNumber() { return this.number; } public String getManufacturer() { return this.manufacturer; } public Date getGmtCreate() { return this.gmtCreate; } public Date getGmtModified() { return this.gmtModified; } public Integer getIsDeleted() { return this.isDeleted; } public String getDeviceType() { return this.deviceType; } public void setId(final Long id) { this.id = id; } public void setName(final String name) { this.name = name; } public void setNumber(final String number) { this.number = number; } public void setManufacturer(final String manufacturer) { this.manufacturer = manufacturer; } public void setGmtCreate(final Date gmtCreate) { this.gmtCreate = gmtCreate; } public void setGmtModified(final Date gmtModified) { this.gmtModified = gmtModified; } public void setIsDeleted(final Integer isDeleted) { this.isDeleted = isDeleted; } public void setDeviceType(final String deviceType) { this.deviceType = deviceType; } public String toString() { return 'SysInstrument(id=' + this.getId() + ', name=' + this.getName() + ', number=' + this.getNumber() + ', manufacturer=' + this.getManufacturer() + ', gmtCreate=' + this.getGmtCreate() + ', gmtModified=' + this.getGmtModified() + ', isDeleted=' + this.getIsDeleted() + ', deviceType=' + this.getDeviceType() + ')'; }}整合log4j

https://www.jb51.net/article/152599.htm

MQTT 物联网系统基本架构

pom

<?xml version='1.0' encoding='UTF-8'?><project xmlns='http://maven.apache.org/POM/4.0.0' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd'> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.4.2</version> <relativePath/>  </parent> <groupId>com.shbykj</groupId> <artifactId>handle_mqtt</artifactId> <version>0.0.1-SNAPSHOT</version> <name>handle_mqtt</name> <description>Demo project for Spring Boot</description> <properties> <java.version>1.8</java.version> <skipTests>true</skipTests> </properties> <dependencies>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-integration</artifactId> </dependency> <dependency> <groupId>org.springframework.integration</groupId> <artifactId>spring-integration-stream</artifactId> </dependency> <dependency> <groupId>org.springframework.integration</groupId> <artifactId>spring-integration-mqtt</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> <exclusions> <exclusion> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-logging</artifactId> </exclusion> </exclusions> </dependency>    <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-simple</artifactId> <version>1.7.25</version> <scope>compile</scope> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-log4j2</artifactId> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter</artifactId> <exclusions> <exclusion> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-logging</artifactId> </exclusion> </exclusions> </dependency>  <dependency> <groupId>io.springfox</groupId> <artifactId>springfox-swagger-ui</artifactId> <version>2.9.2</version> </dependency>   <dependency> <groupId>io.swagger</groupId> <artifactId>swagger-models</artifactId> <version>1.5.21</version> </dependency>  <dependency> <groupId>io.springfox</groupId> <artifactId>springfox-swagger2</artifactId> <version>2.9.2</version> <exclusions> <exclusion> <groupId>com.google.guava</groupId> <artifactId>guava</artifactId> </exclusion> </exclusions> </dependency>   <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-devtools</artifactId> <optional>true</optional> <scope>runtime</scope> </dependency>  <dependency> <groupId>com.google.code.gson</groupId> <artifactId>gson</artifactId> </dependency>  <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-redis</artifactId> </dependency>  <dependency> <groupId>org.apache.commons</groupId> <artifactId>commons-lang3</artifactId> <version>3.8.1</version> </dependency>   <dependency> <groupId>com.google.guava</groupId> <artifactId>guava</artifactId> <version>30.0-jre</version> </dependency>  <dependency> <groupId>cn.hutool</groupId> <artifactId>hutool-core</artifactId> <version>5.5.0</version> </dependency>  <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <optional>true</optional> </dependency>  <dependency> <groupId>commons-collections</groupId> <artifactId>commons-collections</artifactId> <version>3.2</version> </dependency> <dependency> <groupId>com.baomidou</groupId> <artifactId>spring-wind</artifactId> <version>1.1.5</version> <exclusions> <exclusion> <groupId>com.baomidou</groupId> <artifactId>mybatis-plus</artifactId> </exclusion> </exclusions> </dependency> <dependency> <groupId>com.baomidou</groupId> <version>3.1.2</version> <artifactId>mybatis-plus-boot-starter</artifactId> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>5.1.44</version> </dependency> <dependency> <groupId>com.alibaba</groupId> <artifactId>druid-spring-boot-starter</artifactId> <version>1.1.10</version> </dependency>  <dependency> <groupId>com.github.pagehelper</groupId> <artifactId>pagehelper-spring-boot-starter</artifactId> <version>1.2.12</version> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> <executions> <execution> <goals> <goal>repackage</goal> </goals> </execution> </executions> </plugin> </plugins> </build></project>

yml

server: port: 8082iot: mqtt: clientId: ${random.value} defaultTopic: topic shbykjTopic: shbykj_topic url: tcp://127.0.0.1:1883 username: admin password: admin completionTimeout: 3000#微信小程序相关参数shbykjWeixinAppid: wxae343ca8948f97c4shbykjSecret: 9e168c92702efc06cb12fa22680f049a#springspring: devtools: restart: enabled: true main: allow-bean-definition-overriding: true # mysql DATABASE CONFIG datasource: druid: filters: stat,wall,log4j2 continueOnError: true type: com.alibaba.druid.pool.DruidDataSource url: jdbc:mysql://localhost:3306/mqttdb?useSSL=false&useUnicode=true&characterEncoding=utf-8&serverTimezone=UTC&allowPublicKeyRetrieval=true username: root password: 123456 driver-class-name: com.mysql.jdbc.Driver # see https://github.com/alibaba/druid initialSize: 15 minIdle: 10 maxActive: 200 maxWait: 60000 timeBetweenEvictionRunsMillis: 60000 validationQuery: SELECT 1 testWhileIdle: true testOnBorrow: false testOnReturn: false poolPreparedStatements: true keepAlive: true maxPoolPreparedStatementPerConnectionSize: 50 connectionProperties: druid.stat.mergeSql: true druid.stat.slowSqlMillis: 5000shbykj: checkCrc: false#mybatismybatis-plus: mapper-locations: classpath:/mapper/*.xml typeAliasesPackage: org.spring.springboot.entity global-config: #主键类型 0:'数据库ID自增', 1:'用户输入ID',2:'全局唯一ID (数字类型唯一ID)', 3:'全局唯一ID UUID'; id-type: 3 #字段策略 0:'忽略判断',1:'非 NULL 判断'),2:'非空判断' field-strategy: 2 #驼峰下划线转换 db-column-underline: true #刷新mapper 调试神器 refresh-mapper: true configuration: map-underscore-to-camel-case: true cache-enabled: false #log4j打印sql日志 log-impl: org.apache.ibatis.logging.stdout.StdOutImpl#logginglogging: config: classpath:log4j2-demo.xml

到此这篇关于springboot 实现mqtt物联网的文章就介绍到这了,更多相关springboot 实现mqtt物联网内容请搜索好吧啦网以前的文章或继续浏览下面的相关文章希望大家以后多多支持好吧啦网！
