SpringBoot+阿里云OSS实现在线视频播放的示例

阿里云 OSS 是一种云存储技术，你可以理解为云盘，我们的目标是将视频存储到云端，然后在前端读取并播放视频。

OSS

首先登陆首页，创建一个存储桶：https://oss.console.aliyun.com

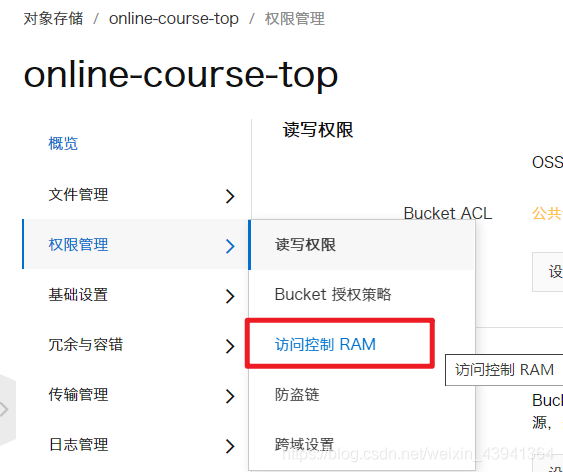

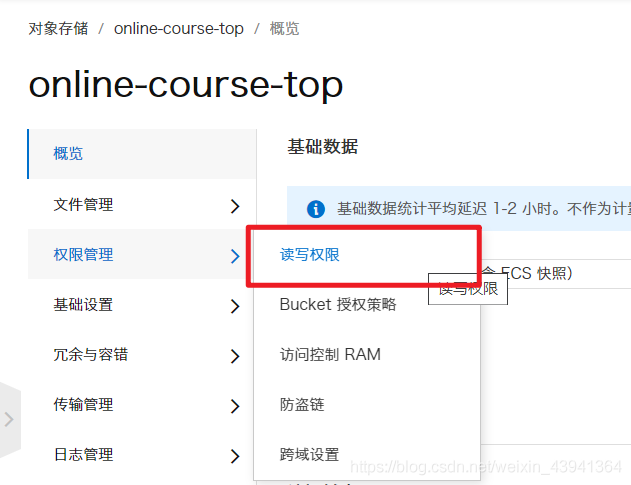

然后找到读写权限：

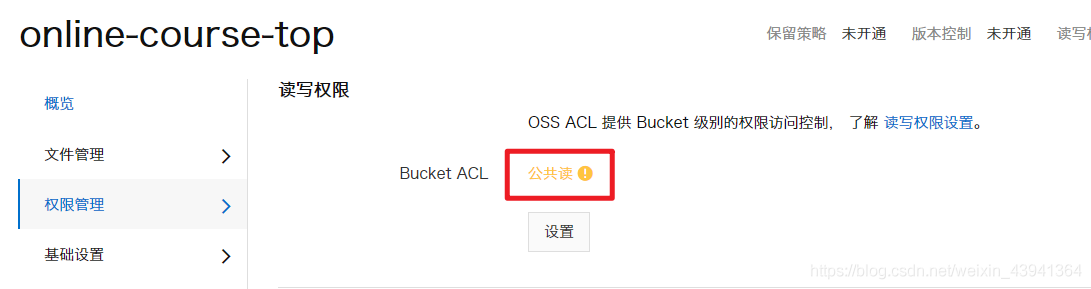

将读写权限设置为公共读即可：

在 RAM 中新建一个用户：

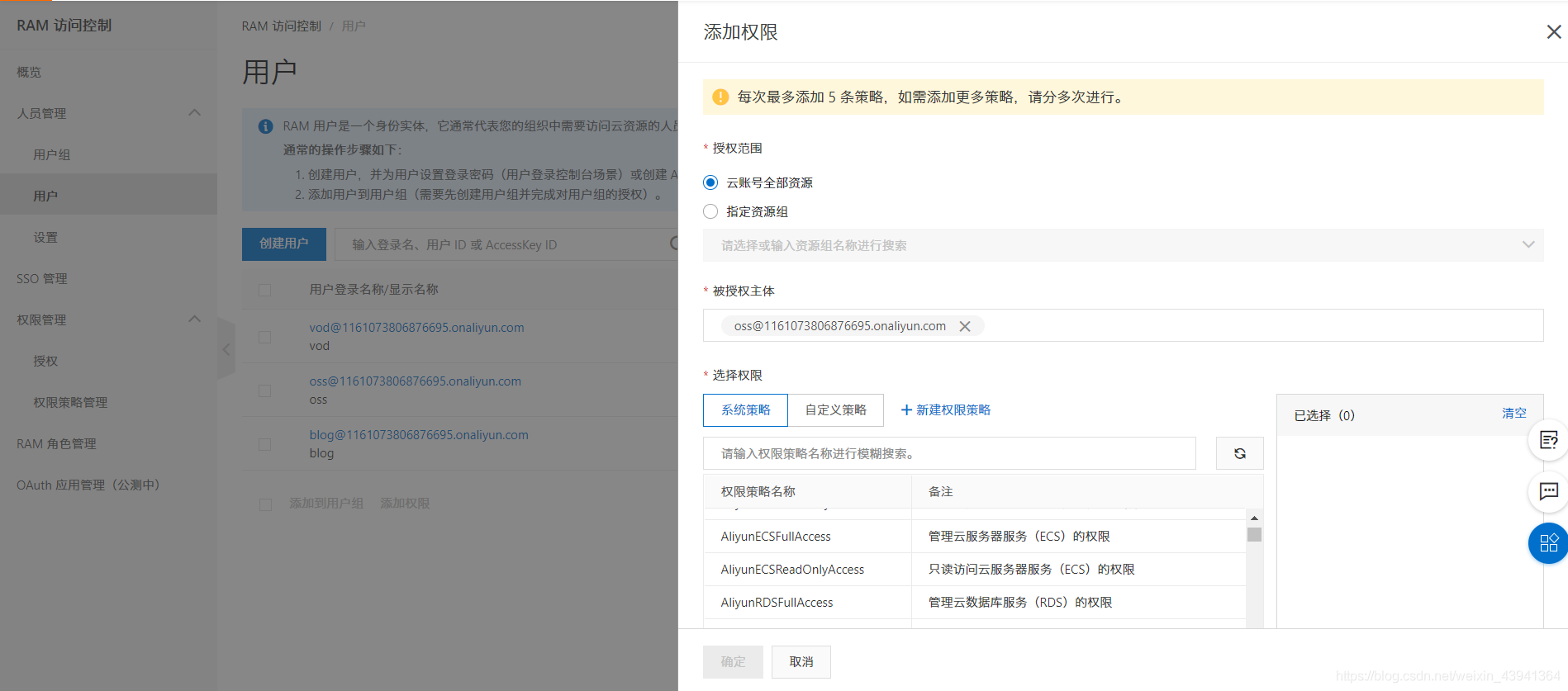

为其添加权限，选择 OSS 的权限：

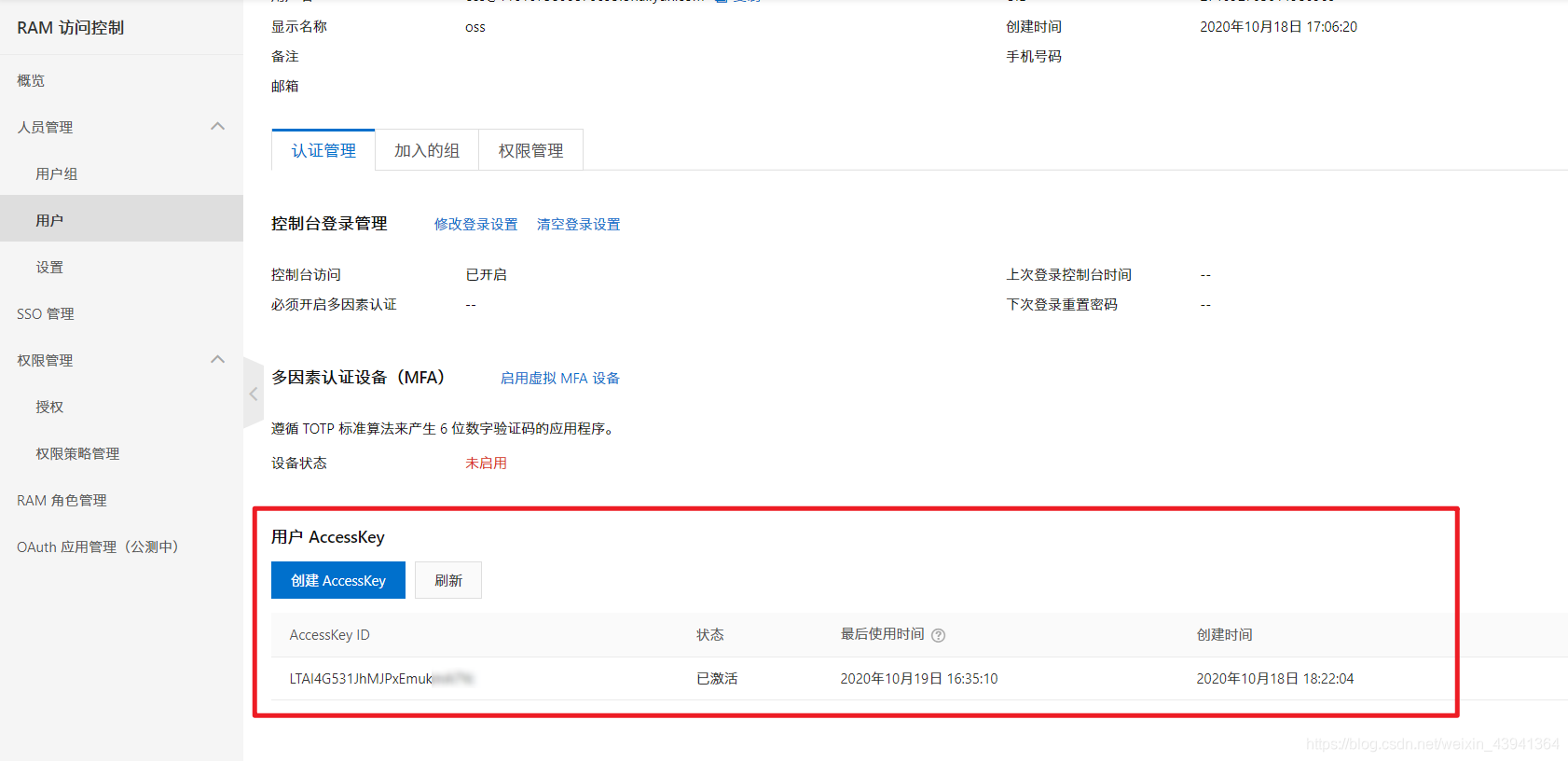

然后点进去这个用户，找到 AccessKey：

创建之后记下来 secret ，因为他只出现一次，如果没记住也没事，可以重新创建新的 key。

下面开始编写服务端代码：

POM

<!-- 阿里云oss --><dependency> <groupId>com.aliyun.oss</groupId> <artifactId>aliyun-sdk-oss</artifactId> <version>3.10.2</version></dependency>

package com.lsu.file.controller.admin;import com.alibaba.fastjson.JSONObject;import com.aliyun.oss.OSS;import com.aliyun.oss.OSSClientBuilder;import com.aliyun.oss.model.AppendObjectRequest;import com.aliyun.oss.model.AppendObjectResult;import com.aliyun.oss.model.ObjectMetadata;import com.aliyun.oss.model.PutObjectRequest;import com.lsu.server.dto.FileDto;import com.lsu.server.dto.ResponseDto;import com.lsu.server.enums.FileUseEnum;import com.lsu.server.service.FileService;import com.lsu.server.util.Base64ToMultipartFile;import com.lsu.server.util.UuidUtil;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.beans.factory.annotation.Value;import org.springframework.web.bind.annotation.*;import org.springframework.web.multipart.MultipartFile;import javax.annotation.Resource;import java.io.ByteArrayInputStream;/** * @author wsuo */@RestController@RequestMapping('/admin')public class OssController { private static final Logger LOG = LoggerFactory.getLogger(FileController.class); @Value('${oss.accessKeyId}') private String accessKeyId; @Value('${oss.accessKeySecret}') private String accessKeySecret; @Value('${oss.endpoint}') private String endpoint; @Value('${oss.bucket}') private String bucket; @Value('${oss.domain}') private String ossDomain; public static final String BUSINESS_NAME = 'OSS文件上传'; @Resource private FileService fileService; @PostMapping('/oss-append') public ResponseDto<FileDto> fileUpload(@RequestBody FileDto fileDto) throws Exception { LOG.info('上传文件开始'); String use = fileDto.getUse(); String key = fileDto.getKey(); String suffix = fileDto.getSuffix(); Integer shardIndex = fileDto.getShardIndex(); Integer shardSize = fileDto.getShardSize(); String shardBase64 = fileDto.getShard(); MultipartFile shard = Base64ToMultipartFile.base64ToMultipart(shardBase64); FileUseEnum useEnum = FileUseEnum.getByCode(use); String dir = useEnum.name().toLowerCase(); String path = dir +'/' +key +'.' +suffix; // 创建OSSClient实例。 OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret); ObjectMetadata meta = new ObjectMetadata(); // 指定上传的内容类型。 meta.setContentType('text/plain'); // 通过AppendObjectRequest设置多个参数。 AppendObjectRequest appendObjectRequest = new AppendObjectRequest(bucket, path, new ByteArrayInputStream(shard.getBytes()), meta); appendObjectRequest.setPosition((long) ((shardIndex - 1) * shardSize)); AppendObjectResult appendObjectResult = ossClient.appendObject(appendObjectRequest); // 文件的64位CRC值。此值根据ECMA-182标准计算得出。 System.out.println(appendObjectResult.getObjectCRC()); System.out.println(JSONObject.toJSONString(appendObjectResult)); ossClient.shutdown(); LOG.info('保存文件记录开始'); fileDto.setPath(path); fileService.save(fileDto); ResponseDto<FileDto> responseDto = new ResponseDto<>(); fileDto.setPath(ossDomain + path); responseDto.setContent(fileDto); return responseDto; } @PostMapping('/oss-simple') public ResponseDto<FileDto> fileUpload(@RequestParam MultipartFile file, String use) throws Exception { LOG.info('上传文件开始'); FileUseEnum useEnum = FileUseEnum.getByCode(use); String key = UuidUtil.getShortUuid(); String fileName = file.getOriginalFilename(); String suffix = fileName.substring(fileName.lastIndexOf('.') + 1).toLowerCase(); String dir = useEnum.name().toLowerCase(); String path = dir + '/' + key + '.' + suffix; // 创建OSSClient实例。 OSS ossClient = new OSSClientBuilder().build(endpoint, accessKeyId, accessKeySecret); PutObjectRequest putObjectRequest = new PutObjectRequest(bucket, path, new ByteArrayInputStream(file.getBytes())); ossClient.putObject(putObjectRequest); ResponseDto<FileDto> responseDto = new ResponseDto<>(); FileDto fileDto = new FileDto(); fileDto.setPath(ossDomain + path); responseDto.setContent(fileDto); return responseDto; }}

这部分内容可以参考阿里云的帮助手册：https://help.aliyun.com/document_detail/32011.html?spm=a2c4g.11174283.6.915.443b7da2mfhbKq

上面写的是两个接口：

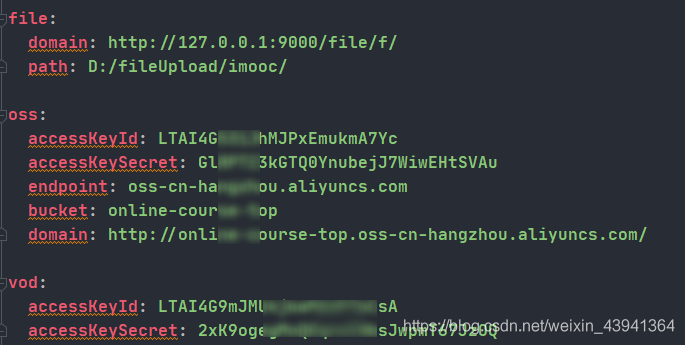

注意这里的参数都已经在 yml 文件中定义了：

上面的 KeyId 和 KeySecret 就是之前在创建用户时给的那两个，填上就行了。

在前端我们就可以发送请求获取数据，注意这里的对象是我自定义的，大家可以根据项目需求自行设置。

_this.$ajax.post(process.env.VUE_APP_SERVER + ’/file/admin/oss-simple’, formData).then(response => { Loading.hide(); let resp = response.data; _this.afterUpload(resp); // 清空原来控件中的值 $('#' + _this.inputId + '-input').val('');})

视频点播

VOD 是另一种视频存储的形式，它的功能更丰。阿里云视频点播（VOD）是集音视频上传、自动化转码处理、媒体资源管理、分发加速于一体的全链路音视频点播服务。

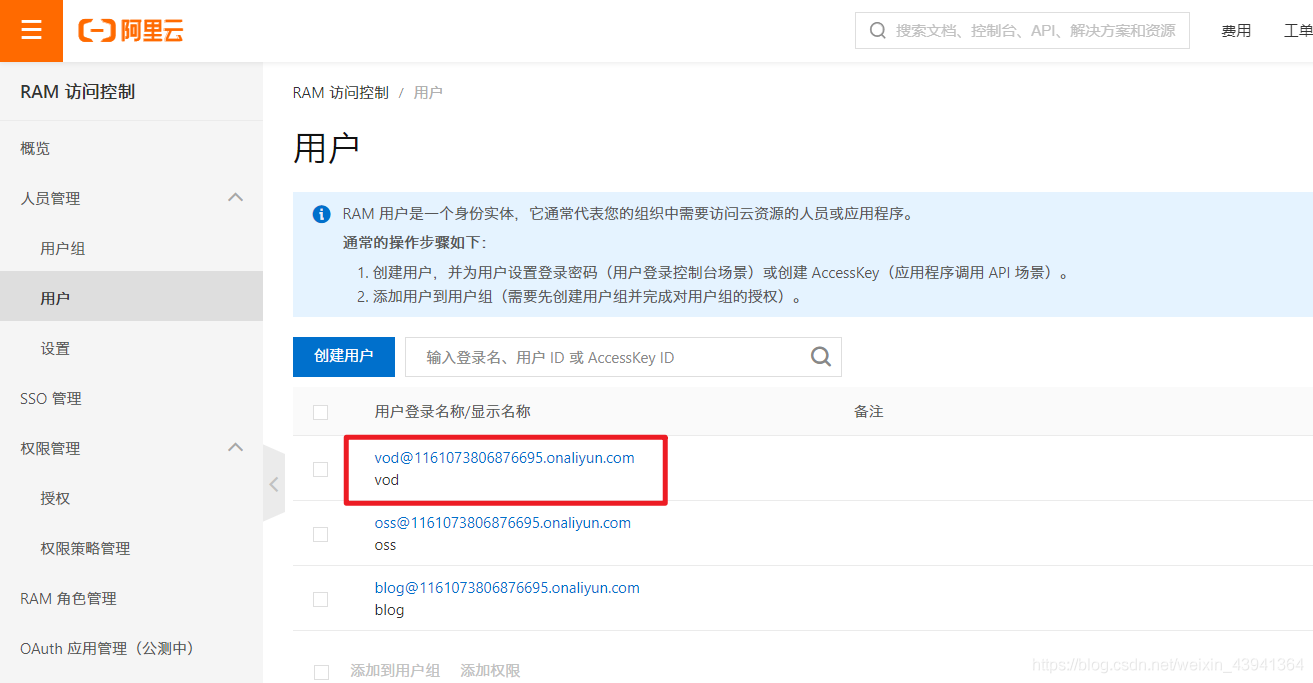

我们同样需要一个 VOD 的用户，给它赋予 VOD 的权限：

SDK 的使用可以参考文档：https://help.aliyun.com/document_detail/61063.html?spm=a2c4g.11186623.6.921.418f192bTDCIJN

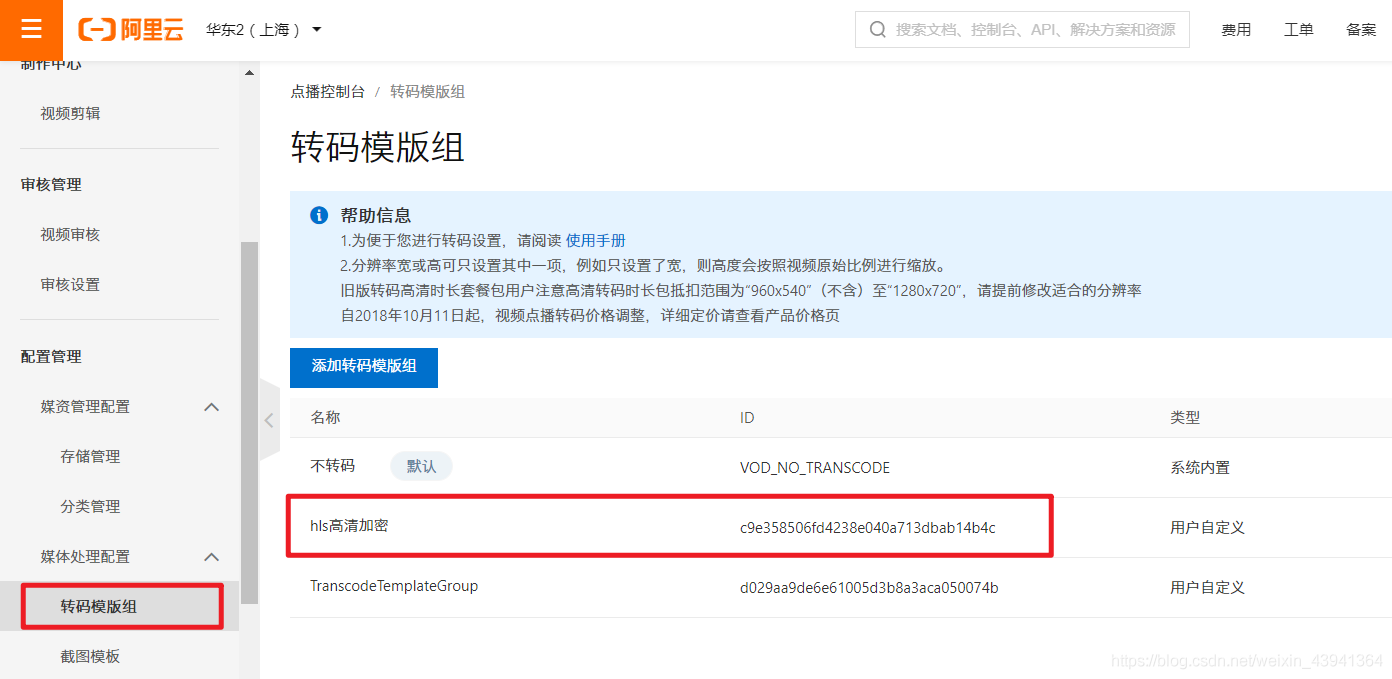

我们可以在转码组设置自己的模板，然后通过 ID 在代码中使用：

上传视频比较简单，和 OSS 很像，但是播放视频要多一个条件，在获取播放链接之前要先取得权限认证，所以下面单独写了一个 /get-auth/{vod} 接口，其中的参数就是 vod 的 ID，这个 ID 在我们上传视频之后会作为返回值返回的。

package com.lsu.file.controller.admin;import com.alibaba.fastjson.JSON;import com.alibaba.fastjson.JSONObject;import com.aliyun.oss.OSSClient;import com.aliyuncs.DefaultAcsClient;import com.aliyuncs.vod.model.v20170321.CreateUploadVideoResponse;import com.aliyuncs.vod.model.v20170321.GetMezzanineInfoResponse;import com.aliyuncs.vod.model.v20170321.GetVideoPlayAuthResponse;import com.lsu.server.dto.FileDto;import com.lsu.server.dto.ResponseDto;import com.lsu.server.enums.FileUseEnum;import com.lsu.server.service.FileService;import com.lsu.server.util.Base64ToMultipartFile;import com.lsu.server.util.VodUtil;import org.apache.commons.codec.binary.Base64;import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.beans.factory.annotation.Value;import org.springframework.web.bind.annotation.*;import org.springframework.web.multipart.MultipartFile;import javax.annotation.Resource;/** * @author wsuo */@RestController@RequestMapping('/admin')public class VodController { private static final Logger LOG = LoggerFactory.getLogger(FileController.class); @Value('${vod.accessKeyId}') private String accessKeyId; @Value('${vod.accessKeySecret}') private String accessKeySecret; public static final String BUSINESS_NAME = 'VOD视频上传'; @Resource private FileService fileService; @PostMapping('/vod') public ResponseDto<FileDto> fileUpload(@RequestBody FileDto fileDto) throws Exception { String use = fileDto.getUse(); String key = fileDto.getKey(); String suffix = fileDto.getSuffix(); Integer shardIndex = fileDto.getShardIndex(); Integer shardSize = fileDto.getShardSize(); String shardBase64 = fileDto.getShard(); MultipartFile shard = Base64ToMultipartFile.base64ToMultipart(shardBase64); FileUseEnum useEnum = FileUseEnum.getByCode(use); String dir = useEnum.name().toLowerCase(); String path = dir +'/' +key +'.' +suffix; //需要上传到VOD的本地视频文件的完整路径，需要包含文件扩展名 String vod = ''; String fileUrl = ''; try { // 初始化VOD客户端并获取上传地址和凭证 DefaultAcsClient vodClient = VodUtil.initVodClient(accessKeyId, accessKeySecret); CreateUploadVideoResponse createUploadVideoResponse = VodUtil.createUploadVideo(vodClient, path); // 执行成功会返回VideoId、UploadAddress和UploadAuth vod = createUploadVideoResponse.getVideoId(); JSONObject uploadAuth = JSONObject.parseObject( Base64.decodeBase64(createUploadVideoResponse.getUploadAuth()), JSONObject.class); JSONObject uploadAddress = JSONObject.parseObject( Base64.decodeBase64(createUploadVideoResponse.getUploadAddress()), JSONObject.class); // 使用UploadAuth和UploadAddress初始化OSS客户端 OSSClient ossClient = VodUtil.initOssClient(uploadAuth, uploadAddress); // 上传文件，注意是同步上传会阻塞等待，耗时与文件大小和网络上行带宽有关 if (shard != null) {VodUtil.uploadLocalFile(ossClient, uploadAddress, shard.getInputStream()); } System.out.println('上传视频成功, vod : ' + vod); GetMezzanineInfoResponse response = VodUtil.getMezzanineInfoResponse(vodClient, vod); System.out.println('获取视频信息 response = ' + JSON.toJSONString(response)); fileUrl = response.getMezzanine().getFileURL(); ossClient.shutdown(); } catch (Exception e) { System.out.println('上传视频失败, ErrorMessage : ' + e.getLocalizedMessage()); } fileDto.setPath(path); fileDto.setVod(vod); fileService.save(fileDto); ResponseDto<FileDto> responseDto = new ResponseDto<>(); fileDto.setPath(fileUrl); responseDto.setContent(fileDto); return responseDto; } @RequestMapping(value = '/get-auth/{vod}', method = RequestMethod.GET) public ResponseDto<String> getAuth(@PathVariable String vod) { LOG.info('获取播放授权开始'); ResponseDto<String> responseDto = new ResponseDto<>(); DefaultAcsClient client = VodUtil.initVodClient(accessKeyId, accessKeySecret); GetVideoPlayAuthResponse response; try { response = VodUtil.getVideoPlayAuthResponse(client, vod); String playAuth = response.getPlayAuth(); //播放凭证 LOG.info('授权码 = {}', playAuth); responseDto.setContent(playAuth); //VideoMeta信息 LOG.info('VideoMeta信息 = {}', response.getVideoMeta().getTitle()); } catch (Exception e) { System.out.print('ErrorMessage = ' + e.getLocalizedMessage()); } LOG.info('获取播放授权结束'); return responseDto; }}

methods: { playUrl(url) { let _this = this; console.log('开始播放:', url); // 如果已经有播放器了 就将播放器删除 if (_this.aliPlayer) { _this.aliPlayer = null; $('#' + _this.playerId + ’-player’).remove(); } // 初始化播放器 $('#' + _this.playerId).append('<div id='' + _this.playerId + '-player'></div>'); _this.aliPlayer = new Aliplayer({ id: _this.playerId + ’-player’, width: ’100%’, autoplay: true, //支持播放地址播放,此播放优先级最高 source: url, cover: ’http://liveroom-img.oss-cn-qingdao.aliyuncs.com/logo.png’ }, function (player) { console.log('播放器创建好了') }) }, playVod(vod) { let _this = this; Loading.show(); _this.$ajax.get(process.env.VUE_APP_SERVER + ’/file/admin/get-auth/’ + vod).then((response) => { Loading.hide(); let resp = response.data; if (resp.success) { //如果已经有播放器了，则将播放器div删除 if (_this.aliPlayer) { _this.aliPlayer = null; $('#' + _this.playerId + ’-player’).remove(); } // 初始化播放器 $('#' + _this.playerId).append('<div id='' + _this.playerId + '-player'></div>'); _this.aliPlayer = new Aliplayer({ id: _this.playerId + ’-player’, width: ’100%’, autoplay: false, vid: vod, playauth: resp.content, cover: ’http://liveroom-img.oss-cn-qingdao.aliyuncs.com/logo.png’, encryptType: 1, //当播放私有加密流时需要设置。 }, function (player) { console.log(’播放器创建好了。’) }); } else { Toast.warning(’播放错误。’) } }); }},

上述的前端代码只是一个例子，playVod 调用的是阿里的播放器。
