SpringBoot 集成 activiti的示例代码

SpringBoot 集成 activiti

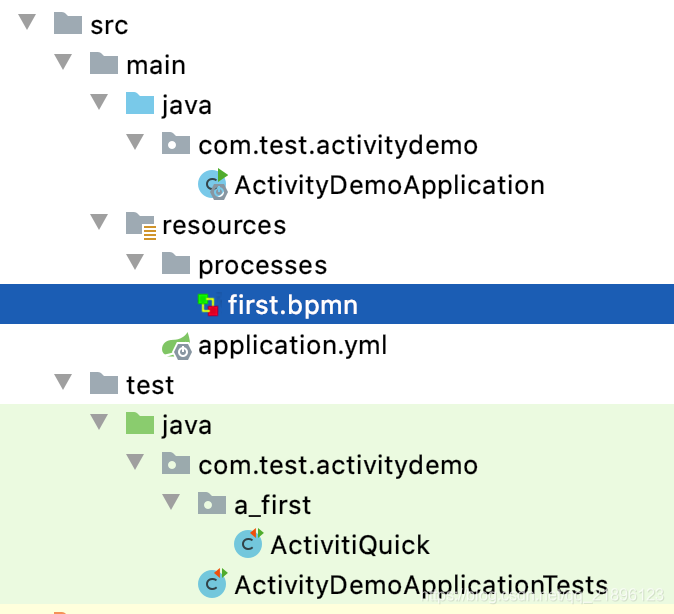

基础环境搭建

添加依赖

<dependency> <groupId>org.activiti</groupId> <artifactId>activiti-spring-boot-starter-basic</artifactId> <version>6.0.0</version> </dependency>

添加配置文件

server: tomcat: uri-encoding: UTF-8 threads: # 最大工作线程数，默认200 max: 1000 # 最小工作空闲线程数，默认10。（适当增大一些，以便应对突然增长的访问量） min-spare: 30 port: 8082spring: datasource: driver-class-name: com.mysql.cj.jdbc.Driver url: jdbc:mysql://127.0.0.1:3306/activiti6-demo?characterEncoding=utf8&useSSL=false username: root password: 123456 activiti: # 建表规则 # false 默认值。在启动时会对比数据库中保存的版本，如果没有表或版本不匹配则抛出异常。生产环境常用 # true 对activiti所有表进行更新操作，不存在则自动创建。开发常用 # create_drop 在启动时创建，在关闭时删除（必须手动关闭引擎，才能删除）。单元测试常用 # drop_create 在启动时删除原来的旧表，然后在创建新表（不需要手动关闭引擎） database-schema-update: true # 启动的时候是否自动部署流程 check-process-definitions: false # 历史数据 # none 不保存任何的历史数据，因此，在流程执行过程中，这是最高效的 # activity 级别高于none，保存流程实例与流程行为，其他数据不保存 # audit 除activity级别会保存的数据外，还会保存全部的流程任务及其属性。audit为history的默认值 # full 保存历史数据的最高级别，除了会保存audit级别的数据外，还会保存其他全部流程相关的细节数据，包括一些流程参数等 history-level: audit # 不生成历史表 activiti6默认启用,activiti7默认关闭 db-history-used: true

现在运行项目报错

java.lang.IllegalArgumentException: Could not find class [org.springframework.boot.autoconfigure.security.SecurityAutoConfiguration]at org.springframework.util.ClassUtils.resolveClassName(ClassUtils.java:334) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.core.annotation.TypeMappedAnnotation.adapt(TypeMappedAnnotation.java:446) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.core.annotation.TypeMappedAnnotation.getValue(TypeMappedAnnotation.java:369) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.core.annotation.TypeMappedAnnotation.asMap(TypeMappedAnnotation.java:284) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.core.annotation.AbstractMergedAnnotation.asAnnotationAttributes(AbstractMergedAnnotation.java:193) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.core.type.AnnotatedTypeMetadata.getAnnotationAttributes(AnnotatedTypeMetadata.java:106) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.AnnotationConfigUtils.attributesFor(AnnotationConfigUtils.java:285) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.AnnotationBeanNameGenerator.determineBeanNameFromAnnotation(AnnotationBeanNameGenerator.java:102) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.AnnotationBeanNameGenerator.generateBeanName(AnnotationBeanNameGenerator.java:81) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.ConfigurationClassBeanDefinitionReader.registerBeanDefinitionForImportedConfigurationClass(ConfigurationClassBeanDefinitionReader.java:160) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.ConfigurationClassBeanDefinitionReader.loadBeanDefinitionsForConfigurationClass(ConfigurationClassBeanDefinitionReader.java:141) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.ConfigurationClassBeanDefinitionReader.loadBeanDefinitions(ConfigurationClassBeanDefinitionReader.java:120) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.ConfigurationClassPostProcessor.processConfigBeanDefinitions(ConfigurationClassPostProcessor.java:331) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.ConfigurationClassPostProcessor.postProcessBeanDefinitionRegistry(ConfigurationClassPostProcessor.java:236) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.support.PostProcessorRegistrationDelegate.invokeBeanDefinitionRegistryPostProcessors(PostProcessorRegistrationDelegate.java:280) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.support.PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(PostProcessorRegistrationDelegate.java:96) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.support.AbstractApplicationContext.invokeBeanFactoryPostProcessors(AbstractApplicationContext.java:707) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:533) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:143) ~[spring-boot-2.3.4.RELEASE.jar:2.3.4.RELEASE]at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:758) [spring-boot-2.3.4.RELEASE.jar:2.3.4.RELEASE]at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:750) [spring-boot-2.3.4.RELEASE.jar:2.3.4.RELEASE]at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:397) [spring-boot-2.3.4.RELEASE.jar:2.3.4.RELEASE]at org.springframework.boot.SpringApplication.run(SpringApplication.java:315) [spring-boot-2.3.4.RELEASE.jar:2.3.4.RELEASE]at org.springframework.boot.SpringApplication.run(SpringApplication.java:1237) [spring-boot-2.3.4.RELEASE.jar:2.3.4.RELEASE]at org.springframework.boot.SpringApplication.run(SpringApplication.java:1226) [spring-boot-2.3.4.RELEASE.jar:2.3.4.RELEASE]at com.test.activitydemo.ActivityDemoApplication.main(ActivityDemoApplication.java:11) [classes/:na]Caused by: java.lang.ClassNotFoundException: org.springframework.boot.autoconfigure.security.SecurityAutoConfigurationat java.net.URLClassLoader.findClass(URLClassLoader.java:382) ~[na:1.8.0_191]at java.lang.ClassLoader.loadClass(ClassLoader.java:424) ~[na:1.8.0_191]at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:349) ~[na:1.8.0_191]at java.lang.ClassLoader.loadClass(ClassLoader.java:357) ~[na:1.8.0_191]at java.lang.Class.forName0(Native Method) ~[na:1.8.0_191]at java.lang.Class.forName(Class.java:348) ~[na:1.8.0_191]at org.springframework.util.ClassUtils.forName(ClassUtils.java:284) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.util.ClassUtils.resolveClassName(ClassUtils.java:324) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]... 25 common frames omitted

在启动类中排除安全配置就可以成功运行

@SpringBootApplication( exclude = SecurityAutoConfiguration.class)public class ActivityDemoApplication { public static void main(String[] args) { SpringApplication.run(ActivityDemoApplication.class, args); }}

idea 流程图插件

链接: https://pan.baidu.com/s/1UFSV1lfhVjc3eEdFCpTtxQ 密码: gw6s

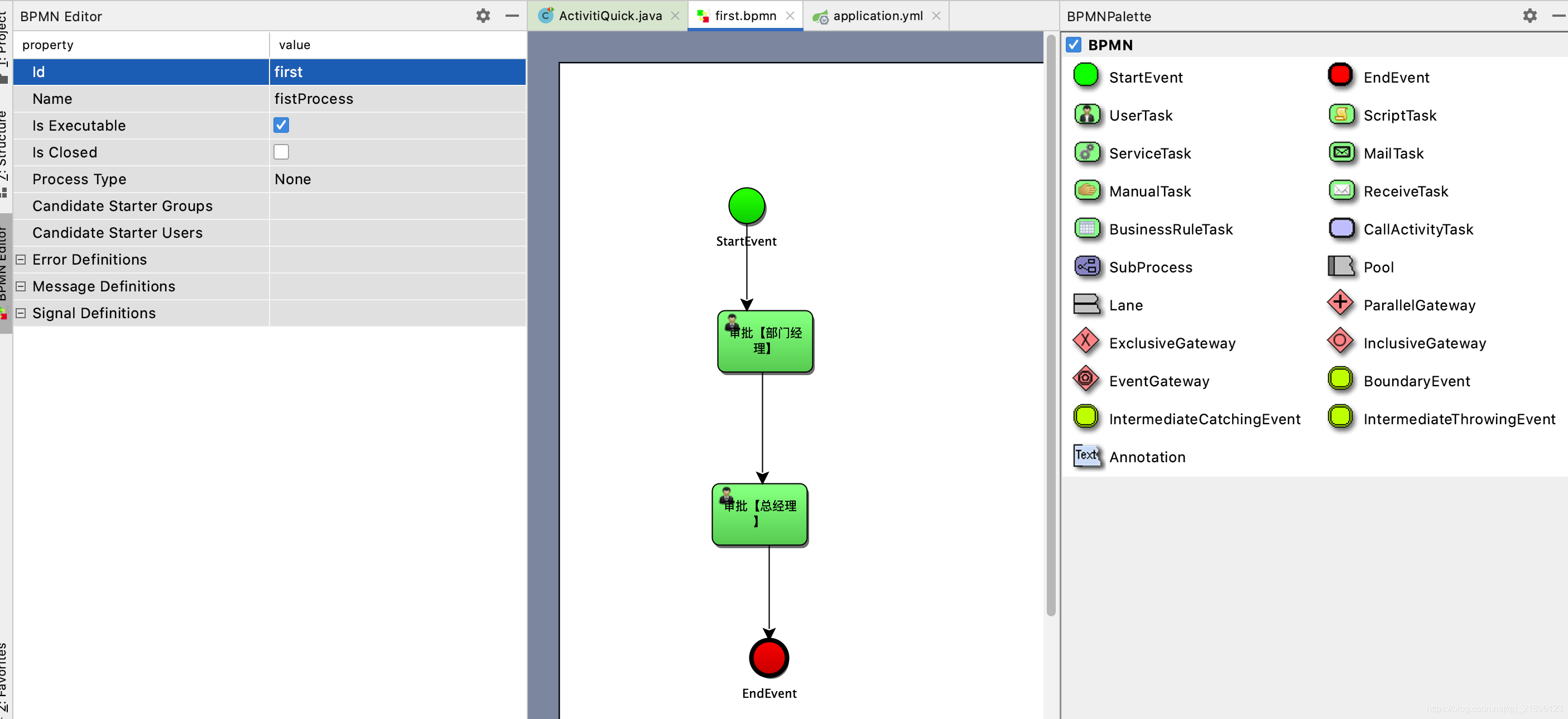

简单的请假流程 画流程图

请假

package com.test.activitydemo.a_first;import com.test.activitydemo.ActivityDemoApplicationTests;import org.activiti.engine.HistoryService;import org.activiti.engine.RepositoryService;import org.activiti.engine.RuntimeService;import org.activiti.engine.TaskService;import org.activiti.engine.history.HistoricProcessInstance;import org.activiti.engine.history.HistoricTaskInstance;import org.activiti.engine.repository.Deployment;import org.activiti.engine.runtime.ProcessInstance;import org.activiti.engine.task.Task;import org.junit.jupiter.api.Test;import org.springframework.util.CollectionUtils;import javax.annotation.Resource;import java.util.List;/** * <p> * * </p> * * @author jisen wang * @Date 2020/10/7 */public class ActivitiQuick extends ActivityDemoApplicationTests { @Resource private RepositoryService repositoryService; @Resource private RuntimeService runtimeService; @Resource private TaskService taskService; @Resource private HistoryService historyService; private final String bpmnNameAndKey = 'first'; /*见表，默认启动的时候就会建好表格*/ @Test public void createTable() { } /*第一步：--永远是画制流程图---部署流程图*/ @Test public void deploy() { Deployment deploy = repositoryService.createDeployment().addClasspathResource('processes/first.bpmn')//.addClasspathResource('processes/first.png').key(bpmnNameAndKey).name(bpmnNameAndKey + 'name').category('HR').deploy(); System.out.println('流程部署IDt' + deploy.getId()); System.out.println('流程keyIDt' + deploy.getKey()); System.out.println('流程名称IDt' + deploy.getName()); System.out.println('流程分类IDt' + deploy.getCategory()); } /*第二步：启动一个流程实例，相当于----有人请假一次*/ @Test public void start() { ProcessInstance processInstance = runtimeService.startProcessInstanceByKey(bpmnNameAndKey); System.out.println('流程实例IDt' + processInstance.getId()); System.out.println('流程定义IDt' + processInstance.getProcessDefinitionId()); System.out.println('流程定义keyt' + processInstance.getProcessDefinitionKey()); } /*第三步:查找个人待办任务列表*/ @Test public void findMyTask() { String assignee = '李四'; List<Task> list = taskService.createTaskQuery().taskAssignee(assignee).list(); if (!CollectionUtils.isEmpty(list)) { for (Task task : list) {System.out.println('任务IDt' + task.getId());System.out.println('任务名称t' + task.getName());System.out.println('任务执行人t' + task.getAssignee()); } } } /*第四步：执行任务*/ @Test public void complte() { String taskId = '5002'; taskService.complete(taskId); System.out.println('任务执行完成'); } /*第五步：查看历史流程实例*/ @Test public void findhistProcessInstance() { List<HistoricProcessInstance> list = historyService.createHistoricProcessInstanceQuery().processDefinitionKey(bpmnNameAndKey).list(); if (!CollectionUtils.isEmpty(list)) { for (HistoricProcessInstance historicProcessInstance : list) {System.out.println('业务系统keyt' + historicProcessInstance.getBusinessKey());System.out.println('部署对象IDt' + historicProcessInstance.getDeploymentId());System.out.println('执行时长t' + historicProcessInstance.getDurationInMillis());System.out.println('流程定义IDt' + historicProcessInstance.getProcessDefinitionId());System.out.println('流程定义的keyt' + historicProcessInstance.getProcessDefinitionKey());System.out.println('流程定义名称t' + historicProcessInstance.getProcessDefinitionName()); } } } /*第六步：查看历史任务*/ @Test public void findHisTask(){ List<HistoricTaskInstance> list = historyService.createHistoricTaskInstanceQuery().list(); if (!CollectionUtils.isEmpty(list)) { for (HistoricTaskInstance historicTaskInstance : list) {System.out.println('任务执行人t' + historicTaskInstance.getAssignee());System.out.println('任务名称t' + historicTaskInstance.getName());System.out.println('任务IDt' + historicTaskInstance.getId());System.out.println('流程实例IDt' + historicTaskInstance.getProcessInstanceId());System.out.println('*****************'); } } }}
