IDEA SSM框架整合配置及步骤详解

狂神说SpringMVC05：整合SSM框架

https://mp.weixin.qq.com/s?__biz=Mzg2NTAzMTExNg==&mid=2247484004&idx=1&sn=cef9d881d0a8d7db7e8ddc6a380a9a76&scene=19#wechat_redirect

根据自己的环境参考狂神的视频进行了SSM框架整合,用于备忘

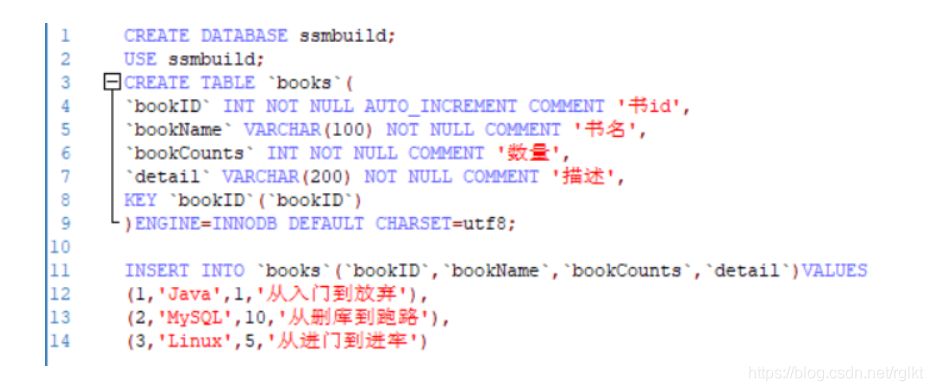

1. 创建数据库

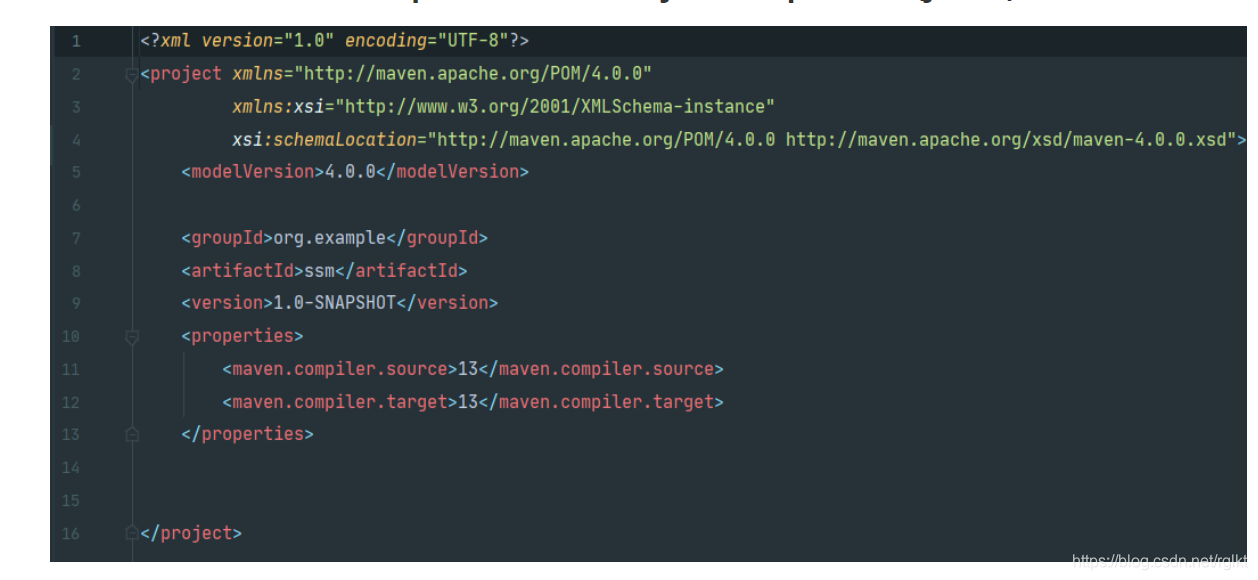

2. IDEA创建maven项目.在pom.xml中设设置java conpiler版本(jdk13)

3. 导入依赖 jnuit 数据库驱动 数据库连接 Severlet JSp

4. maven 资源过滤

<?xml version='1.0' encoding='UTF-8'?><project xmlns='http://maven.apache.org/POM/4.0.0' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd'> <modelVersion>4.0.0</modelVersion> <build> <resources> <resource> <directory>src/main/java</directory> <includes> <include>**/*.properties</include> <include>**/*.xml</include> </includes> <filtering>false</filtering> </resource> <resource> <directory>src/main/resources</directory> <includes> <include>**/*.properties</include> <include>**/*.xml</include> </includes> <filtering>false</filtering> </resource> </resources> </build> <groupId>org.example</groupId> <artifactId>ssm</artifactId> <version>1.0-SNAPSHOT</version> <properties> <maven.compiler.source>13</maven.compiler.source> <maven.compiler.target>13</maven.compiler.target> </properties> <dependencies> <!--Junit--> <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>4.12</version> </dependency> <!--数据库驱动--> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>5.1.47</version> </dependency> <!-- 数据库连接池 --> <dependency> <groupId>com.mchange</groupId> <artifactId>c3p0</artifactId> <version>0.9.5.2</version> </dependency> <!--Servlet - JSP --> <dependency> <groupId>javax.servlet</groupId> <artifactId>servlet-api</artifactId> <version>2.5</version> </dependency> <dependency> <groupId>javax.servlet.jsp</groupId> <artifactId>jsp-api</artifactId> <version>2.2</version> </dependency> <dependency> <groupId>javax.servlet</groupId> <artifactId>jstl</artifactId> <version>1.2</version> </dependency> <!--Mybatis--> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis</artifactId> <version>3.5.2</version> </dependency> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis-spring</artifactId> <version>2.0.6</version> </dependency> <!--Spring--> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-webmvc</artifactId> <version>5.3.4</version> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-jdbc</artifactId> <version>5.3.4</version> </dependency> </dependencies></project>

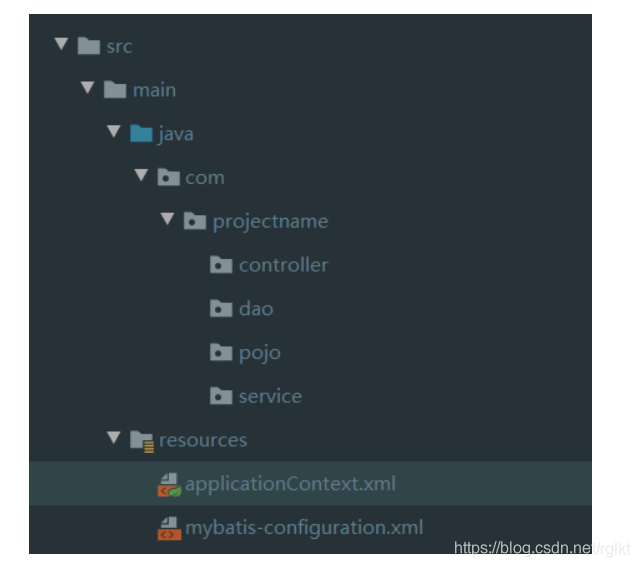

5. 创建两个项目的目录结构以及Spring 和 Mybatis的配置文件

<?xml version='1.0' encoding='UTF-8'?><beans xmlns='http://www.springframework.org/schema/beans' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd'></beans>

<?xml version='1.0' encoding='UTF-8' ?><!DOCTYPE configuration PUBLIC '-//mybatis.org//DTD Config 3.0//EN' 'http://mybatis.org/dtd/mybatis-3-config.dtd'><configuration></configuration>Mybatis

6. 配置数据库属性

jdbc.driver=com.mysql.jdbc.Driverjdbc.url=jdbc:mysql://localhost:3306/ssmbuild?useSSL=false&useUnicode=true&characterEncoding=UTF-8&serverTimezone=UTCjdbc.username=rootjdbc.password=root

7. 创建Book实体类(使用lombok插件),编写Dao层mapper接口,在mybatis配置中注册mapper

package com.projectname.pojo;import lombok.AllArgsConstructor;import lombok.Data;import lombok.NoArgsConstructor;@Data@AllArgsConstructor@NoArgsConstructorpublic class Book { private int bookID; private String bookName; private int bookCounts; private String detail;}

package com.projectname.dao;import com.projectname.pojo.Book;import java.util.List;public interface DaoBook { //增加一个Book int addBook(Book book); //根据id删除一个Book int deleteBookById(int id); //更新Book int updateBook(Book books); //根据id查询,返回一个Book Book queryBookById(int id); //查询全部Book,返回list集合 List<Book> queryAllBook();}

<?xml version='1.0' encoding='UTF-8' ?><!DOCTYPE mapper PUBLIC '-//mybatis.org//DTD Mapper 3.0//EN' 'http://mybatis.org/dtd/mybatis-3-mapper.dtd'><mapper namespace='com.kuang.dao.BookMapper'> <!--增加一个Book--> <insert parameterType='Books'> insert into ssmbuild.books(bookName,bookCounts,detail) values (#{bookName}, #{bookCounts}, #{detail}) </insert> <!--根据id删除一个Book--> <delete parameterType='int'> delete from ssmbuild.books where bookID=#{bookID} </delete> <!--更新Book--> <update parameterType='Books'> update ssmbuild.books set bookName = #{bookName},bookCounts = #{bookCounts},detail = #{detail} where bookID = #{bookID} </update> <!--根据id查询,返回一个Book--> <select resultType='Books'> select * from ssmbuild.books where bookID = #{bookID} </select> <!--查询全部Book--> <select resultType='Books'> SELECT * from ssmbuild.books </select></mapper>

<?xml version='1.0' encoding='UTF-8' ?><!DOCTYPE configuration PUBLIC '-//mybatis.org//DTD Config 3.0//EN' 'http://mybatis.org/dtd/mybatis-3-config.dtd'><configuration><mappers><mapper resource='com/projectname/dao/BookMapper.xml'/></mappers></configuration>

8. 编写service层的接口和实现类代码

package com.projectname.service;import com.projectname.pojo.Book;import java.util.List;public interface BookService { //增加一个Book int addBook(Book book); //根据id删除一个Book int deleteBookById(int id); //更新Book int updateBook(Book books); //根据id查询,返回一个Book Book queryBookById(int id); //查询全部Book,返回list集合 List<Book> queryAllBook();}

package com.projectname.service;import com.projectname.dao.BookMapper;import com.projectname.pojo.Book;import java.util.List;public class BookServiceImpl implements BookService { //调用dao层的操作，设置一个set接口，方便Spring管理 private BookMapper bookMapper; public void setBookMapper(BookMapper bookMapper) { this.bookMapper = bookMapper; } public int addBook(Book book) { return bookMapper.addBook(book); } public int deleteBookById(int id) { return bookMapper.deleteBookById(id); } public int updateBook(Book books) { return bookMapper.updateBook(books); } public Book queryBookById(int id) { return bookMapper.queryBookById(id); } public List<Book> queryAllBook() { return bookMapper.queryAllBook(); }}Spring

9. 使用Spring编写Mybatis配置文件:spring-dao.xml

<?xml version='1.0' encoding='UTF-8'?><beans xmlns='http://www.springframework.org/schema/beans' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:context='http://www.springframework.org/schema/context' xsi:schemaLocation='http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd'> <context:property-placeholder location='classpath:database.properties'/> <!-- 2.数据库连接池 --> <!--数据库连接池 dbcp 半自动化操作 不能自动连接 c3p0 自动化操作（自动的加载配置文件 并且设置到对象里面） --> <bean class='com.mchange.v2.c3p0.ComboPooledDataSource'> <!-- 配置连接池属性 --> <property name='driverClass' value='${jdbc.driver}'/> <property name='jdbcUrl' value='${jdbc.url}'/> <property name='user' value='${jdbc.username}'/> <property name='password' value='${jdbc.password}'/> <!-- c3p0连接池的私有属性 --> <property name='maxPoolSize' value='30'/> <property name='minPoolSize' value='10'/> <!-- 关闭连接后不自动commit --> <property name='autoCommitOnClose' value='false'/> <!-- 获取连接超时时间 --> <property name='checkoutTimeout' value='10000'/> <!-- 当获取连接失败重试次数 --> <property name='acquireRetryAttempts' value='2'/> </bean> <!-- 3.配置SqlSessionFactory对象 --> <bean class='org.mybatis.spring.SqlSessionFactoryBean'> <!-- 注入数据库连接池 --> <property name='dataSource' ref='dataSource'/> <!-- 配置MyBaties全局配置文件:mybatis-config.xml --> <property name='configLocation' value='classpath:mybatis-configuration.xml'/> </bean> <!-- 4.配置扫描Dao接口包，动态实现Dao接口注入到spring容器中 --> <!--解释 ：https://www.cnblogs.com/jpfss/p/7799806.html--> <bean class='org.mybatis.spring.mapper.MapperScannerConfigurer'> <!-- 注入sqlSessionFactory --> <property name='sqlSessionFactoryBeanName' value='sqlSessionFactory'/> <!-- 给出需要扫描Dao接口包 --> <property name='basePackage' value='com.projectname.dao'/> </bean></beans>

10. Spring 整合service层

spring-service

<?xml version='1.0' encoding='UTF-8'?><beans xmlns='http://www.springframework.org/schema/beans' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:context='http://www.springframework.org/schema/context' xsi:schemaLocation='http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd'> <!-- 扫描service相关的bean --> <context:component-scan base-package='com.projectname.service' /> <!--BookServiceImpl注入到IOC容器中--> <bean class='com.projectname.service.BookServiceImpl'> <property name='bookMapper' ref='bookMapper'/> </bean> <!-- 配置事务管理器 --> <bean class='org.springframework.jdbc.datasource.DataSourceTransactionManager'> <!-- 注入数据库连接池 --> <property name='dataSource' ref='dataSource' /> </bean></beans>Spring MVC层

11. configuate the web.xml

<?xml version='1.0' encoding='UTF-8'?><web-app xmlns='http://xmlns.jcp.org/xml/ns/javaee' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd' version='4.0'> <!-- 配置SpringMVC --> <!-- 1.开启SpringMVC注解驱动 --> <servlet> <servlet-name>DispatcherServlet</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <init-param> <param-name>contextConfigLocation</param-name> <!--一定要注意:我们这里加载的是总的配置文件，之前被这里坑了！--> <param-value>classpath:applicationContext.xml</param-value> </init-param> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>DispatcherServlet</servlet-name> <url-pattern>/</url-pattern> </servlet-mapping> <!--encodingFilter--> <filter> <filter-name>encodingFilter</filter-name> <filter-class> org.springframework.web.filter.CharacterEncodingFilter </filter-class> <init-param> <param-name>encoding</param-name> <param-value>utf-8</param-value> </init-param> </filter> <filter-mapping> <filter-name>encodingFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> <!--Session过期时间--> <session-config> <session-timeout>15</session-timeout> </session-config></web-app>

12. spring-mvc.xml

<?xml version='1.0' encoding='UTF-8'?><beans xmlns='http://www.springframework.org/schema/beans' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:mvc='http://www.springframework.org/schema/mvc' xmlns:context='http://www.springframework.org/schema/context' xsi:schemaLocation='http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd'> <!-- 配置SpringMVC --> <!-- 1.开启SpringMVC注解驱动 --> <mvc:annotation-driven /> <!-- 2.静态资源默认servlet配置--> <mvc:default-servlet-handler/> <!-- 3.配置jsp 显示ViewResolver视图解析器 --> <bean class='org.springframework.web.servlet.view.InternalResourceViewResolver'> <property name='viewClass' value='org.springframework.web.servlet.view.JstlView' /> <property name='prefix' value='/WEB-INF/jsp/' /> <property name='suffix' value='.jsp' /> </bean> <!-- 4.扫描web相关的bean --> <context:component-scan base-package='com.projectname.controller' /></beans>

13. configuate applicationContext.xml

<?xml version='1.0' encoding='UTF-8'?><beans xmlns='http://www.springframework.org/schema/beans' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:mvc='http://www.springframework.org/schema/mvc' xmlns:context='http://www.springframework.org/schema/context' xsi:schemaLocation='http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd'> <import resource='spring-dao.xml'/> <import resource='spring-service.xml'/> <import resource='spring-mvc.xml'/></beans>一些杂七杂八的配置

14. 添加日志功能

<settings> <setting name='logImpl' value='STDOUT_LOGGING'/></settings>

15. add lib

File -> Project Structure->ArtifactsType -> Bundle

new directory lib
