SQLServer导出数据库字典的详细图文教程
SQL
直接修改带注释那行的表名称即可。
SELECT 表名=case when a.colorder=1 then d.name else "" end, 表说明=case when a.colorder=1 then isnull(f.value,"") else "" end,字段序号=a.colorder, 字段名=a.name, 标识=case when COLUMNPROPERTY(a.id,a.name,"IsIdentity")=1 then "√"else "" end, 主键=case when exists(SELECT 1 FROM sysobjects where xtype="PK" and name in ( SELECT name FROM sysindexes WHERE indid in( SELECT indid FROM sysindexkeys WHERE id = a.id AND colid=a.colid ))) then "√" else "" end, 类型=b.name, 占用字节数=a.length, 长度=COLUMNPROPERTY(a.id,a.name,"PRECISION"), 小数位数=isnull(COLUMNPROPERTY(a.id,a.name,"Scale"),0), 允许空=case when a.isnullable=1 then "√"else "" end, 默认值=isnull(e.text,""), 字段说明=isnull(g.[value],"") FROM syscolumns a left join systypes b on a.xtype=b.xusertype inner join sysobjects d on a.id=d.id and d.xtype="U" and d.name<>"dtproperties" left join syscomments e on a.cdefault=e.id left join sys.extended_properties g on a.id=g.major_id and a.colid=g.minor_id left join sys.extended_properties f on d.id=f.major_id and f.minor_id =0 where d.name="girlSix" --如果只查询指定表,加上此条件 order by a.id,a.colorder
测试sql
CREATE TABLE [dbo].[girlSix] ([id] varchar(32) NOT NULL DEFAULT (replace(newid(),"-","")) ,[createDate] datetime NOT NULL DEFAULT (getdate()) ,[nickName] varchar(30) NOT NULL ,[introduce] nvarchar(200) NOT NULL ) GOIF ((SELECT COUNT(*) from fn_listextendedproperty("MS_Description", "SCHEMA", N"dbo", "TABLE", N"girlSix", "COLUMN", N"nickName")) > 0) EXEC sp_updateextendedproperty @name = N"MS_Description", @value = N"名字", @level0type = "SCHEMA", @level0name = N"dbo", @level1type = "TABLE", @level1name = N"girlSix", @level2type = "COLUMN", @level2name = N"nickName"ELSEEXEC sp_addextendedproperty @name = N"MS_Description", @value = N"名字", @level0type = "SCHEMA", @level0name = N"dbo", @level1type = "TABLE", @level1name = N"girlSix", @level2type = "COLUMN", @level2name = N"nickName"GOIF ((SELECT COUNT(*) from fn_listextendedproperty("MS_Description", "SCHEMA", N"dbo", "TABLE", N"girlSix", "COLUMN", N"introduce")) > 0) EXEC sp_updateextendedproperty @name = N"MS_Description", @value = N"介绍", @level0type = "SCHEMA", @level0name = N"dbo", @level1type = "TABLE", @level1name = N"girlSix", @level2type = "COLUMN", @level2name = N"introduce"ELSEEXEC sp_addextendedproperty @name = N"MS_Description", @value = N"介绍", @level0type = "SCHEMA", @level0name = N"dbo", @level1type = "TABLE", @level1name = N"girlSix", @level2type = "COLUMN", @level2name = N"introduce"GO -- ------------------------------ Records of girlSix-- ----------------------------INSERT INTO [dbo].[girlSix] ([id], [createDate], [nickName], [introduce]) VALUES (N"04e3d962adcb4a5b8fefaf8b46995e85", N"2020-05-27 09:05:52.000", N"董新颖", N"郭老师关门弟子之一。");GOINSERT INTO [dbo].[girlSix] ([id], [createDate], [nickName], [introduce]) VALUES (N"568fc305930347d3bec1ddd08c71ad29", N"2020-05-27 09:01:09.000", N"王笑涵", N"北方有佳人,绝世而独立。");GOINSERT INTO [dbo].[girlSix] ([id], [createDate], [nickName], [introduce]) VALUES (N"972ec358089042e0bf24fd9efca47bde", N"2020-05-27 08:59:49.000", N"牛龙珠", N"笑若桃花三月开,清风徐徐醉颜来。");GOINSERT INTO [dbo].[girlSix] ([id], [createDate], [nickName], [introduce]) VALUES (N"BDFFC6A36A53408281EB8CA242C0E7A3", N"2020-05-27 08:42:31.000", N"闫春娜", N"珠缨旋转星宿摇,花蔓抖擞龙蛇动。");GOINSERT INTO [dbo].[girlSix] ([id], [createDate], [nickName], [introduce]) VALUES (N"efb0ca854dac456b9d8c42d4c4b1bce0", N"2020-05-27 09:03:30.000", N"刘梓佳", N"明眸善睐,辅靥承权,瑰姿艳逸,怡静体闲,端的是好一个花王,富贵的牡丹。");GOINSERT INTO [dbo].[girlSix] ([id], [createDate], [nickName], [introduce]) VALUES (N"f839343b980e45caafaa9d2c9797294b", N"2020-05-27 09:04:53.000", N"魏慧娟", N"脉脉眼中波,盈盈花盛处。");GO -- ------------------------------ Indexes structure for table girlSix-- ---------------------------- -- ------------------------------ Primary Key structure for table [dbo].[girlSix]-- ----------------------------ALTER TABLE [dbo].[girlSix] ADD PRIMARY KEY ([id])GO

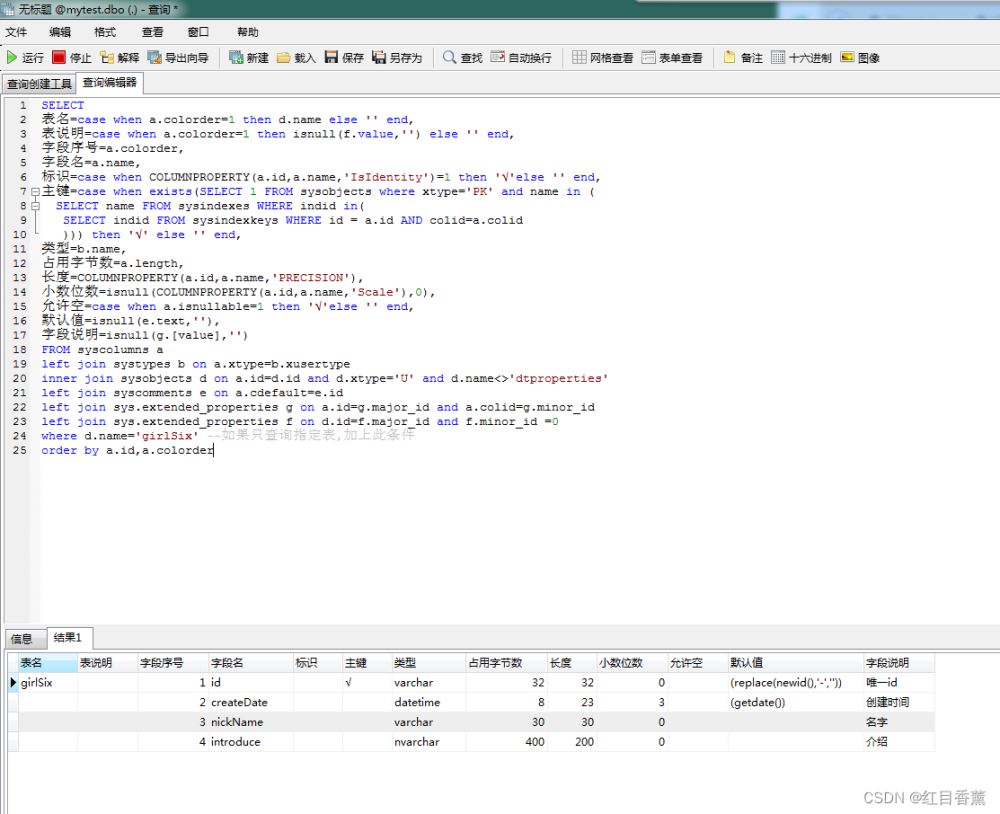

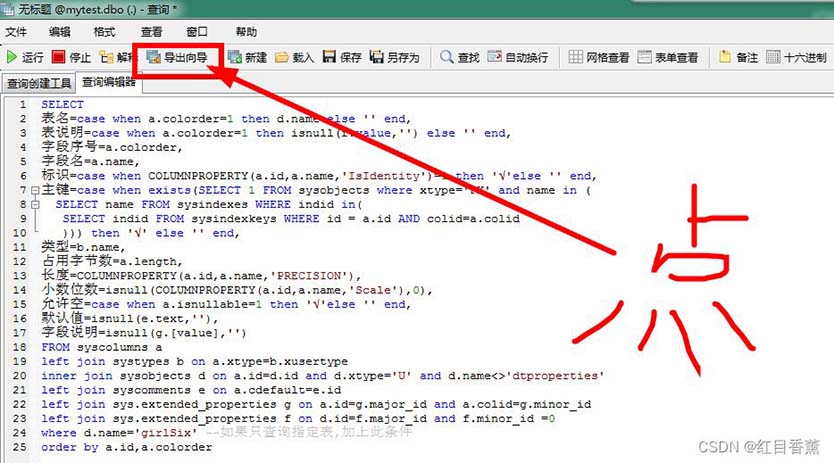

执行效果
导出结果:

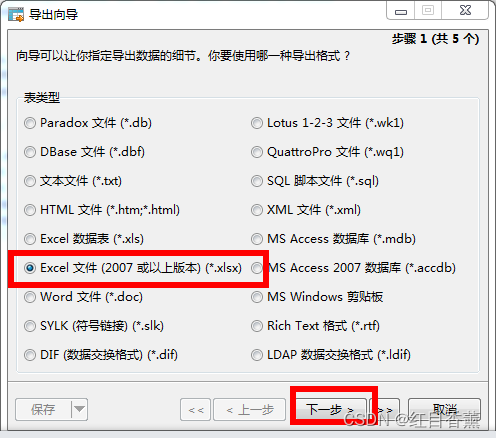

点击导出向导后会出现以下提示,我们选择【Excel文件(2007或以上版本)(*.xlsx)】格式进行导出,单选选择后点击下一步。

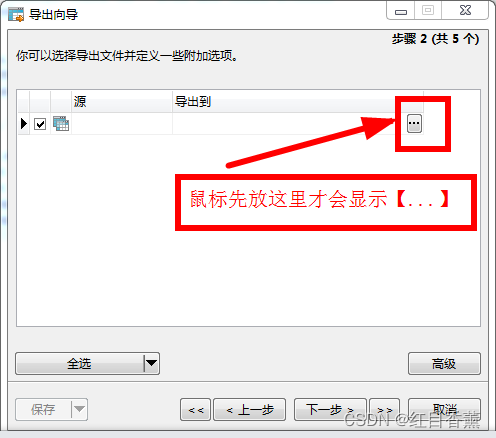

这里的样式提示只有鼠标放在上面的时候才会提示,这个是导出文件的放置位置,我们直接点击【...】设置存储位置即可。

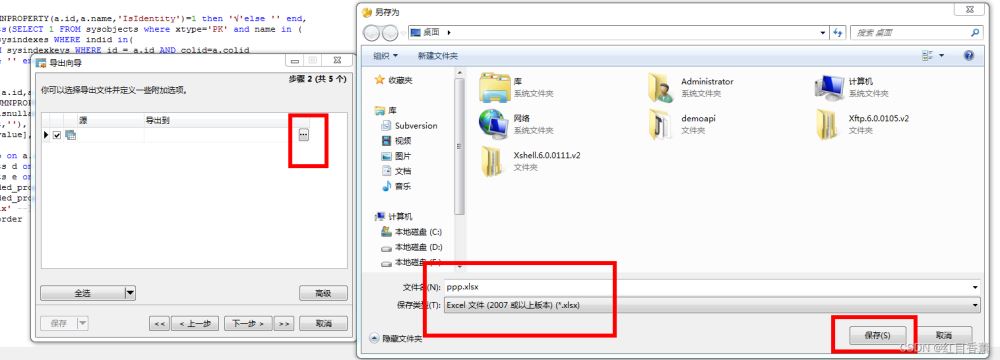

选择位置,我这里就放在桌面了,名字给一个就行,可以看到对应的保存格式是Excel2007的表格格式,我这个版本比较老的工具,可以使用最新的能导出更新的一些版本格式。

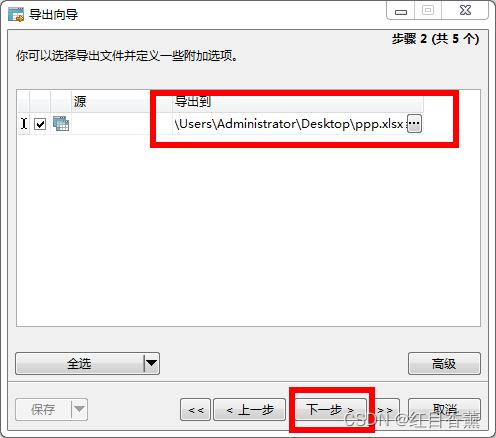

看到对应的路径输入成功,我们直接点击下一步即可。

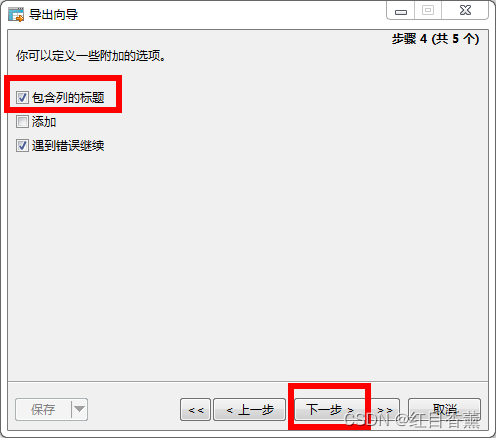

这里勾选一下【包含列的标题】,再点击【下一步】。

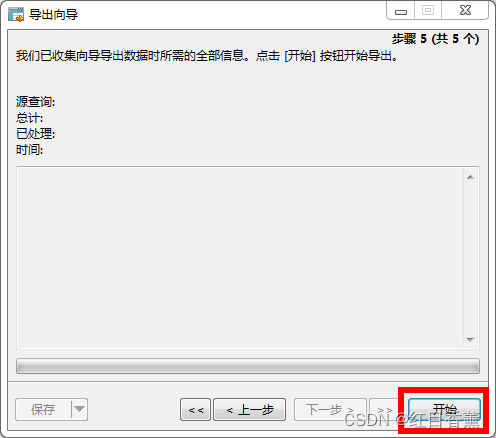

点击开始

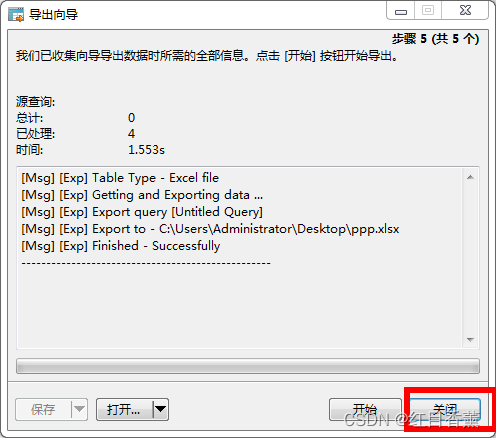

完成后点击关闭即可。
我们到桌面看看是否存在。

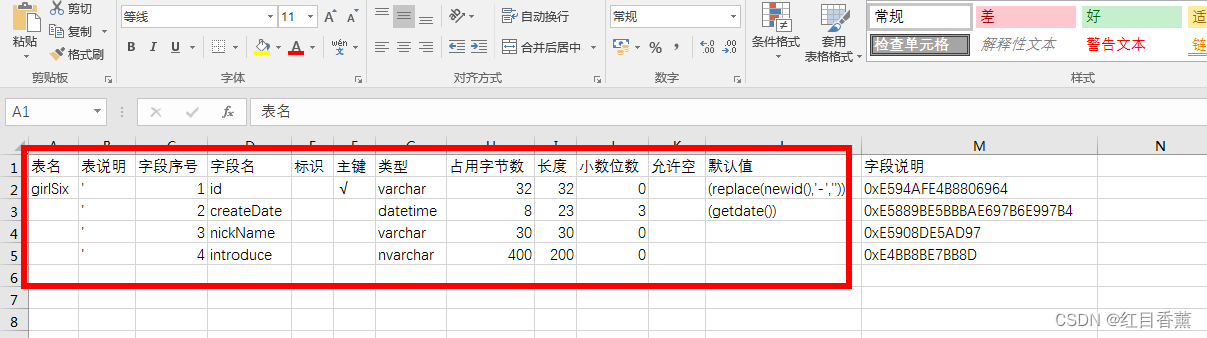

查看效果:
可以看到除字段说明外都是正常的,我们字段说明的时候可以采用中文,因为导出数据无论是【GBK】还是【UTF-8】都无法正常输出中文,我们就不用麻烦了,需要使用的话可以自己处理一下最后一列的字段说明。
这里我介绍一下【Chinese_PRC_CI_AS】,因为我们创建数据库默认的数据库编码格式就是这个。
指UNICODE字符集,Chinese_PRC_指针对中国简体字UNICODE的排序规则。
虽然是中文的编码格式,但是导出依然有问题。
期待以后都通用中文编码格式,免得各种格式错误。
