MySQL 搭建MHA架构部署的步骤
目前MHA主要支持一主多从的架构，要搭建MHA，要求一个复制集群必须最少有3台数据库服务器，一主二从，即一台充当Master ,一台充当备用Master，另一台充当从库。出于成本考虑，淘宝在此基础上进行了改造，目前淘宝开发的 TMHA 已经支持一主一从。
三：MHA工作原理1.从宕机崩溃的 Master保存二进制日志事件(binlog event) ;
2.识别含有最新更新的Slave;
3.应用差异的中继日志(relay log)到其他Slave;
4.应用从 Master 保存的二进制日志事件;
5.提升—个 Slave为新的Master;
6.使其他的 Slave 连接新的 Master 进行复制;
四：MHA的组成 Manager工具包 Node工具包1：Manager工具包
masterha_check_ssh:检查MHA的 SSH配置情况 masterha_check_repl:检查MySQL复制状况 masterha_manager:启动MHA masterha_check_status:检测当前MHA运行状态 masterha_master_monitor:检测Master是否宕机 masterha_master_switch:控制故障转移(自动或手动) masterha_conf_host:添加或删除配置的server 信息2：Node工具包
通常由MHA Manager的脚本触发，无需人工操作
save_binary_logs:保存和复制Master 的 binlog日志 apply_diff_relay_logs:识别差异的中级日志时间并将其应用到其他 Slave filter_mysqlbinlog:去除不必要的ROOLBACK事件（已经废弃) purge_relay_logs:清除中继日志（不阻塞SQL线程)五：MHA 特点 自动故障切换过程中，MHA试图从宕机的主服务器上保存进制日志,最大程度的保证数据不丢失 使用半同步复制，可以大大降低数据丢失的风险 目前MHA支持一主多从架构，最少三台服务，即一主两从MHA 架构部署一：拓扑图
MySQL 版本使用 5.6.36、cmake 版本使用 2.8.6
1：安装编译依赖的环境
[root@master ~]# yum -y install ncurses-devel gcc-c++ perl-Module-Install
2.：安装 gmake 编译软件
[root@master ~]# tar zxvf cmake-2.8.6.tar.gz[root@master ~]# cd cmake-2.8.6[root@master cmake-2.8.6]# ./configure[root@master cmake-2.8.6]# gmake && gmake install
3：安装 MySQL 数据库
[root@master ~]# tar -zxvf mysql-5.6.36.tar.gz[root@master ~]# cd mysql-5.6.36[root@master mysql-5.6.36]# cmake -DCMAKE_INSTALL_PREFIX=/usr/local/mysql -DDEFAULT_CHARSET=utf8 -DDEFAULT_COLLATION=utf8_general_ci -DWITH_EXTRA_CHARSETS=all -DSYSCONFDIR=/etc[root@master mysql-5.6.36]# make && make install[root@master mysql-5.6.36]# cp support-files/my-default.cnf /etc/my.cnf[root@master mysql-5.6.36]# cp support-files/mysql.server /etc/rc.d/init.d/mysqld[root@master ~]# chmod +x /etc/rc.d/init.d/mysqld[root@master ~]# chkconfig --add mysqld[root@master ~]# echo 'PATH=$PATH:/usr/local/mysql/bin' >> /etc/profile[root@master ~]# source /etc/profilechown -R mysql.mysql /usr/local/mysql groupadd mysql[root@master ~]# useradd -M -s /sbin/nologin mysql -g mysql[root@master ~]# chown -R mysql.mysql /usr/local/mysql[root@master ~]# mkdir -p /data/mysql[root@master ~]# /usr/local/mysql/scripts/mysql_install_db --basedir=/usr/local/mysql --datadir=/usr/local/mysql/data --user=mysql
4：修改 Master 的主配置文件/etc/my.cnf 文件
将原来配置全部删除
[root@master ~]# vi /etc/my.cnf[client]port = 3306socket = /usr/local/mysql/mysql.sock[mysql]port = 3306socket = /usr/local/mysql/mysql.sock[mysqld]user = mysqlbasedir = /usr/local/mysqldatadir = /usr/local/mysql/dataport = 3306pid-file = /usr/local/mysql/mysqld.pidsocket = /usr/local/mysql/mysql.sockserver-id = 1log_bin = master-binlog-slave-updates = truesql_mode=NO_ENGINE_SUBSTITUTION,STRICT_TRANS_TABLES,NO_AUTO_CREATE_USER,NO_AUTO_VALUE_ON_ZERO,NO_ZERO_IN_DATE,NO_ZERO_DATE,ERROR_FOR_DIVISION_BY_ZERO,PIPES_AS_CONCAT,ANSI_QUOTES
另外两台 slave 数据库
三台服务器的 server-id 不能一样，其余一样正常写入
server-id = 2log_bin = master-binrelay-log = relay-log-bin relay-log-index = slave-relay-bin.index
server-id = 3log_bin = master-binrelay-log = relay-log-bin relay-log-index = slave-relay-bin.index
5：三台数据库分别做两个软链接，软链接是为 HMA 服务的
[root@master ~]# ln -s /usr/local/mysql/bin/mysql /usr/sbin/[root@master ~]# ln -s /usr/local/mysql/bin/mysqlbinlog /usr/sbin/
6：三台数据库启动 MySQL
[root@master ~]# /usr/local/mysql/bin/mysqld_safe --user=mysql &[root@master ~]# service mysqld restart Shutting down MySQL.. SUCCESS! Starting MySQL. SUCCESS!三：数据库配置主从同步
登录数据库
[root@master ~]# mysql
1：在所有数据库节点上授权两个用户，一个是从库同步使用，另外一个是 manager 使用
mysql> grant replication slave on *.* to ’myslave’@’20.0.0.%’ identified by ’123’;mysql> grant all privileges on *.* to ’mha’@’20.0.0.%’ identified by ’manager’;mysql> flush privileges;
2：下面三条授权按理论是不用添加的，但是做案例实验环境时候通过 MHA 检查MySQL 主从有报错，报两个从库通过主机名连接不上主库，所以所有数据库加上下面的授权。
mysql> grant all privileges on *.* to ’mha’@’master’ identified by ’manager’;mysql> grant all privileges on *.* to ’mha’@’slave1’ identified by ’manager’;mysql> grant all privileges on *.* to ’mha’@’slave2’ identified by ’manager’;
3：在 master 主机上查看二进制文件和同步点
mysql> show master status;+-------------------+----------+--------------+------------------+-------------------+| File | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |+-------------------+----------+--------------+------------------+-------------------+| master-bin.000001 | 608 | | | |+-------------------+----------+--------------+------------------+-------------------+1 row in set (0.00 sec)
4：在 slave1 和 slave2 分别执行同步
mysql> change master to master_host=’20.0.0.10’,master_user=’myslave’,master_password=’123’,master_log_file=’master-bin.000001’,master_log_pos=608mysql> start slave;
5：查看 IO 和 SQL 线程都是 yes 代表同步是否正常
mysql> show slave statusG;*************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Host: 20.0.0.10 Master_User: myslave Master_Port: 3306 Connect_Retry: 60 Master_Log_File: master-bin.000001 Read_Master_Log_Pos: 608 Relay_Log_File: relay-log-bin.000002 Relay_Log_Pos: 284 Relay_Master_Log_File: master-bin.000001 Slave_IO_Running: Yes Slave_SQL_Running: Yes Replicate_Do_DB: Replicate_Ignore_DB:
必须设置两个从库为只读模式
mysql> set global read_only=1;
6：在 master 主库插入两条数据，测试是否同步
mysql> create database test_db;Query OK, 1 row affected (0.00 sec)mysql> use test_db;Database changedmysql> create table test(id int);Query OK, 0 rows affected (0.13 sec)mysql> insert into test(id) values (1);Query OK, 1 row affected (0.03 sec)
7：在两个从库分别查询如下所示说明主从同步正常
mysql> select * from test_db.test;+------+| id |+------+| 1 |+------+1 row in set (0.00 sec)四：安装 MHA 软件
1：所有服务器上都安装 MHA 依赖的环境，首先安装 epel 源（3+1）
[root@master ~]# cd /etc/yum.repos.d/[root@master yum.repos.d]# ll总用量 20drwxr-xr-x. 2 root root 187 10月 10 18:08 backup-rw-r--r--. 1 root root 1458 12月 28 23:07 CentOS7-Base-163.repo-rw-r--r--. 1 root root 951 12月 29 14:52 epel.repo-rw-r--r--. 1 root root 1050 11月 1 04:33 epel.repo.rpmnew-rw-r--r--. 1 root root 1149 11月 1 04:33 epel-testing.repo-rw-r--r--. 1 root root 228 10月 27 18:43 local.repo
三台数据库加上一台 mha-manager
[root@mha-manager ~]# yum install epel-release --nogpgcheck[root@mha-manager ~]# yum install -y perl-DBD-MySQL perl-Config-Tiny perl-Log-Dispatch perl-ParalExtUtils-CBuilder perl-ExtUtils-MakeMaker perl-CPAN
2：在所有服务器上必须先安装 node 组件 （3+1）
[root@mha-manager ~]# tar zxvf mha4mysql-node-0.57.tar.gz[root@mha-manager ~]# cd mha4mysql-node-0.57[root@mha-manager mha4mysql-node-0.57]# perl Makefile.PL[root@mha-manager mha4mysql-node-0.57]# make && make install
3：在 mha-manager 上安装 manager 组件
[root@mha-manager ~]# tar zxvf mha4mysql-manager-0.57.tar.gz [root@mha-manager ~]# cd mha4mysql-manager-0.57/[root@mha-manager mha4mysql-manager-0.57]# perl Makefile.PL[root@mha-manager mha4mysql-manager-0.57]# make && make install

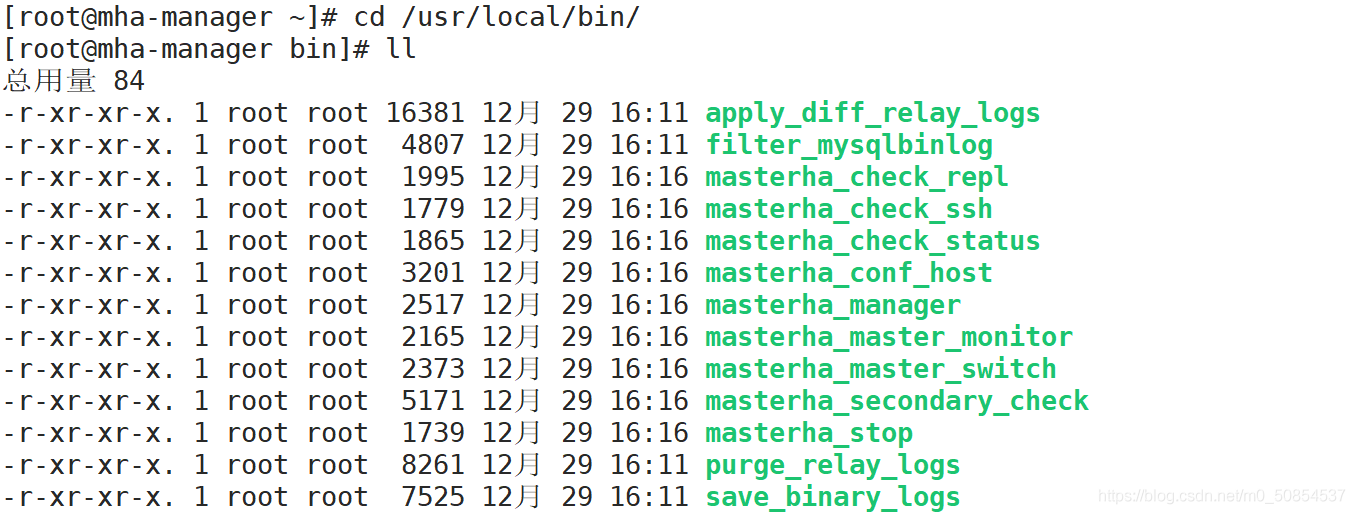

manager 安装后在/usr/local/bin 下面会生成几个工具
masterha_check_ssh 检查 MHA 的 SSH 配置状况masterha_check_repl 检查 MySQL 复制状况masterha_manger 启动 manager的脚本masterha_check_status 检测当前 MHA 运行状态masterha_master_monitor 检测 master 是否宕机masterha_master_switch 控制故障转移（自动或者手动）masterha_conf_host 添加或删除配置的 server 信息masterha_stop 关闭manager

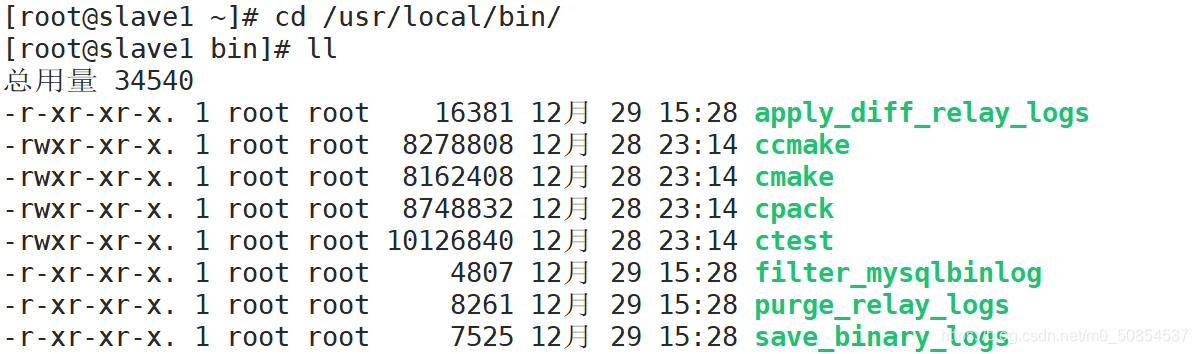

node 安装后也会在/usr/local/bin 下面会生成几个脚本
save_binary_logs 保存和复制 master 的二进制日志
apply_diff_relay_logs 识别差异的中继日志事件并将其差异的事件应用于其他的 slave
filter_mysqlbinlog 去除不必要的 ROLLBACK 事件（MHA 已不再使用这个工具）
purge_relay_logs 清除中继日志（不会阻塞 SQL 线程）
五：配置无密码认证1：在 manager 上配置到所有节点的无密码认证
（1）生成密钥
[root@mha-manager ~]# ssh-keygen -t rsa # 一直回车
（2）生成密钥之后发送给其他3个数据库
[root@mha-manager ~]# ssh-copy-id 20.0.0.10 # 输入：yes 密码：123456[root@mha-manager ~]# ssh-copy-id 20.0.0.11[root@mha-manager ~]# ssh-copy-id 20.0.0.12
（3）登录测试
[root@mha-manager ~]# ssh root@20.0.0.10Last login: Tue Dec 29 14:52:09 2020 from 20.0.0.1[root@master ~]# exit登出Connection to 20.0.0.10 closed.[root@mha-manager ~]# ssh root@20.0.0.11Last login: Tue Dec 29 13:20:07 2020 from 20.0.0.1[root@slave1 ~]# exit登出Connection to 20.0.0.11 closed.[root@mha-manager ~]# ssh root@20.0.0.12Last login: Tue Oct 27 19:45:24 2020 from 20.0.0.1[root@slave2 ~]# exit登出Connection to 20.0.0.12 closed.
2：在 master 上配置到数据库节点的无密码认证
（1）生成密钥
[root@master ~]# ssh-keygen -t rsa
（2）生成密钥之后发送给其他2个数据库
[root@master ~]# ssh-copy-id 20.0.0.11[root@master ~]# ssh-copy-id 20.0.0.12
（3）登录测试
[root@master ~]# ssh root@20.0.0.11Last login: Tue Dec 29 16:40:06 2020 from 20.0.0.13[root@slave1 ~]# exit登出Connection to 20.0.0.11 closed.[root@master ~]# ssh root@20.0.0.12Last login: Tue Oct 27 23:05:20 2020 from 20.0.0.13[root@slave2 ~]# exit登出Connection to 20.0.0.12 closed.
3：在 slave1 上配置到数据库节点的无密码认证
（1）生成密钥
[root@slave1 ~]# ssh-keygen -t rsa
（2）生成密钥之后发送给其他2个数据库
[root@slave1 ~]# ssh-copy-id 20.0.0.10[root@slave1 ~]# ssh-copy-id 20.0.0.12
（3）登录测试
[root@slave1 ~]# ssh root@20.0.0.10Last login: Tue Dec 29 16:39:55 2020 from 20.0.0.13[root@master ~]# exit登出Connection to 20.0.0.10 closed.[root@slave1 ~]# ssh root@20.0.0.12Last login: Tue Oct 27 23:14:06 2020 from 20.0.0.10[root@slave2 ~]# exit登出Connection to 20.0.0.12 closed.
4：在 slave2 上配置到数据库节点的无密码认证
（1）生成密钥
[root@slave2 ~]# ssh-keygen -t rsa
（2）生成密钥之后发送给其他2个数据库
[root@slave2 ~]# ssh-copy-id 20.0.0.10[root@slave2 ~]# ssh-copy-id 20.0.0.11
（3）登录测试
[root@slave2 ~]# ssh root@20.0.0.10Last login: Tue Dec 29 16:59:43 2020 from 20.0.0.11[root@master ~]# exit登出Connection to 20.0.0.10 closed.[root@slave2 ~]# ssh root@20.0.0.11Last login: Tue Dec 29 16:48:51 2020 from 20.0.0.10[root@slave1 ~]# exit登出Connection to 20.0.0.11 closed.六：配置 MHA
1：在 manager 节点上复制相关脚本到/usr/local/bin 目录
（1）拷贝
[root@mha-manager ~]# cp -ra /root/mha4mysql-manager-0.57/samples/scripts/ /usr/local/bin/

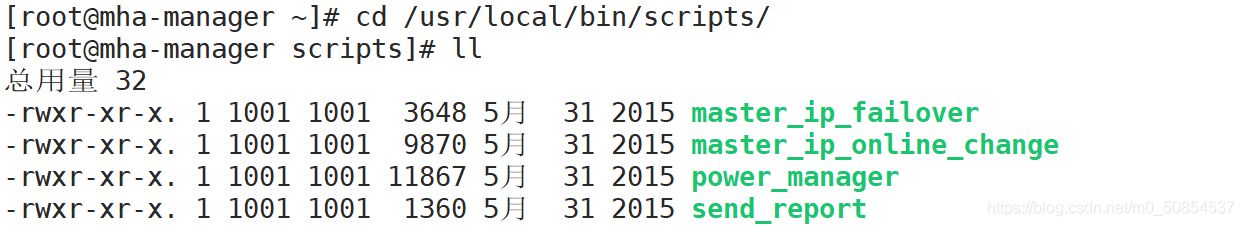

（2）拷贝后会有四个执行文件
master_ip_failover #自动切换时 VIP 管理的脚本
master_ip_online_change #在线切换时 vip 的管理
power_manager #故障发生后关闭主机的脚本
send_report #因故障切换后发送报警的脚本
（3）复制上述的自动切换时 VIP 管理的脚本到/usr/local/bin 目录，这里使用脚本管理 VIP
[root@mha-manager scripts]# cp master_ip_failover /usr/local/bin/[root@mha-manager scripts]# cd ..[root@mha-manager bin]# ll总用量 88
2：修改自动切换脚本
[root@mha-manager ~]# vi /usr/local/bin/master_ip_failover # 删除里面所有内容#!/usr/bin/env perluse strict;use warnings FATAL => ’all’;use Getopt::Long;my ($command, $ssh_user, $orig_master_host, $orig_master_ip,$orig_master_port, $new_master_host, $new_master_ip, $new_master_port);#############################添加内容部分#########################################my $vip = ’20.0.0.200’;my $brdc = ’20.0.0.255’;my $ifdev = ’ens33’;my $key = ’1’;my $ssh_start_vip = '/sbin/ifconfig ens33:$key $vip';my $ssh_stop_vip = '/sbin/ifconfig ens33:$key down';my $exit_code = 0;#my $ssh_start_vip = '/usr/sbin/ip addr add $vip/24 brd $brdc dev $ifdev label $ifdev:$key;/usr/sbin/arping -q -A -c 1 -I $ifdev $vip;iptables -F;';#my $ssh_stop_vip = '/usr/sbin/ip addr del $vip/24 dev $ifdev label $ifdev:$key';##################################################################################GetOptions(’command=s’ => $command,’ssh_user=s’ => $ssh_user,’orig_master_host=s’ => $orig_master_host,’orig_master_ip=s’ => $orig_master_ip,’orig_master_port=i’ => $orig_master_port,’new_master_host=s’ => $new_master_host,’new_master_ip=s’ => $new_master_ip,’new_master_port=i’ => $new_master_port,);exit &main();sub main {print 'nnIN SCRIPT TEST====$ssh_stop_vip==$ssh_start_vip===nn';if ( $command eq 'stop' || $command eq 'stopssh' ) {my $exit_code = 1;eval {print 'Disabling the VIP on old master: $orig_master_host n';&stop_vip();$exit_code = 0;};if ($@) {warn 'Got Error: $@n';exit $exit_code;}exit $exit_code;}elsif ( $command eq 'start' ) {my $exit_code = 10;eval {print 'Enabling the VIP - $vip on the new master - $new_master_host n';&start_vip();$exit_code = 0;};if ($@) {warn $@;exit $exit_code;}exit $exit_code;}elsif ( $command eq 'status' ) {print 'Checking the Status of the script.. OK n';exit 0;}else {&usage();exit 1;}}sub start_vip() {`ssh $ssh_user@$new_master_host ' $ssh_start_vip '`;}# A simple system call that disable the VIP on the old_mastersub stop_vip() {`ssh $ssh_user@$orig_master_host ' $ssh_stop_vip '`;}sub usage {print'Usage: master_ip_failover --command=start|stop|stopssh|status --orig_master_host=host --orig_master_ip=ip --orig_master_port=port --new_master_host=host --new_master_ip=ip --new_master_port=portn';}
3：创建 MHA 软件目录并拷贝配置文件
[root@mha-manager ~]# mkdir /etc/mha[root@mha-manager ~]# cp mha4mysql-manager-0.57/samples/conf/app1.cnf /etc/mha[root@mha-manager ~]# vi /etc/mha/app1.cnf[server default]manager_workdir=/var/log/masterha/app1manager_log=/var/log/masterha/app1/manager.logmaster_binlog_dir=/usr/local/mysql/datamaster_ip_failover_script=/usr/local/bin/master_ip_failovermaster_ip_online_change_script=/usr/local/bin/master_ip_online_changepassword=manageruser=mhaping_interval=1remote_workdir=/tmprepl_password=123repl_user=myslavesecondary_check_script=/usr/local/bin/masterha_secondary_check -s 20.0.0.11 -s 20.0.0.12shutdown_script=''ssh_user=root[server1]hostname=20.0.0.10port=3306[server2]hostname=20.0.0.11port=3306candidate_master=1check_repl_delay=0[server3]hostname=20.0.0.12port=3306七：健康检查
1：测试 ssh 无密码认证，如果正常最后会输出 successfully
[root@mha-manager ~]# masterha_check_ssh--conf=<server_config_file> must be set.[root@mha-manager ~]# masterha_check_ssh --conf=/etc/mha/app1.cnfTue Dec 29 20:19:16 2020 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.Tue Dec 29 20:19:16 2020 - [info] Reading application default configuration from /etc/mha/app1.cnf..Tue Dec 29 20:19:16 2020 - [info] Reading server configuration from /etc/mha/app1.cnf..Tue Dec 29 20:19:16 2020 - [info] Starting SSH connection tests..Tue Dec 29 20:19:17 2020 - [debug] Tue Dec 29 20:19:16 2020 - [debug] Connecting via SSH from root@20.0.0.10(20.0.0.10:22) to root@20.0.0.11(20.0.0.11:22)..Tue Dec 29 20:19:16 2020 - [debug] ok.Tue Dec 29 20:19:16 2020 - [debug] Connecting via SSH from root@20.0.0.10(20.0.0.10:22) to root@20.0.0.12(20.0.0.12:22)..Tue Dec 29 20:19:17 2020 - [debug] ok.Tue Dec 29 20:19:18 2020 - [debug] Tue Dec 29 20:19:17 2020 - [debug] Connecting via SSH from root@20.0.0.12(20.0.0.12:22) to root@20.0.0.10(20.0.0.10:22)..Tue Dec 29 20:19:17 2020 - [debug] ok.Tue Dec 29 20:19:17 2020 - [debug] Connecting via SSH from root@20.0.0.12(20.0.0.12:22) to root@20.0.0.11(20.0.0.11:22)..Tue Dec 29 20:19:18 2020 - [debug] ok.Tue Dec 29 20:19:18 2020 - [debug] Tue Dec 29 20:19:16 2020 - [debug] Connecting via SSH from root@20.0.0.11(20.0.0.11:22) to root@20.0.0.10(20.0.0.10:22)..Tue Dec 29 20:19:17 2020 - [debug] ok.Tue Dec 29 20:19:17 2020 - [debug] Connecting via SSH from root@20.0.0.11(20.0.0.11:22) to root@20.0.0.12(20.0.0.12:22)..Tue Dec 29 20:19:17 2020 - [debug] ok.Tue Dec 29 20:19:18 2020 - [info] All SSH connection tests passed successfully.
2：测试 MySQL 主从连接情况，最后出现 MySQL Replication Health is OK 字样说明
[root@mha-manager ~]# masterha_check_repl --conf=/etc/mha/app1.cnfTue Dec 29 20:30:29 2020 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping.Tue Dec 29 20:30:29 2020 - [info] Reading application default configuration from /etc/mha/app1.cnf..Tue Dec 29 20:30:29 2020 - [info] Reading server configuration from /etc/mha/app1.cnf..Tue Dec 29 20:30:29 2020 - [info] MHA::MasterMonitor version 0.57.Tue Dec 29 20:30:30 2020 - [info] GTID failover mode = 0Tue Dec 29 20:30:30 2020 - [info] Dead Servers:Tue Dec 29 20:30:30 2020 - [info] Alive Servers:Tue Dec 29 20:30:30 2020 - [info] 20.0.0.10(20.0.0.10:3306)Tue Dec 29 20:30:30 2020 - [info] 20.0.0.11(20.0.0.11:3306)Tue Dec 29 20:30:30 2020 - [info] 20.0.0.12(20.0.0.12:3306)Tue Dec 29 20:30:30 2020 - [info] Alive Slaves:Tue Dec 29 20:30:30 2020 - [info] 20.0.0.11(20.0.0.11:3306) Version=5.6.36-log (oldest major version between slaves) log-bin:enabled.......省略Checking the Status of the script.. OK Tue Dec 29 20:30:55 2020 - [info] OK.Tue Dec 29 20:30:55 2020 - [warning] shutdown_script is not defined.Tue Dec 29 20:30:55 2020 - [info] Got exit code 0 (Not master dead).MySQL Replication Health is OK.八：查看 master1 的 VIP 地址
查看 20.0.0.200 是否存在
这个 VIP 地址不会因为manager 节点停止 MHA 服务而消失
第一次启动mha，主库上并不会主动的生成vip地址，需要手动开启
[root@master ~]# ifconfig ens33:1 20.0.0.200/24 up[root@master ~]# ip addr2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000 link/ether 00:0c:29:8d:e2:af brd ff:ff:ff:ff:ff:ff inet 20.0.0.10/24 brd 20.0.0.255 scope global ens33 valid_lft forever preferred_lft forever inet 20.0.0.200/24 brd 20.0.0.255 scope global secondary ens33:1 valid_lft forever preferred_lft forever inet6 fe80::a6c1:f3d4:160:102a/64 scope link valid_lft forever preferred_lft forever九：启动 MHA 并查看状态
[root@mha-manager ~]# nohup masterha_manager --conf=/etc/mha/app1.cnf --remove_dead_master_conf --ignore_last_failover < /dev/null > /var/log/masterha/app1/manager.log 2>&1 &[1] 57152[root@mha-manager ~]# masterha_check_status --conf=/etc/mha/app1.cnfapp1 (pid:57152) is running(0:PING_OK), master:20.0.0.10故障模拟与修复一：故障模拟
1：将 master 主服务器 down 掉
[root@master ~]# pkill mysqld
2：查看日志信息
[root@mha-manager ~]# cat /var/log/masterha/app1/manager.logmaster 20.0.0.10(20.0.0.10:3306) is down! # 20.0.0.10 以停掉Check MHA Manager logs at mha-manager:/var/log/masterha/app1/manager.log for details.Started automated(non-interactive) failover.Invalidated master IP address on 20.0.0.10(20.0.0.10:3306)The latest slave 20.0.0.11(20.0.0.11:3306) has all relay logs for recovery.Selected 20.0.0.11(20.0.0.11:3306) as a new master. # 20.0.0.11 成为主服务器20.0.0.11(20.0.0.11:3306): OK: Applying all logs succeeded.20.0.0.11(20.0.0.11:3306): OK: Activated master IP address.20.0.0.12(20.0.0.12:3306): This host has the latest relay log events.Generating relay diff files from the latest slave succeeded.
3：查看虚拟地址
虚拟地址已到 20.0.0.11 上面
[root@slave1 ~]# ip addr2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000 link/ether 00:0c:29:49:77:39 brd ff:ff:ff:ff:ff:ff inet 20.0.0.11/24 brd 20.0.0.255 scope global ens33 valid_lft forever preferred_lft forever inet 20.0.0.200/8 brd 20.255.255.255 scope global ens33:1 valid_lft forever preferred_lft forever inet6 fe80::5cbb:1621:4281:3b24/64 scope link valid_lft forever preferred_lft forever
4：查看主从状态
查看主服务器的二进制文件
[root@slave1 ~]# mysqlmysql> show master status;+-------------------+----------+--------------+------------------+-------------------+| File | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |+-------------------+----------+--------------+------------------+-------------------+| master-bin.000003 | 120 | | | |+-------------------+----------+--------------+------------------+-------------------+1 row in set (0.00 sec)
查看从2的状态
[root@slave2 ~]# mysqlmysql> show slave statusG;*************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Host: 20.0.0.11 Master_User: myslave Master_Port: 3306 Connect_Retry: 60 Master_Log_File: master-bin.000003 Read_Master_Log_Pos: 120 Relay_Log_File: relay-log-bin.000002 Relay_Log_Pos: 284 Relay_Master_Log_File: master-bin.000003 Slave_IO_Running: Yes Slave_SQL_Running: Yes Replicate_Do_DB: Replicate_Ignore_DB: 二：故障修复
1：开启 down 掉的数据库
[root@master ~]# systemctl start mysqld[root@master ~]# systemctl status mysqld● mysqld.service - LSB: start and stop MySQL Loaded: loaded (/etc/rc.d/init.d/mysqld; bad; vendor preset: disabled) Active: active (running) since 二 2020-12-29 21:50:03 CST; 25s ago Docs: man:systemd-sysv-generator(8) Process: 977 ExecStart=/etc/rc.d/init.d/mysqld start (code=exited, status=0/SUCCESS) CGroup: /system.slice/mysqld.service ├─1026 /bin/sh /usr/local/mysql/bin/mysqld_safe --datadir=/usr/local/mysql/data --pid-fi... └─1358 /usr/local/mysql/bin/mysqld --basedir=/usr/local/mysql --datadir=/usr/local/m
2：down 掉的数据库进行主从复制
主从复制
[root@master ~]# mysqlmysql> change master to master_host=’20.0.0.11’,master_user=’myslave’,master_password=’123’,master_log_file=’master-bin.000003’,master_log_pos=120; Query OK, 0 rows affected, 2 warnings (0.01 sec)# 20.0.0.11 是主服务器 down 掉之后成为的主服务器mysql> start slave;Query OK, 0 rows affected (0.01 sec)
查看状态
mysql> show slave statusG;*************************** 1. row *************************** Slave_IO_State: Waiting for master to send event Master_Host: 20.0.0.11 Master_User: myslave Master_Port: 3306 Connect_Retry: 60 Master_Log_File: master-bin.000003 Read_Master_Log_Pos: 120 Relay_Log_File: mysqld-relay-bin.000002 Relay_Log_Pos: 284 Relay_Master_Log_File: master-bin.000003 Slave_IO_Running: Yes Slave_SQL_Running: Yes Replicate_Do_DB: Replicate_Ignore_DB:
3：修改 mha 配置文件
[root@mha-manager ~]# vi /etc/mha/app1.cnfsecondary_check_script=/usr/local/bin/masterha_secondary_check -s 20.0.0.10 -s 20.0.0.12# 由于 20.0.0.11 成为主服务器，所以要添加 20.0.0.10 和 20.0.0.12 为从服务器[server1]hostname=20.0.0.10candidate_master=1check_repl_delay=0port=3306[server2]hostname=20.0.0.11port=3306# 由于 20.0.0.10 down 掉，所以 server1 文件自动删除，重新添加 server1，并设为备选主服务器，server2 修改
4：进入数据库重新授权
[root@master ~]# mysqlmysql> grant all privileges on *.* to ’mha’@’master’ identified by ’manager’;Query OK, 0 rows affected (0.00 sec)mysql> flush privileges;Query OK, 0 rows affected (0.00 sec)
5：再次启动 mha
[root@mha-manager ~]# nohup masterha_manager --conf=/etc/mha/app1.cnf --remove_dead_master_conf --ignore_last_failover < /dev/null > /var/log/masterha/app1/manager.log 2>&1 &[1] 58927[root@mha-manager ~]# masterha_check_status --conf=/etc/mha/app1.cnfapp1 (pid:58927) is running(0:PING_OK), master:20.0.0.11
6：再次查看日志
[root@mha-manager ~]# cat /var/log/masterha/app1/manager.log......Tue Dec 29 22:16:53 2020 - [info] Dead Servers: # 停掉的服务Tue Dec 29 22:16:53 2020 - [info] Alive Servers: # 存活的服务Tue Dec 29 22:16:53 2020 - [info] 20.0.0.10(20.0.0.10:3306)Tue Dec 29 22:16:53 2020 - [info] 20.0.0.11(20.0.0.11:3306)Tue Dec 29 22:16:53 2020 - [info] 20.0.0.12(20.0.0.12:3306).......
7：主数据库写入数据同步并查看
其他数据库都可以查到
mysql> create database ooo;Query OK, 1 row affected (0.00 sec)mysql> show databases;+--------------------+| Database |+--------------------+| information_schema || mysql || ooo || performance_schema || test || test_db |+--------------------+6 rows in set (0.00 sec)
