kubernetes集群搭建Zabbix监控平台的详细过程

更多 QQ空间微信 QQ好友腾讯朋友复制链接

【字号：大中小】日期：2023-04-06 15:09:23浏览：63作者：猪猪

一、zabbix介绍

1.zabbix简介

Zabbix是一个基于Web界面的分布式系统监控的企业级开源软件。可以监视各种系统与设备的参数，保障服务器及设备的安全运营。

2.zabbix特点

（1）安装与配置简单。
（2）可视化web管理界面。
（3）免费开源。
（4）支持中文。
（5）自动发现。
（6）分布式监控。
（7）实时绘图。

3.zabbix的主要功能

1.硬件监控。如交换机、路由器、打印机等。
2.系统监控。如CPU,内存，磁盘。硬盘IO，系统负载等。
3.服务监控。如apache,nginx,tomcat,redis,TCP连接数等。
4.性能监控。如网站性能，服务器性能，数据库性能。
5.日志监控。如访问日志，错误日志。
6.安全监控。如用户登录数，本地文件改动，passwd文件变化。
7.网络监控。如端口，SMTP,网络使用率，网络入流量，网络出流量。

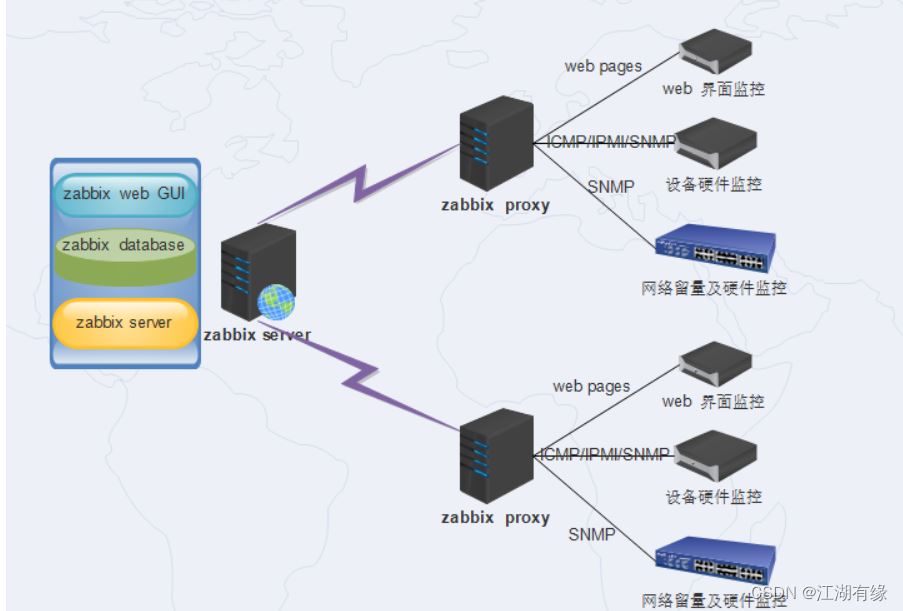

4.zabbix架构图

二、检查本地k8s环境

1.检查系统pod运行状态

[root@k8s-master ~]# kubectl get pods -ANAMESPACE     NAME       READY   STATUS    RESTARTSAGEkube-system   calico-kube-controllers-7bc6547ffb-2nf66   1/1     Running   1 (9m28s ago)   2d16hkube-system   calico-node-8c4pn  1/1     Running   1 (9m16s ago)   2d16hkube-system   calico-node-f28qq  1/1     Running   1 (9m10s ago)   2d16hkube-system   calico-node-wmc2j  1/1     Running   1 (9m29s ago)   2d16hkube-system   coredns-6d8c4cb4d-6gm4x    1/1     Running   1 (9m28s ago)   2d16hkube-system   coredns-6d8c4cb4d-7vxlz    1/1     Running   1 (9m29s ago)   2d16hkube-system   etcd-k8s-master    1/1     Running   1 (9m30s ago)   2d16hkube-system   kube-apiserver-k8s-master  1/1     Running   1 (9m29s ago)   2d16hkube-system   kube-controller-manager-k8s-master 1/1     Running   1 (9m30s ago)   2d16hkube-system   kube-proxy-8dfw8   1/1     Running   1 (9m29s ago)   2d16hkube-system   kube-proxy-ghzrv   1/1     Running   1 (9m9s ago)    2d16hkube-system   kube-proxy-j867z   1/1     Running   1 (9m15s ago)   2d16hkube-system   kube-scheduler-k8s-master  1/1     Running   1 (9m28s ago)   2d16h

2.检查node节点状态

[root@k8s-master ~]# kubectl get nodes -owideNAME STATUS   ROLES  AGE     VERSION   INTERNAL-IP     EXTERNAL-IP   OS-IMAGEKERNEL-VERSION  CONTAINER-RUNTIMEk8s-master   Ready    control-plane,master   2d16h   v1.23.1   192.168.3.201   <none>CentOS Linux 7 (Core)   3.10.0-957.el7.x86_64   containerd://1.6.6k8s-node01   Ready    <none> 2d16h   v1.23.1   192.168.3.202   <none>CentOS Linux 7 (Core)   3.10.0-957.el7.x86_64   containerd://1.6.6k8s-node02   Ready    <none> 2d16h   v1.23.1   192.168.3.203   <none>CentOS Linux 7 (Core)   3.10.0-957.el7.x86_64   containerd://1.6.6

三、配置nfs共享存储

1.安装nfs

 yum install -y nfs-utils

2.创建共享目录

mkdir -p /nfs/data

3.配置共享目录

echo "/nfs/data/ *(insecure,rw,sync,no_root_squash)" > /etc/exports

4.启动相关服务

systemctl enable rpcbindsystemctl enable nfs-serversystemctl start rpcbind

5.使配置生效

exportfs -r

6.查看nfs

[root@k8s-master ~]# exportfs/nfs/data     	<world>

7.其他节点检查nfs共享

[root@k8s-node01 ~]#  showmount -e 192.168.3.201Export list for 192.168.3.201:/nfs/data *

四、安装zabbix-mysql

1.编写zabbix-mysql的yaml文件

[root@k8s-master zabbix]# cat zabbix_mysql.yaml ---apiVersion: v1kind: PersistentVolumemetadata:  name: zabbixdb-pvspec:  capacity:   #创建存储的大小    storage: 10Gi  volumeMode: Filesystem  #存储的类型  accessModes:    - ReadWriteOnce  persistentVolumeReclaimPolicy: Recycle  nfs:    path: /nfs/data/zabbix    server: 192.168.3.201  mountOptions:    - hard    - nfsvers=4.1---apiVersion: v1kind: PersistentVolumeClaimmetadata:  name: zabbixdb-pvc  namespace: zabbixspec:  accessModes:    - ReadWriteOnce  volumeMode: Filesystem   #存储类型 ，块存储Block  resources:    requests:      storage: 8Gi---apiVersion: apps/v1kind: Deploymentmetadata:  labels:    app: zabbixdb  name: zabbixdb  namespace: zabbixspec:  replicas: 1  selector:    matchLabels:      app: zabbixdb  strategy: {}  template:    metadata:      labels:app: zabbixdb    spec:      volumes:      - name: zabbixdb-datapersistentVolumeClaim:  claimName: zabbixdb-pvc      containers:      - image: mysql:8.0name: mysqlports:- name: mysql  containerPort: 3306  protocol: TCPvolumeMounts:- name: zabbixdb-data  mountPath: /var/lib/mysqlenv:- name: MYSQL_DATABASE  value: "zabbix"- name: MYSQL_USER  value: "zabbix"- name: MYSQL_PASSWORD  value: "zabbix"- name: MYSQL_ROOT_PASSWORD  value: "zabbix"resources:   requests:     cpu: 0.1     memory: 128Mi  limits:     cpu: 0.3     memory:  512Mi---  apiVersion: v1kind: Servicemetadata:  creationTimestamp: null  labels:    app: zabbixdb  name: zabbixdb  namespace: zabbixspec:  clusterIP: 10.96.1.99  ports:  - name: 3306-3306    port: 3306    protocol: TCP    targetPort: 3306  selector:    app: zabbixdb  type: ClusterIPstatus:  loadBalancer: {}

2.创建命名空间

[root@k8s-master zabbix]# kubectl create namespace zabbixnamespace/zabbix created

3.创建zabbix数据库

kubectl apply -f zabbix_mysql.yaml

4.检查pod状态

[root@k8s-master zabbix]# kubectl get pods -n zabbix NAMEREADY   STATUS    RESTARTS   AGEzabbixdb-69b7cd8dff-jnpjd   1/1     Running   0  11m

五、检查zabbix数据库的service域名

1.运行测试pod

[root@k8s-master ~]# kubectl run busybox --image=busybox:1.28 -- sleep 3600pod/busybox created

2.进入busybox的pod

[root@k8s-master ~]# kubectl exec -it busybox -- /bin/sh/ #

3.查看域名解析

[root@k8s-master ~]# kubectl exec -it busybox -- /bin/sh/ # nslookup zabbixdb.zabbix.svc.cluster.localServer:    10.96.0.10Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.localName:      zabbixdb.zabbix.svc.cluster.localAddress 1: 10.96.1.99 zabbixdb.zabbix.svc.cluster.local/ #

六、安装zabbix-server

1.编写zabbix_server.yaml文件

[root@k8s-master zabbix]# cat zabbix_server.yaml apiVersion: apps/v1kind: Deploymentmetadata:  creationTimestamp: null  labels:    app: zabbix-server  name: zabbix-server  namespace: zabbixspec:  replicas: 1  selector:    matchLabels:      app: zabbix-server  strategy: {}  template:    metadata:      creationTimestamp: null      labels:app: zabbix-server    spec:      volumes:      - name: zabbix-scriptshostPath:  path: /usr/lib/zabbix/      - name: zabbix-filehostPath:  path: /var/lib/zabbix       nodeSelector:zabbix-server: "true"      hostNetwork: true      containers:      - image: zabbix/zabbix-server-mysql:6.0-ubuntu-latestname: zabbix-server-mysqlenv:- name: DB_SERVER_HOST  value:  10.96.1.99- name: MYSQL_USER  value: zabbix- name: MYSQL_PASSWORD  value: zabbixresources: {}status: {}

2.给node02节点打上标签

[root@k8s-master zabbix]# kubectl label nodes k8s-node02  zabbix-server=truenode/k8s-node02 labeled

3.安装zabbix-server

[root@k8s-master zabbix]# kubectl apply -f zabbix_server.yaml deployment.apps/zabbix-server created

4.检查pod状态

[root@k8s-master zabbix]# kubectl get pods -n zabbixNAME     READY   STATUS    RESTARTS   AGEzabbix-server-5f48d9d57d-rkr5p   1/1     Running   0  66szabbixdb-69b7cd8dff-krt2w1/1     Running   0  4m22s

七、部署zabbix-web

1.编写zabbix_web.yaml文件

[root@k8s-master zabbix]# cat zabbix_web.yaml apiVersion: apps/v1kind: Deploymentmetadata:  creationTimestamp: null  labels:    app: zabbix-web  name: zabbix-web  namespace: zabbixspec:  replicas: 1  selector:    matchLabels:      app: zabbix-web  strategy: {}  template:    metadata:      creationTimestamp: null      labels:app: zabbix-web    spec:      containers:      - image: zabbix/zabbix-web-nginx-mysql:6.0-ubuntu-latestname: zabbix-web-nginx-mysqlenv:- name: DB_SERVER_HOST  value: zabbixdb.zabbix.svc.cluster.local- name: MYSQL_USER  value: zabbix- name: MYSQL_PASSWORD  value: zabbix- name: ZBX_SERVER_HOST  value: 192.168.3.201- name: PHP_TZ  value: Asia/shanghairesources: {}status: {}---apiVersion: v1kind: Servicemetadata:  creationTimestamp: null  labels:    app: zabbix-web  name: zabbix-web  namespace: zabbixspec:  ports:  - name: 8080-8080    port: 8080    protocol: TCP    targetPort: 8080  selector:    app: zabbix-web  type: NodePortstatus:  loadBalancer: {}

2.安装zabbix-web

[root@k8s-master zabbix]# kubectl apply -f zabbix_web.yaml deployment.apps/zabbix-web createdservice/zabbix-web created

3.查看pod状态

[root@k8s-master zabbix]# kubectl get pods -n zabbixNAME     READY   STATUS    RESTARTS   AGEzabbix-server-5f48d9d57d-rkr5p   1/1     Running   0  2m36szabbix-web-55cd66f74f-9f284      1/1     Running   0  18szabbixdb-69b7cd8dff-krt2w1/1     Running   0  5m52s

八、部署zabbix-agent

1.编辑zabbix_agent.yaml

[root@k8s-master zabbix]# cat zabbix_agent.yaml apiVersion: apps/v1kind: DaemonSetmetadata:  labels:    app: zabbix-agent  name: zabbix-agent  namespace: zabbixspec:  selector:    matchLabels:      app: zabbix-agent  template:    metadata:      creationTimestamp: null      labels:app: zabbix-agent    spec:      hostNetwork: true      containers:      - image: zabbix/zabbix-agent:6.0-ubuntu-latestname: zabbix-agentenv:- name: ZBX_SERVER_HOST  value: 192.168.3.201resources: {}

2.安装zabbix-agent

 kubectl apply -f zabbix_agent.yaml

3.查看pod状态

[root@k8s-master zabbix]# kubectl get pods -n zabbixNAME     READY   STATUS    RESTARTS   AGEzabbix-agent-h2qwf       1/1     Running   0  3szabbix-agent-plnbd       1/1     Running   0  3szabbix-server-5f48d9d57d-rkr5p   1/1     Running   0  3m2szabbix-web-55cd66f74f-9f284      1/1     Running   0  44szabbixdb-69b7cd8dff-krt2w1/1     Running   0  6m18s

九、访问zabbix的web

1.查看svc

[root@k8s-master zabbix]#  kubectl get svc -n zabbix NAME TYPECLUSTER-IP    EXTERNAL-IP   PORT(S)  AGEzabbix-web   NodePort    10.100.50.7   <none>8080:30775/TCP   59szabbixdb     ClusterIP   10.96.1.99    <none>3306/TCP 6m33s

2.登录web

http://192.168.3.202:30775

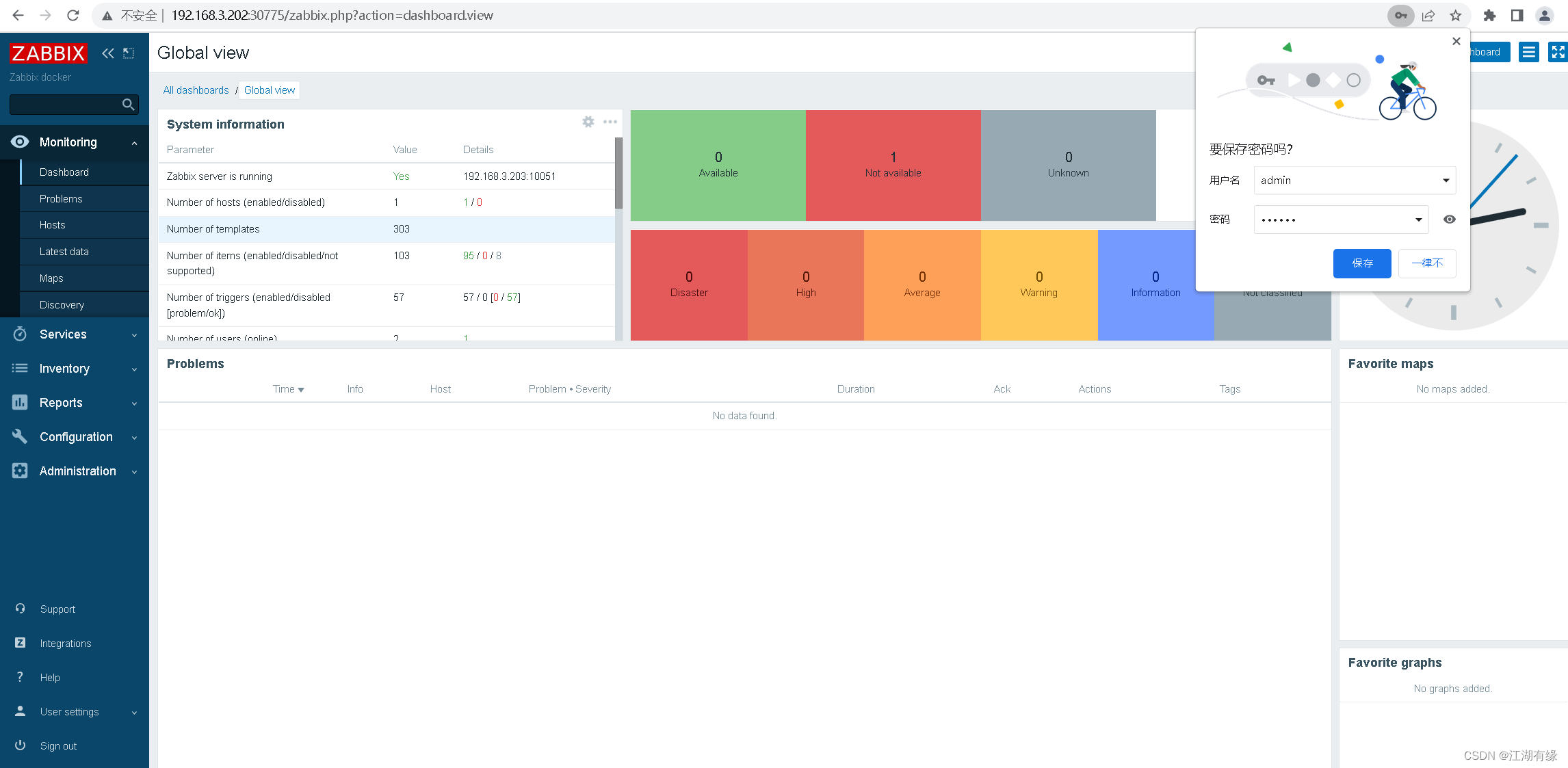

3.登录zabbix

初始账号admin/zabbix

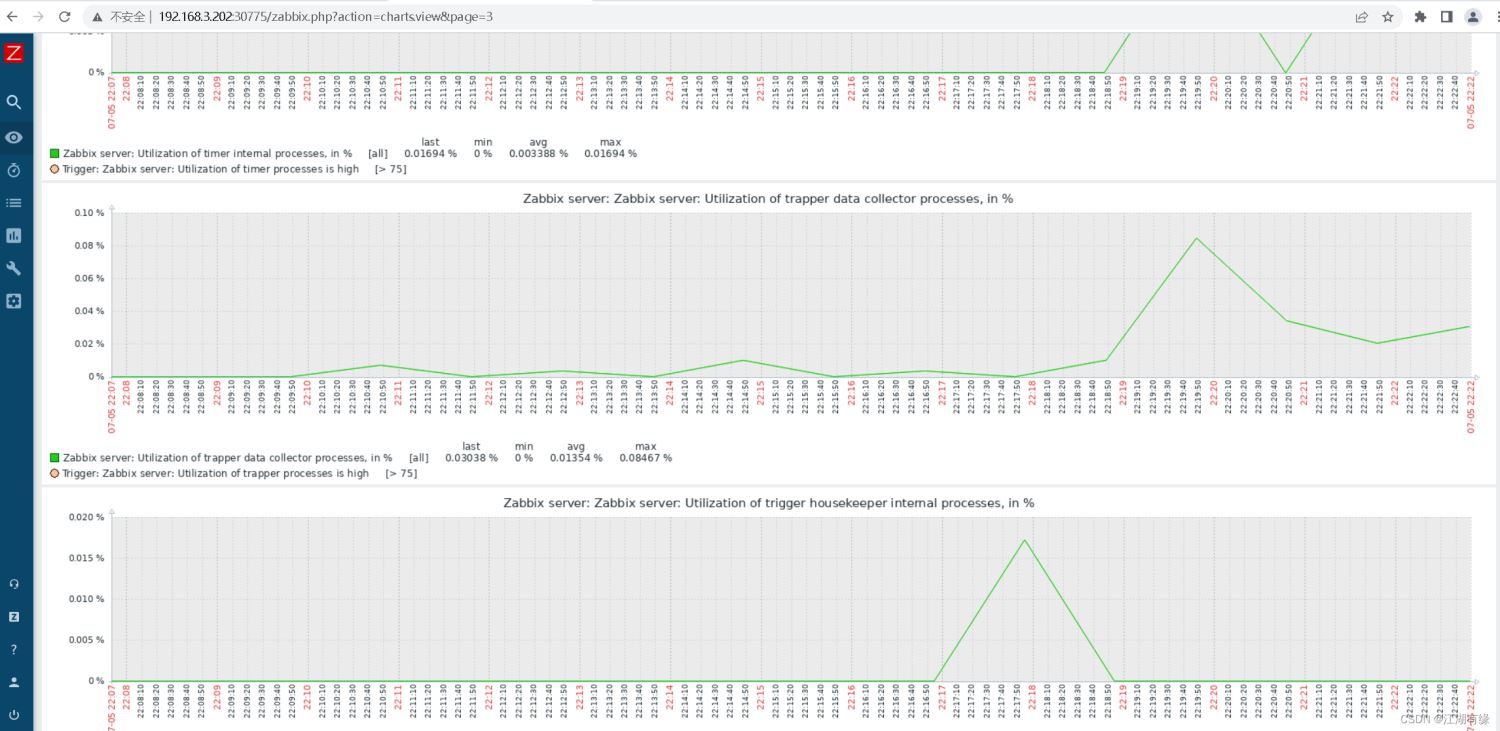

4.查询zabbix-server的监控项图表

到此这篇关于kubernetes集群搭建Zabbix监控平台的文章就介绍到这了,更多相关kubernetes集群搭建Zabbix监控内容请搜索以前的文章或继续浏览下面的相关文章希望大家以后多多支持！
