利用apache ftpserver搭建ftp服务器的方法步骤

目录

• 操作环境：
• 一、usermanager采用文件形式管理xml示例如下
• 二、usermanager采用mysql数据库管理用户时，ftpd-mysql.xml示例如下
• 三、usermanager采用Sqlite数据库管理用户时，ftpd-sqlite.xml示例如下
• 四、解决ftpd.exe在64位windows系统启动失败的问题
• 五、python操作sqlite的ftp.db管理（增加删除）用户

操作环境：

• win2012r2 x64 datacenter
• Apache FtpServer 1.2.0
• Java SE Development Kit 8u333
• commons-dbcp2-2.9.0.jar
• commons-pool2-2.11.1.jar
• mysql server 8.0.29
• mysql-connector-java-8.0.29.jar
• sqlite
• sqlite-jdbc-3.36.0.3.jar

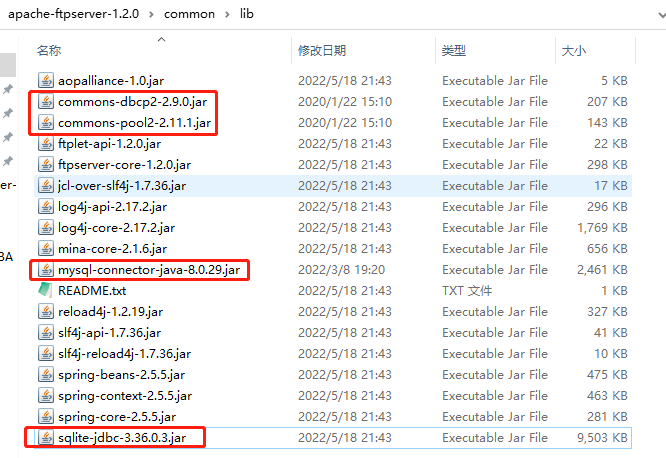

如下图：

一、usermanager采用文件形式管理xml示例如下

<?xml version="1.0" encoding="UTF-8"?>  <!--    Licensed to the Apache Software Foundation (ASF) under one or more    contributor license agreements. See the NOTICE file distributed with    this work for additional information regarding copyright ownership.    The ASF licenses this file to you under the Apache License, Version    2.0 (the "License"); you may not use this file except in compliance    with the License. You may obtain a copy of the License at    http://www.apache.org/licenses/LICENSE-2.0 Unless required by    applicable law or agreed to in writing, software distributed under the    License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR    CONDITIONS OF ANY KIND, either express or implied. See the License for    the specific language governing permissions and limitations under the    License.  --><server xmlns="http://mina.apache.org/ftpserver/spring/v1"  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"  xsi:schemaLocation="     http://mina.apache.org/ftpserver/spring/v1 https://mina.apache.org/ftpserver-project/ftpserver-1.0.xsd       "  id="myServer">  <listeners>    <nio-listener name="default" port="21"><ssl><keystore file="./res/ftpserver.jks" password="password" />    </ssl>    </nio-listener>  </listeners>  <file-user-manager file="./res/conf/users.properties" /></server>

二、usermanager采用mysql数据库管理用户时，ftpd-mysql.xml示例如下

目前数据库管理用户时采用的明文存储，salted和md5的方式没有测试成功，如有测试成功的朋友请指导一下。

<?xml version="1.0" encoding="UTF-8"?><!-- Licensed to the Apache Software Foundation (ASF) under one or more contributor     license agreements. See the NOTICE file distributed with this work for additional     information regarding copyright ownership. The ASF licenses this file to     you under the Apache License, Version 2.0 (the "License"); you may not use     this file except in compliance with the License. You may obtain a copy of     the License at http://www.apache.org/licenses/LICENSE-2.0 Unless required     by applicable law or agreed to in writing, software distributed under the     License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS     OF ANY KIND, either express or implied. See the License for the specific     language governing permissions and limitations under the License. --><server xmlns="http://mina.apache.org/ftpserver/spring/v1"    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:beans="http://www.springframework.org/schema/beans"    xsi:schemaLocation="   http://www.springframework.org/schema/beans   http://www.springframework.org/schema/beans/spring-beans-2.5.xsd   http://mina.apache.org/ftpserver/spring/v1   http://mina.apache.org/ftpserver/ftpserver-1.0.xsd   "    id="myServer">    <listeners><nio-listener name="default" port="21">    <ssl><keystore file="./res/ftpserver.jks" password="password" />    </ssl></nio-listener>    </listeners>    <db-user-manager encrypt-passwords="clear"><data-source>    <beans:bean><beans:property name="driverClassName" value="com.mysql.jdbc.Driver" /><beans:property name="url" value="jdbc:mysql://localhost/ftpserver" /><beans:property name="username" value="root" /><beans:property name="password" value="123456" />    </beans:bean></data-source><insert-user>INSERT INTO FTP_USER (userid, userpassword,    homedirectory, enableflag, writepermission, idletime, uploadrate,    downloadrate) VALUES ("{userid}", "{userpassword}",    "{homedirectory}",    {enableflag}, {writepermission}, {idletime},    {uploadrate},    {downloadrate})</insert-user><update-user>UPDATE FTP_USER SET    userpassword="{userpassword}",homedirectory="{homedirectory}",enableflag={enableflag},writepermission={writepermission},idletime={idletime},uploadrate={uploadrate},downloadrate={downloadrate}    WHERE userid="{userid}"</update-user><delete-user>DELETE FROM FTP_USER WHERE userid = "{userid}"</delete-user><select-user>SELECT userid, userpassword, homedirectory,    enableflag, writepermission, idletime, uploadrate, downloadrate,    maxloginnumber, maxloginperip FROM    FTP_USER WHERE userid = "{userid}"</select-user><select-all-users>    SELECT userid FROM FTP_USER ORDER BY userid</select-all-users><is-admin>SELECT userid FROM FTP_USER WHERE userid="{userid}"    AND    userid="admin"</is-admin><authenticate>SELECT userpassword from FTP_USER WHERE    userid="{userid}"</authenticate>    </db-user-manager></server>

注意：org.apache.commons.dbcp2.BasicDataSource，看最新的commons.dbcp命名空间和1.x版本有区别

三、usermanager采用Sqlite数据库管理用户时，ftpd-sqlite.xml示例如下

<?xml version="1.0" encoding="UTF-8"?><!-- Licensed to the Apache Software Foundation (ASF) under one or more contributor     license agreements. See the NOTICE file distributed with this work for additional     information regarding copyright ownership. The ASF licenses this file to     you under the Apache License, Version 2.0 (the "License"); you may not use     this file except in compliance with the License. You may obtain a copy of     the License at http://www.apache.org/licenses/LICENSE-2.0 Unless required     by applicable law or agreed to in writing, software distributed under the     License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS     OF ANY KIND, either express or implied. See the License for the specific     language governing permissions and limitations under the License. --><server xmlns="http://mina.apache.org/ftpserver/spring/v1"    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:beans="http://www.springframework.org/schema/beans"    xsi:schemaLocation="   http://www.springframework.org/schema/beans   http://www.springframework.org/schema/beans/spring-beans-2.5.xsd   http://mina.apache.org/ftpserver/spring/v1   http://mina.apache.org/ftpserver/ftpserver-1.0.xsd   "    id="myServer">    <listeners><nio-listener name="default" port="21">    <ssl><keystore file="./res/ftpserver.jks" password="password" />    </ssl></nio-listener>    </listeners>    <db-user-manager encrypt-passwords="clear"><data-source>    <beans:bean><beans:property name="driverClassName" value="org.sqlite.JDBC" /><beans:property name="url" value="jdbc:sqlite:ftp.db" />    </beans:bean></data-source><insert-user>INSERT INTO FTP_USER (userid, userpassword,    homedirectory, enableflag, writepermission, idletime, uploadrate,    downloadrate) VALUES ("{userid}", "{userpassword}",    "{homedirectory}",    {enableflag}, {writepermission}, {idletime},    {uploadrate},    {downloadrate})</insert-user><update-user>UPDATE FTP_USER SET    userpassword="{userpassword}",homedirectory="{homedirectory}",enableflag={enableflag},writepermission={writepermission},idletime={idletime},uploadrate={uploadrate},downloadrate={downloadrate}    WHERE userid="{userid}"</update-user><delete-user>DELETE FROM FTP_USER WHERE userid = "{userid}"</delete-user><select-user>SELECT userid, userpassword, homedirectory,    enableflag, writepermission, idletime, uploadrate, downloadrate,    maxloginnumber, maxloginperip FROM    FTP_USER WHERE userid = "{userid}"</select-user><select-all-users>    SELECT userid FROM FTP_USER ORDER BY userid</select-all-users><is-admin>SELECT userid FROM FTP_USER WHERE userid="{userid}"    AND    userid="admin"</is-admin><authenticate>SELECT userpassword from FTP_USER WHERE    userid="{userid}"</authenticate>    </db-user-manager></server>

注意：commons的jar包还保留着，多了个操作sqlitejdbc的jar包，下载地址：GitHub - xerial/sqlite-jdbc: SQLite JDBC Driver

四、解决ftpd.exe在64位windows系统启动失败的问题

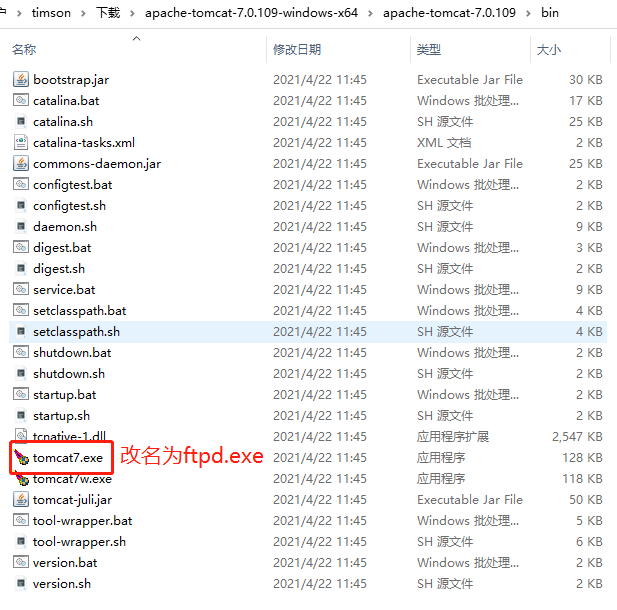

需下载tomcat包，目前测试的这个版本可行tomcat-7 v7.0.109 (apache.org)

放入apache ftpserver bin目录里替换原有的ftpd.exe

这样安装为服务的时候就可以正常启动了

五、python操作sqlite的ftp.db管理（增加删除）用户

自己搞了个python脚本，采用了sqlalchemy来操作数据库

from sqlalchemy import create_enginefrom sqlalchemy import MetaData,Table,Column,Boolean,Integer,Stringimport osengine=create_engine("sqlite:///ftp.db")conn=engine.connect()metadata=MetaData()ftpusers=Table("FTP_USER",metadata,    Column("userid",String(64),primary_key=True),    Column("userpassword",String(64),nullable=False),    Column("homedirectory",String(128),nullable=False),    Column("enableflag",Boolean(),default=True),    Column("writepermission",Boolean(),default=True),    Column("idletime",Integer(),default=0),    Column("uploadrate",Integer(),default=0),    Column("downloadrate",Integer(),default=0),    Column("maxloginnumber",Integer(),default=0),    Column("maxloginperip",Integer(),default=0))metadata.create_all(engine)def addgeneraluser():	deluser = ftpusers.delete().where(ftpusers.c.userid=="nic")	rs = conn.execute(deluser)	dirname="./files/alluser"	if not os.path.exists(dirname):		os.mkdir(dirname)	ins=ftpusers.insert().values(		userid="nic",		userpassword="123321",		homedirectory=dirname,		writepermission=0,		maxloginnumber=1	)	result=conn.execute(ins)def addadmin():	deladmin = ftpusers.delete().where(ftpusers.c.userid=="admin")	rs = conn.execute(deladmin)	ins=ftpusers.insert().values(		userid="admin",		userpassword="123456",		homedirectory="./files",		writepermission=1	)	result=conn.execute(ins)def getusers():	sel=ftpusers.select()	rs=conn.execute(sel)	print(rs.fetchall())	addgeneraluser()getusers()

可以方便的增加用户了，generaluser只读权限只能同时登录一个，admin权限可读写，不限制。
